100-600mm Cable Tray Roll Forming Machine; Steel Perforated Cable Tray Production Line

100-600mm Cable Tray Roll Forming Machine; Steel Perforated Cable Tray Production Line

    • 100-600mm Cable Tray Roll Forming Machine; Steel Perforated Cable Tray Production Line
    • 100-600mm Cable Tray Roll Forming Machine; Steel Perforated Cable Tray Production Line
    • 100-600mm Cable Tray Roll Forming Machine; Steel Perforated Cable Tray Production Line
  • 100-600mm Cable Tray Roll Forming Machine; Steel Perforated Cable Tray Production Line

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-CABLETRAY

    Payment & Shipping Terms:

    Packaging Details: Main machine part is nude packing with steel wire fastened inside of the container, electric and hydraulic parts are wrapped with plastic film
    Delivery Time: 75 to 90 days
    Payment Terms: 30% TT in advance, 70% TT before shipment after check and acceptance
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Machine Type: Cold Rollforming Machine Machine Application: Widely Used For Steel Structure Building Industry
    Cable Trays Size: 100-600mm Width, 35-100mm Height Widths Adjust: Automatic Adjust, Infinitely Adjustable
    Control System: PLC Control System With Touch Screen Operate Panel Machine Speed: 10-15m/min



    100-600mm Perforated Cable Tray Roll Forming Machine



    Description



    Cable trays are cold roll formed structural sections used to securely fasten or support electrical cables for power distribution, control and communication. Believe Industry Company design and manufacture cable tray roll forming machines for various types of cable trays: solid-bottom tray, ventilated tray, ladder tray and channel tray.

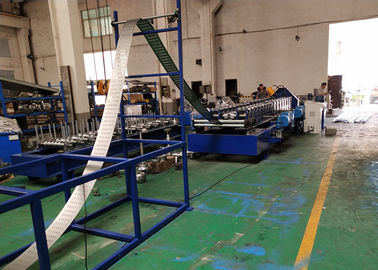

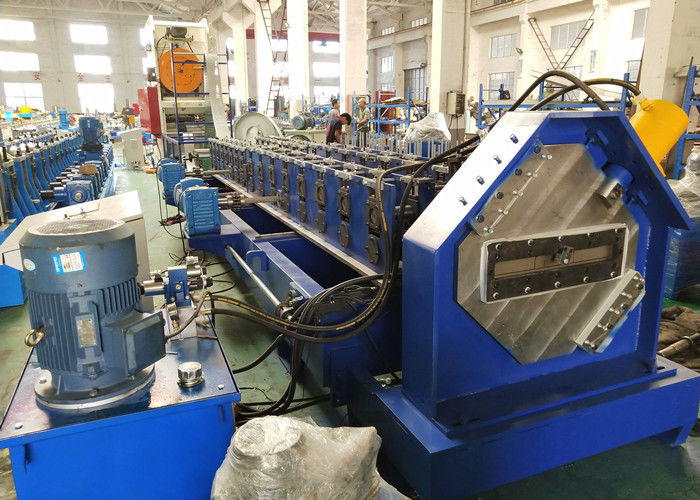

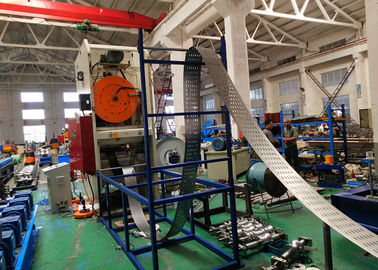

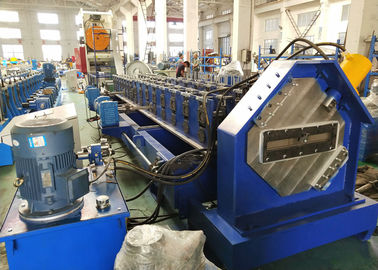

    This machine can be used to produce cable trays with 100-600mm width, 35-100mm height. Speed of whole production can reach up to max. 15m/min. Whole roll forming line consists of 5Ton hydraulic decoiler, levelling unit, punching press, roll forming unit, cutting device and run-out tables.



    100-600 Cable Tray Sizes

    No. Cable Tray Width (mm) Cable Tray Height (mm)
    1. 100 / 150 35 / 50 / 80 / 100
    2. 200 / 300 / 400 / 500 / 600 50 / 80 / 100





    Features

    • Can make a range of sizes, material thickness, punching hole patterns and profile features according to clients' requirement.
    • Sizes can be adjusted automatically, users only need to key in required size data on the touch screen.
    • No need to change cutting blades for each tray size.
    • Rollers go through vacuum heat treatment for great hardness.
    • High precision of punching, roll forming and cutting.





    Cable Tray Roll Forming Machine Work Videohttps://believeindustry.company/cable-tray-roll-forming-machine-working-video/





    Machine Layout And Work Process

    100-600mm Cable Tray Roll Forming Machine; Steel Perforated Cable Tray Production Line



    Work Process: decoiling-->levelling-->punching-->roll forming-->cutting





    Detailed Specification

    • Raw Materail Information
    1.  Material Can Be Roll Formed pre-galvanized steel coils / sheet; hot-dip galvanized steel coils / sheet
    2.  Material Thickness 0.6mm to 2.0mm
    3.  Material Strength 235-345Mpa
    • Technical Specification
    1.  Roll Forming Stations  16 stations
    2.  Main Motor Power  22kw
    3.  Forming Speed  10-15m/min
    4.  Control System  PLC control system
    5.  Drive System  electrically chain drive
    6.  Cutting System  hydraulically powered cutting
    7.  Cutting Length Tolerance  + / - 2mm per 6 meters; + / - 3mm per 10 meters
