Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use

Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use

    • Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use
    • Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use
    • Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use
    • Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use
  • Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Standard Seaworthy Packing
    Delivery Time: 60 to 90 days
    Payment Terms: 30% TT in advance, 70% TT before shipment
    Contact Now
    Detailed Product Description
    Other Name: Top Hat Section Roll Forming Machine Line Speed: 15-20m/min
    Drive: Chain Drive Control System: PLC Control System
    Usage: For Producing Automobile Guide Rails Feature: Fully Automatic Production Line
    High Light:

    cold roll forming machine

    ,

    roll forming equipment

     Custom Omega Profile CNC Roll Forming Machine For Automobile Guide Rails

      Brief Description
    This CNC cold roll forming machine is used to produce automobile guide channels. Whole line is fully automatic combining cold roll forming, punching, cutting and automatic controlling technology. With PLC control system, users only need to set related production data on the control panel, then the machine will run continuously.



    Machine Features and Advantages

    • High Automation With Easy Operation
    • High-volume Production
    • Long Lifetime With Stable Performance
    • Solid And Strong Shafts
    • Superior Abrasion Resistance Of Rollers




      Main Components of Whole Roll Forming Line

    No.  Main Parts of Whole Line Quantity
    1.  Double Head Decoiler / Uncoiler  1 set
    2.  7-Roller Leveller  1 set
    3.  Hydraulic Punching Unit  1 set
    4.  Roll Forming Machine   Material Entry Feeding Guide  1 set
     Roll Forming Stations
     Turkey Straightener
    5.  Final Product Output Support Table 2 sets
    6.  Electric Control Cabinet  1 set
    7.  Hydraulic Station  1 set





      Function Of Each Parts

    >   Double Head Decoiler

    Can load 2 coils at one time, when one side of the coils is used out, turn around the decoiler for another coil. This can save the time of changing the coils for a high efficiency.



    >   Levelling Device

    When the thickness of material is more than 1.5mm, we equipped a leveller in the roll forming line to get a perfect flatness of material for high quality product. Whether a 5-roller leveller or a 7-roller leveller or a 9-roller leveller equipped depends on specific material clients' use.



    >   Hydraulic Punching Unit

    Separated punching unit with servo feeder has the advantages of high precision and can work synchronously with the roll forming machine. Whole line speed can reach 15m/min to 20m/min.



    >   Roll Forming Machine

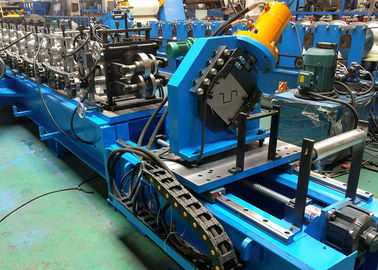

    Main part of the whole line, material can be roll formed to required profiles. Entry guide is used to avoid the deviation of the material and straightener is used for a perfect straightness of the final product.



    >   Final Product Output Support Table

    For supporting the final products in avoid of falling down. Non powered support table is commonly equipped for the machine. Automatic stacker is optional if users need.



    >   Electric Control Cabinet

    Outsourcing from famous brand or brand that users prefer.



    >   Hydraulic Station

    Outsourcing from famous brand.





      Machine Layout And Workflow

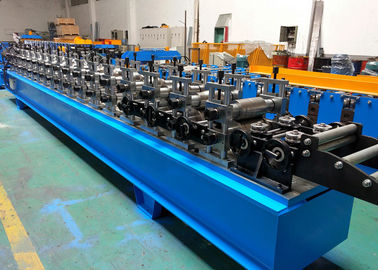

    Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use

    Steel Coil Loading--->Coil Unwinding--->Material Levelling--->Punching Holes--->Servo Feeding--->Entry Guiding--->Roll Forming

    --->Straightening--->Cutting To Required Length--->Final Product Outputting

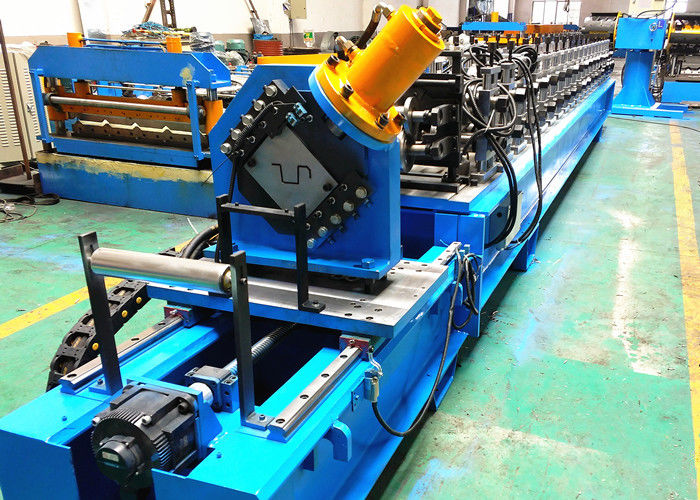

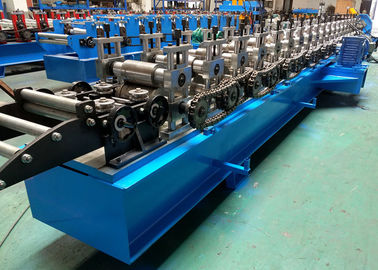

      More Pictures Of Automobile Guide Rail Prouction Line

    Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use

    Personalized Omega Profile CNC Roll Forming Machine Automobile Guide Rails Use
