Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles

Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles

    • Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles
    • Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles
    • Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles
    • Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles
  • Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-CT300

    Payment & Shipping Terms:

    Packaging Details: Nude packing, electric control cabinet and hyardulic station is wrapped with plastic film.
    Delivery Time: 90-120 days
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    Application: For Producing Ventilated Cable Trays Formed Cable Tray Width: 100mm To 300mm
    Width Adjust: Automatically Adjust Punching Press: 80Ton Power Press
    Forming Power: 15kw Forming Speed: 10-15m/min
    High Light:

    cable tray making machine

    ,

    cable tray forming machine

    Automatic Adjust Cable Tray Roll Forming Machine For 100-300mm Width



      Description

    This cable tray production line can produce solid bottom cable trays, perforated cable trays and ladder cabble trays with 0.6-1.2mm galvanized steel coils.


    Steel coils go through coil loading, unwinding, feeding, entry guiding, roll forming, cutting and then output the desired products. The production line is fully automatic by combing punching, roll forming, cutting to length into one line.



    Formed cable tray widths range from 100mm to 300mm and heights range from 30mm to 100mm as requested. Automatic width adjust means that users only need to input the data of the width desired on touch screen, which is more convenient than manual adjust and can save a lot of time for users.





      Main Components of Cable Tray Production Line

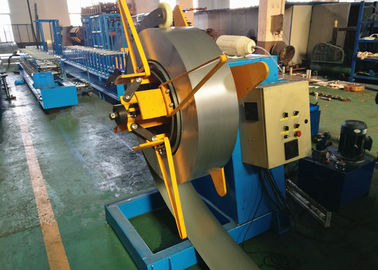

    • 3Ton Decoiler

    Single mandrel type with hydraulic expansion and electric unwinding; holding and unwinding max 3000kg weight of steel coils

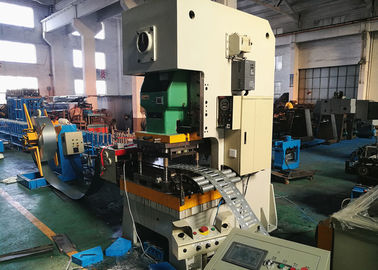

    • Servo Feeder + 80Ton Power Press

    Capacity of the power press is according to the material thickness and slots required

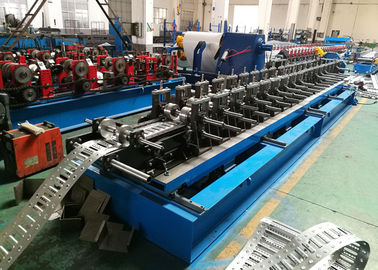

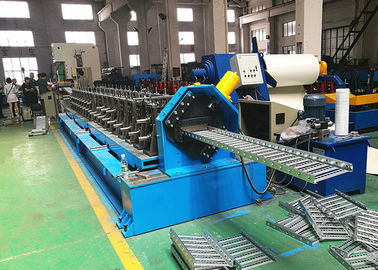

    • Cable Tray Rollformer

    Both sides of the roller stands can move in and out through the linear guide to adjust the gap between the rollers



    • Cutting Device

    Users need to change cutting blades for each dimension of formed cable tray



    • Final Product Support Tables

    Unpowered support table, preventing the final products from falling off after cutting



    • Electric Control Cabinet

    With Panasonic PLC control system, users only need to input desired cutting length and quantity, the machine will start accordingly and stop working when finish



    • Hydraulic Station

    Rexrroth electromagnetic valve and hydraulic valve



    Auto Adjustable Cable Tray Roll Forming Machine For 100 - 300mm Width Profiles



      Main Machine Advantages

    >   Can roll form ventilated cable trays/ladder cable trays from 100mm to 300mm width in one machine

    >   Automatic adjust the gap between the rollers for each dimension

    >   High precision punching holes and slots by 80Ton high speed and high precision power press

    >   Low burr cutting and exact accuracy of cutting length

    >   All electric and hydraulic elements are selected from international famous brand





      Most Important Technical Parameters

    No.  Item  Parameters
    1.  Material can be roll formed  0.6-1.2mm mild strength galvanized steel coils
    2.  Formed cable tray width  100mm to 300mm
    3.  Formed cable tray height  30mm, 50mm, 80mm, 100mm
    4.  Forming stations  18 stations
    5.  Roll forming speed  15kw
    6.  Power for roll forming  10-15m/min (not including cutting)
    7.  Power for cutting  5.5kw





      End Product Pictures For Reference
