Home ProductsCable Tray Roll Forming Machine

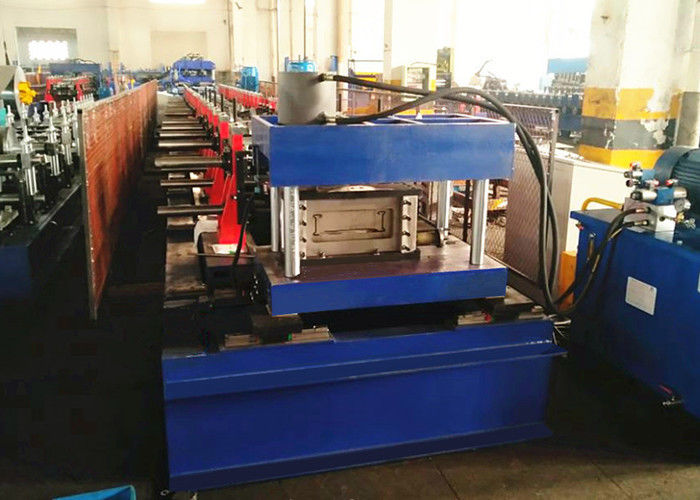

100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line

100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line

    • 100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line
    • 100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line
    • 100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line
    • 100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line
    • 100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line
  • 100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-CT300

    Payment & Shipping Terms:

    Price: Contact Us For Best Price
    Packaging Details: Main roll forming machine is nude packing and fastened inside of the container, electric control cabinet and hydraulic station are wrapped with plastic film.
    Delivery Time: 90 to 120 days
    Payment Terms: 30% TT as deposit, 70% after machine check and accept before delivery
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Application: For Producing 100-300mm Wide Cable Trays Width Adjust: Automatic Adjust
    Control System: PLC Control System Drive System: Electrically Driven Via Chain
    Cutting System: Hydraulically Powered Cutting System Power Supply: 380V, 50Hz, 3Ph



    100-300mm Cable Tray Rollforming Machine, Perforated Cable Tray Production Line



    Description

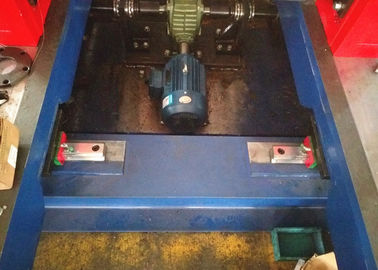

    This cable tray rollforming line is designed and manufactured for producing 100mm to 300mm wide cable trays. Main material can be roll formed are hot dip galvanizsed steel coils, pre-galvanized steel coils and stainless steel coils with the thickness of 1.0-2.5mm. Each side of the roller stands are installed on a common base which can automatically move in and out through the linear guide, thus it is easy for users to adjust the distance between rollers for producing cable trays with different dimensions.



    Standard Features

    • PLC Control System
    • Electrically Driven And Transimission System
    • Automatic Width Adjust System
    • Hydraulic Post Cutting System

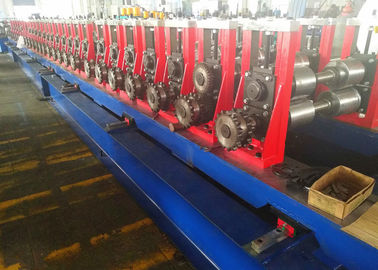

    • Cast Iron / Forged Iron Roller Stands
    • Rollers With Vacuum Heat Treatment



    Working Process

    Steel coil unwinding--->material levelling--->punching holes and patterns--->rollformed to desired sections--->cutting--->final products



    Main Components Of Whole Line

    1. 5Ton Decoiler -- Manual decoiler or hydraulic decoiler are depend on clients' requirement

    2. Levelling Unit -- When material thickness is more than 1.5mm, we equip a levelling unit for good flatness of the material surface

    3. Hydraulic Punching Unit -- Punching molds depend on the holes, slots and patterns clients require

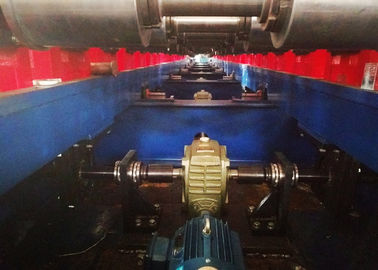

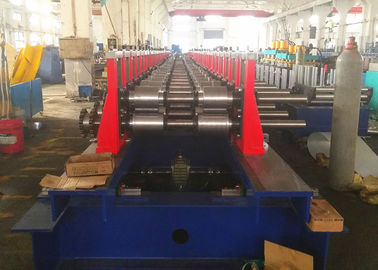

    4. Rollforming Unit -- Distance between rollers can be easily adjust, chain diven

    5. Hydraulic Cutting Unit -- Cutting after roll forming, stop-to-cut type

    6. Runout Receiving Tables -- Receiving rollformed cable trays after cutting to required length

    7. Electric Control Cabinet -- Touch screen together with button type for operation

    8. Hydraulic Staion -- Offer power for punching and cutting



    Detailed Specifications

    Item  Specifications
    A  Material Information 1.  Raw Material  Hot dip galvanized steel, Pre-galvanized steel, Stainless steel
    2.  Material Thickness  1.0-2.5mm
    3.  Material Strength  235-345Mpa

    B  Machine Specification 1.  Machine Length  Approx. 15m
    2.  Machine Width  Approx. 1.5m
    3.  Machine Height  Approx. 1.2m

    C  Technical Specifications 1.  Roller Stations  26 stations
    2.  Main Power  15kw * 2 for roll forming
    3.  Width Adjust Power  1.5kw * 2
    4.  Hydraulic Power  7.5kw for punching and cutting
    5.  Shaft Material  40Cr with 110mm in diameter, surface with chrome plated
    6.  Roller Material  GCr15 with vacuum heat treatment, surface with chromed plated



    For more machine information, please contact us.
