Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line

Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line

    • Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line
    • Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line
    • Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line
    • Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line
    • Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line
  • Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-CABLETRAY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: According to customers' requirement
    Packaging Details: Standard seaworthy packing, wrapped with plastic film and fastened with steel wire
    Delivery Time: 90 to 120 days
    Payment Terms: T/T, L/C
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Machine Type: Cold Rollforming Machine Machine Application: Widely Used For Steel Structure Building Industry
    Cable Trays Size: 100-600mm Width, 50-150mm Height Widths Adjust: Automatic Adjust, Infinitely Adjustable
    Control System: PLC Control System With Touch Screen Operate Panel Machine Speed: 10-15m/min



    Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line

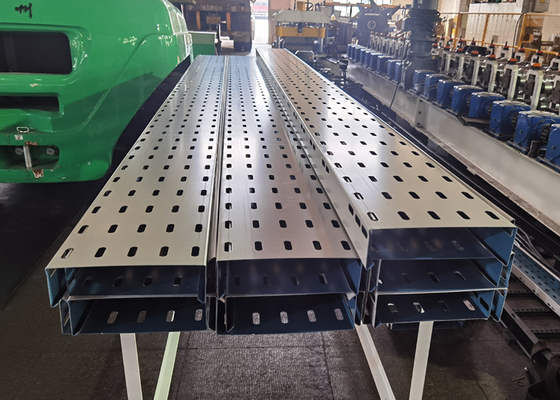

    Perforated type cable trays are widely used when installing large volumes of heavy duty power cables. It has the advantage of ventilation, which makes full free air rating of cable and can greatly enhance life of the cables.



    Believe Industry Company designs and manufactures cable tray roll forming lines based on customers' requirement. Our machine can produce channel cable trays, ladder cable trays, and perforated cable trays, etc with 1.0mm - 4.0mm thickness and 40mm to 1500mm width. Materail applicable are galvanized steel coils, pre-painted coils, stainless steel coils, etc.



    No. Cable Tray Width (mm) Cable Tray Height (mm)
    1. 50 / 100 / 150 15 / 35 / 50 / 80 / 100
    2. 200 / 300 / 400 / 500 / 600 / 1000 50 / 80 / 100 / 150 / 200 / 250



    Main Machine Features

    *   Customized machine designed according to required sizes, material thickness, punching hole patterns and profiles.

    *   Automatic sizes adjustment, easy operation and time saving.

    *   Pre-cutting type, no need to change cutting blades for each tray size.

    *   Rollers go through vacuum heat treatment for great hardness.

    *   High speed and high precision punching press

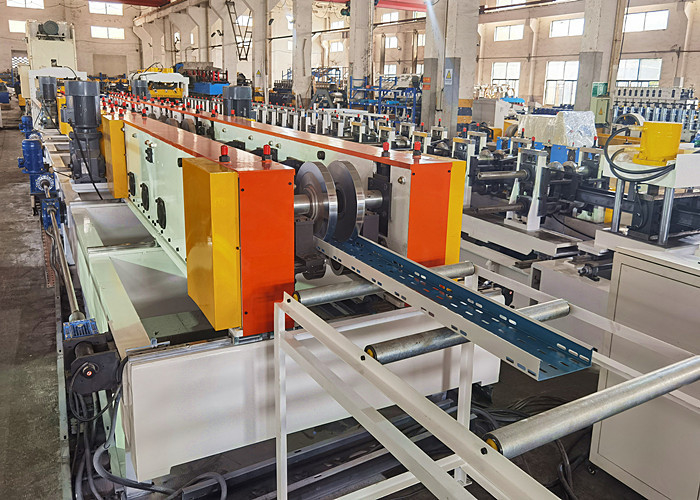

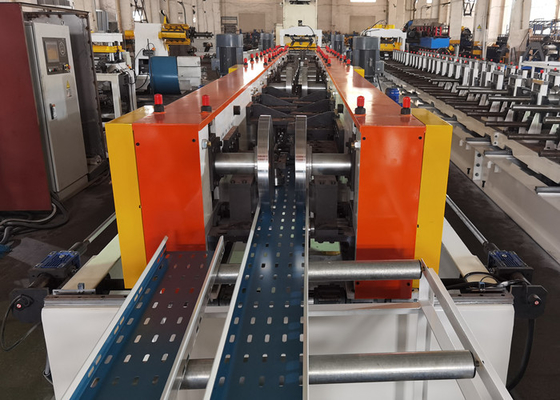

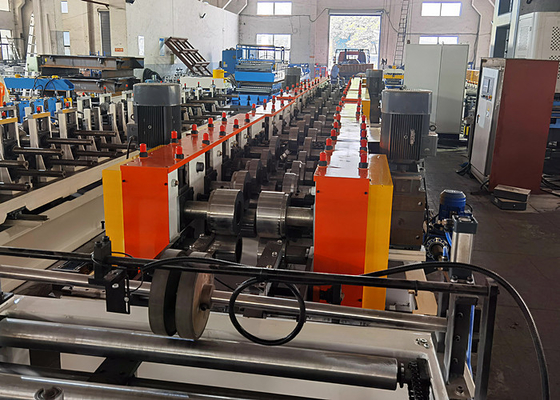

    Whole Line Components and Layout

    Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production Line



    Galvanized Steel / Stainless Steel / Pre-painted Steel Perforated Cable Tray Roll Forming Production LineWhole



    Whole line working process: decoiling - levelling - punching - pre-cutting - roll forming - final products



    Main Technical Parameters

    1. Raw Material Information

    1.1 Material can be used: galvanized steel coils, pre-painted steel coils, stainless steel coils

    1.2 Material thickness: 1.0-4.0mm

    1.3 Material strength: 195-235Mpa



    2. Machine Technical Parameters

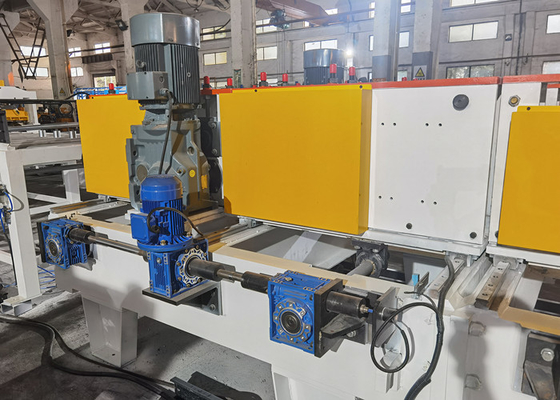

    2.1 Decoiler and levelling unit type: integrated type decoiler and leveller

    2.2 Decoiler max. loading capacity: 5000kgs

    2.3 Levelling unit: 9-roller design, top 4 rollers, bottom 5 rollers levelling for good flatness before punching

    2.4 Material of levelling rollers: 40Cr solid shafts with 70mm diameter

    2.5 Roll forming steps: 20-28 steps

    2.6 Main power: 11kw * 2 electric motor for roll forming

    2.7 Material of shaft: 40Cr solid shafts with 80mm diameter

    2.8 Material of rollers: GCr15, HRC58-62

    2.9 Roll forming speed: 8-15m/min not including punching and cutting

    2.10 Control system: automatic PLC control system

    2.11 Drive system: electric motor drive via chain

    2.12 Punching type: high speed and high precision punching press

    2.13 Material of punching mold: Cr12Mov, HRC58-62

    2.14 Cutting system: hydraulic cutting type, pre-cutting before roll forming

    2.15 Power for cutting: 7.5kw

    2.16 Material of cutting blade: Cr12Mov, HRC58-62

    2.17 Cutting length tolerance: +/- 1.5mm





    If you need more machine details, please contact us directly.
