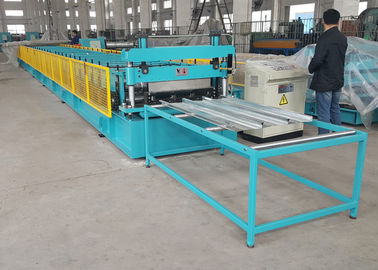

Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

    • Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel
    • Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel
    • Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel
  • Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELI
    Certification: CE
    Model Number: BELI 65-185-555 SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD, 35000-45000/SET
    Packaging Details: Standard Packing
    Delivery Time: 45 to 60 days
    Payment Terms: 30% TT in advance, 70% TT after machine check and accept before delivery
    Supply Ability: 50 sets per quarter
    Contact Now
    Detailed Product Description
    Machine: Floor Decking Roll Forming Machine Main Motor Power: 22KW
    Control System: PLC Control System Forming Steps: 35 Steps
    Raw Material: GI, PPGI, Stainless Steel Weight Of The Machine: 15 Ton
    High Light:

    metal deck forming machine

    ,

    cold roll forming machine

    Closed Type Floor Decking Roll Forming Machine For GI, PPGI, Stainless Steel



      Brief Description

    This cold roll forming machine is able to produce closed type steel decking sheets that bond with the concrete slad to develop a composite floor system for steel buildings. Main material can be roll formed are galvanized steel coils with the thickness of 0.8mm to 1.2mm.



    This floor decking machine can produce different decking profiles with different material feeding width. Such as Model YX65-170-510, YX65-185-555 and so on. Users only need to adjust the spacers between the rollers for each dimension.





      Main Machine Components

    No. Machine Components Quantity Options
    1. 5Ton Hydraulic Decoiler 1 unit Decoiler + Coil Car
    2. Main Roll Forming Machine a. Feeding Guide 1 unit

    Gear box drive

    Hydraulically drive

    b. Hydraulically Powered Pre-cutting
    c. Roll Forming Unit
    d. Hydraulic Cutting Device
    3. Run Out Support Table 2 units
    4. Electric Control System 1 unit
    5. Hydraulic System 1 unit



    Main Machine Technical Parameters

    1. Material Can Be Roll Formed: galvanized steel coils

    2. Material Thickness: 0.8mm to 1.2mm

    3. Control System: PLC control system

    4. Drive: electrically driven via 1.2" chain and sprocket

    5. Forming Steps / Roller Stations: 35 stations

    6. Main Forming Power: 11kw*2

    7. Forming Speed: 10-15m/min





      Whole Line Work Process And Machine Layout



    Work Precess

    Steel coils unwinding---Rollformer entry guiding---Roll form to required profile---Cutting---Run out



    Layout Of Steel Decking Rollforming Line

    Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

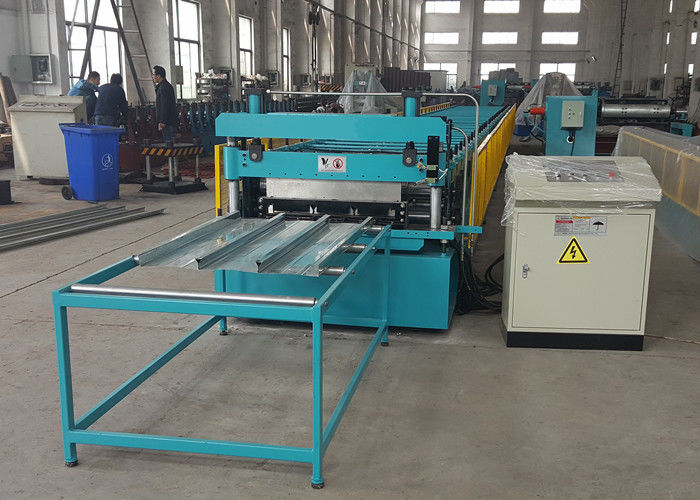

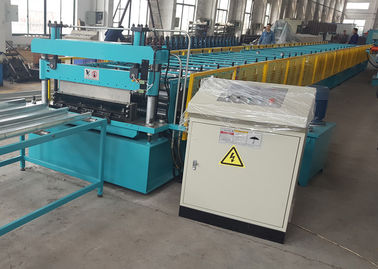

    More Pictures

    Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel



    Decking Sheet Profile

    Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

    YX65-170-510

    Feeding Width: 1000mm

    Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

    YX65-185-555

    Feeding Width: 1085mm

    Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

    YX65-240-720

    Feeding Width: 1200mm

    Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

    YX65-254-762

    Feeding Width: 1250mm





    Believe Industry Company is professional in All kinds of metal forming machine designing and manufacturing. We adopt German advanced roller design software COPRA to assist in machine designing. We keep improving our technology to offer customers with best machine solutions.



    If you have any questions or need more machine details, please contact us.
