Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff

Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff

    • Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
    • Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
    • Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
    • Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
  • Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Standard Packing
    Delivery Time: 60 to 90 days
    Payment Terms: 30TT in advance, 70% TT before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: 3 Wave Highway Guardrail Roll Former Main Motor Power: 45KW
    Machine Speed: 15m/min Servo Motor Power: 5.5KW
    Drive: Gear Box Drive Cutting: Servo Flying Cutting
    High Light:

    roll forming machine

    ,

    roll forming equipment

    Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff


      Brief Description

    This metal roll forming machine is designed for producing thrie beam guardrail panels for highways and roads. Whole production line is fully automatic with PLC control system. Steel coils undergo unwinding, levelling, punching, roll forming, cutting and finally outputting the desired products.


    Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff



    No.  Components  Description of Each Part Quantity
    1.  Decoiler / Uncoiler  Holding and unwinding steel coils 1 set
    2.  Leveller  Levelling the material for good flatness 1 set
    3.  Punching Unit  Hydraulic punching holes on material 1 set
    4.  Roll Former  Roll forming the material to required profiles 1 set

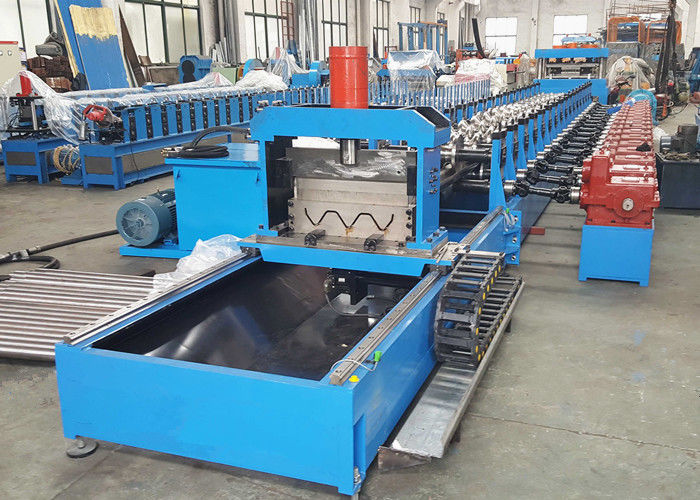

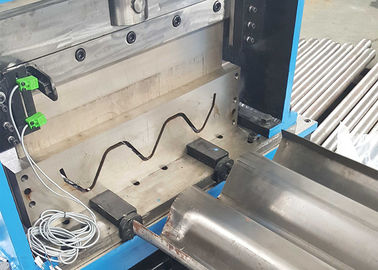

    5.  Cutting Device  Servo motor tracking and hydraulic cutting to length 1 set
    6.  Output Table  Unpowered tables for supporting final products 2 sets
    7.  Electric Control Cabinet  PLC control system with button and touch screen operation 1 set
    8.  Hydraulic Station  Offer power for punching and cutting 1 set





      Machine Features

    Main machine base is welded by H beam steel and then processed by CNC gantry milling machine for high precision. Guide-pillar type roller stands after milling are screwed on the machine base to form the main machine structure.



    • Can roll form 1.5-4.0mm thickness galvanized steel coils and cold rolled steel coils.
    • Can produce both w beam and thrie beam guardrails.
    • Whole line speed can reach up tp 18-20m/min with separated leveller, punching unit, gear box drive roll former and servo flying cutoff.

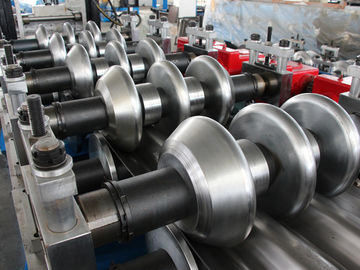

    • Guide pillar type roller stands are easy for adjust the spacers and rollers.
    • High precision of punching location with servo feeder.

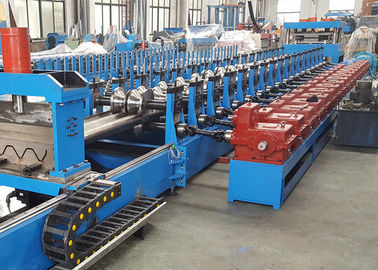

    • Gear box drive has the advantages of stable performance, low noise and long lifetime.
    • Exact accuracy of cutting to length.





      Usage And Application



    Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff



    If you need detailed machine technical parameters, please CONTACT US with your own profile drawing.
