Trapezoidal Roofing Sheet Roll Forming Machine With Manual Pre - Cutting Device

Trapezoidal Roofing Sheet Roll Forming Machine With Manual Pre - Cutting Device

    • Trapezoidal Roofing Sheet Roll Forming Machine With Manual Pre - Cutting Device
    • Trapezoidal Roofing Sheet Roll Forming Machine With Manual Pre - Cutting Device
  • Trapezoidal Roofing Sheet Roll Forming Machine With Manual Pre - Cutting Device

    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: Beli
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Contact Us For Best Price
    Packaging Details: Main roll forming machine nude packing, electric and hydraulic system covered with plastic flim
    Delivery Time: 45 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    Condition: New Machine Guarantee: 18 Months
    After-sale Service: Engineers Available To Serve Machine Overseas
    High Light:

    roofing sheet roll forming machine

    ,

    metal roofing roll former

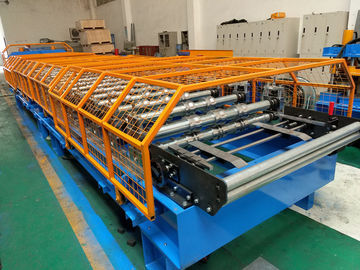

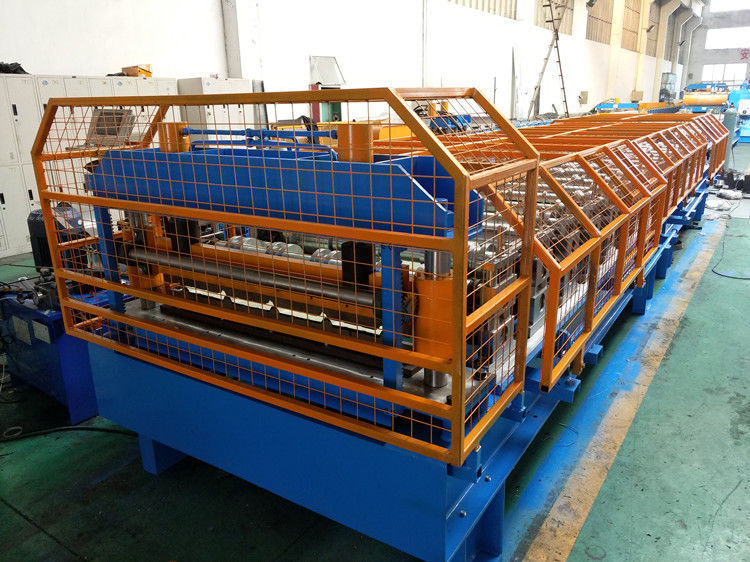

    To USA Trapezoidal Roofing Sheet Roll Forming Machine With Manual Pre-cutting Device

    This roll forming machine is designed to produce trapezoidal roofing sheets according to USA customer's profile drawing and requirement. Main work process of this machine is decoiling, material guiding, roll forming and cutting. We equip a manual pre-cutting device before the rolling station. It is easy for customer to cut the material.



    Main Components Of This Machine

     1. 5Ton Hydraulic Decoiler  1 unit





     2. Roll Forming Machine


     a. Manual Feeding Guide





     1 unit

     b. Manual Pre-cutting Device
     c. Roll Forming Machine
     d. Hydraulic Cutting
     3. Auto Stacker  1 unit
     4. PLC Control System  1 unit
     5. Hydraulic System  1 unit



    Main Machine Technical Parameters

    1. Materials: Galvanized steel coils, PPGI coils, Color Steel Coils

    2. Material thickness: 0.3-0.7mm

    3. Main motor power: 7.5kw

    4. Forming stations: 18 stations

    5. Forming speed: 10-15m/min

    6. Shaft diameter: 76mm

    7. Roller material: high grade NO.45 steel with heat treatment and chrome plated of 0.05mm thick

    8. Hydraulic power: 4kw

    9. Cutting blade material: Cr12Mov



    Machine Features

    1. Pre-cutting Device

    This device is equipped before the roll froming stations. It can help to easily cut the last roll forming roofing sheet with smooth cut.



    2. Safety Protective Mesh

    We equip protective mesh on two sides of main roll forming machine and position of cutting device to protect the safety of both people and machine.



    Believe Industry Company is engaged in all kinds of metal roll forming machine designing and manufacturing. If you have any questions or need more machine details, Please Contact Us.
