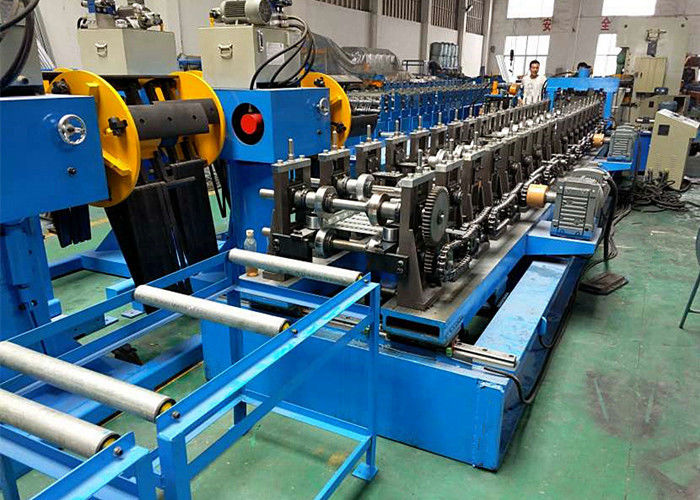

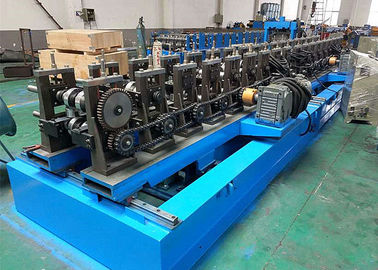

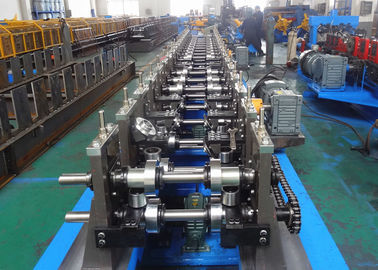

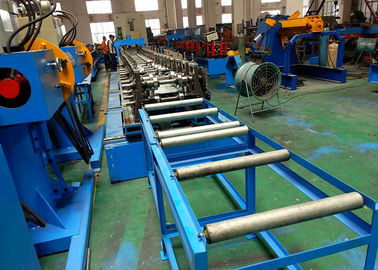

150mm 300mm Web Perforated Cable Tray Roll Forming Machine With Pre - Cut Device

150mm 300mm Web Perforated Cable Tray Roll Forming Machine With Pre - Cut Device

    • 150mm 300mm Web Perforated Cable Tray Roll Forming Machine With Pre - Cut Device
    • 150mm 300mm Web Perforated Cable Tray Roll Forming Machine With Pre - Cut Device
    • 150mm 300mm Web Perforated Cable Tray Roll Forming Machine With Pre - Cut Device
    • 150mm 300mm Web Perforated Cable Tray Roll Forming Machine With Pre - Cut Device
  • 150mm 300mm Web Perforated Cable Tray Roll Forming Machine With Pre - Cut Device

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: Cable Tray Roll Forming Machine

    Payment & Shipping Terms:

    Packaging Details: Standard Seaworthy Packing
    Delivery Time: 60 to 90 days
    Payment Terms: 30% TT in advance, 70% TT before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Applicable Material: Galvanized Steel Coils, Cold Rolled Coils Material Thickness: 1.5-2.5mm
    Main Power: 15KW Forming Steps: 18 Steps
    Machine Features: Pre-cutting, Do Not Need To Change Cutting Blades For Each Dimension Width Adjust: Automatic Adjust Type

    Galvanised Perforated Cable Tray Cold Rollforming Line With Pre-cut Device



      Description

    This cable tray production line is able to produce perforated cable trays with 150mm and 300mm web width and 45mm height. Main material are 0.6mm to 1.2mm thick galvanized steel coils. Roller stations can automatically move in and out through the linear guide to adjust the gap between rollers for roll forming each dimension.



    Pre-cutting device cut the material into required length before roll forming. Compared to post cutting device, users do not need to change cutting blades for each dimension, which saves a lot of time for continous production.





      Detailed Specifications Of Cable Tray Production Line

    No.

     Main Components

     Technical Specifications

    1.

     3Ton Decoiler

     1. Hydraulic Mandrel Expansion and Tension: 3kw

     2. Expansion Range: 480-520mm

     3. Electric Decoiling: 4kw

     4. Max Coil ID: 1350mm

     5. Loading Capacity: 3000kg

    2.

     7-Roll Leveling Device

     1. Pinch Roll: 2 pinch roll for feeding

     2. Leveling Roll: 7-roll for leveling, up 3 and bottom 4

     3. Leveling Roll Diameter: 90mm

     4. Leveling Roll Material: 40Cr, HB220-260

    3.

     High Speed Power Press

     With Servo Feeder

     1. Servo Motor: 3kw

     2. High Speed Power Press: 80Ton

     3. Impact Force Location: 4

     4. Stroke: 150mm

     5. Max Close Height: 340mm

     6. Up Platform Area: 770 x 420 x 70mm

     7. Down Platform Area: 1000 x 550 x 90mm

     8. Main Power: 7.5 x 4(kwxP)

     9. Slider Adjust: Manual adjust

     10. Air Pressure: 6kg/m2

    4.

     Roll Forming Mill

     1. Machine Base: H beam steel welded structure

     2. Roll Stand: Cast iron roll stand screwed on machine base

     3. Width Adjust: Electric adjust, 1.5kw

     4. Forming Steps:18 steps

     5. Roll Material:GCr15

     6. Shaft Material: 40Cr, φ90mm

     7. Cutting Power: 11kw

     8. Cutting Blade Material: Cr12Mov

    5.

     Final Product Support Table

     1. Angle steel welded frame, with roll-path table

     2. Size: 2000 x 500 x 700mm (L x W x H)

     3. Quantity: 2 sets

    6.

     Electric Control Cabinet

     1. Control System: PLC Control System

     2. Encoder: Omron Brand

     3. Frequency Inverter:YASKAWA

     4. Touch Screen: MCGS

     5. Quantity: 2 units, 1 for punching, 1 for cutting

    7.

     Hydraulic Station

     1. 2 units, 1 for decoiler mandrel expansion, 1 for cutting

     2. Hydraulic Expansion Power: 3kw

     3. Hydraulic Cutting Power: 11kw

     4. Brand: Local Famous Brand
