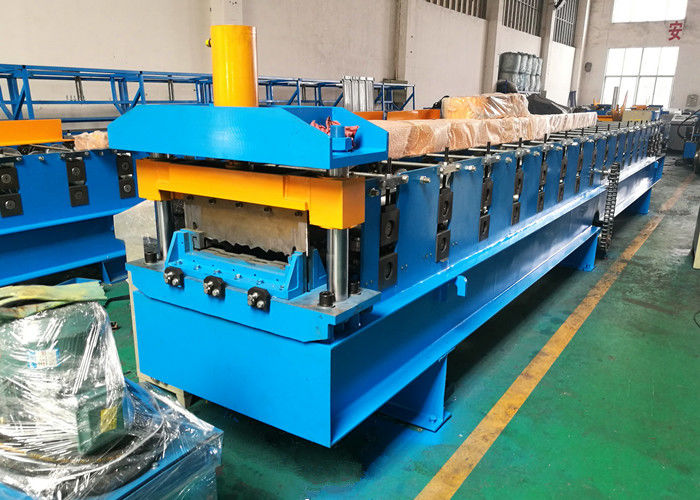

Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former

Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former

    • Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former
    • Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former
    • Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former
    • Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former
  • Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: Composite Floor Decking Roll Forming Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Contact us to get latest price
    Packaging Details: Machine part nude packing and fastened inside the container with steel wire, PLC control system and hydraulic station are wrapped with plastic film.
    Delivery Time: 55 to 60 days
    Payment Terms: 30% TT in advance, 70% TT after machine check and accept before shipment
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Forming Steps: 17 Steps Forming Speed: 15m/min
    Main Motor Power: 11kw Shaft Material: 40Cr, 60mm
    Roller Material: NO. 45 Steel, Fine Machining Control System: PLC Control System
    High Light:

    floor deck roll forming machine

    ,

    cold roll forming machine

    Composite Slab Metal Decking Floor Roll Former For Mild Steel Decking



      Brief Description

    Composite slab galvanized steel decking roll forming machine is designed to produce floor decking sheet with galvanized steel coils. Floor decking cooperated with concrete slab works as a permanent paltform for steel buildings.



    Work Flow

    Decoiling---Feeding and Guiding---Roll Forming---Cutting---Output



    Main Components

    No.  Item Quantity  Layout
    1.  Decoiler 1 set Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former

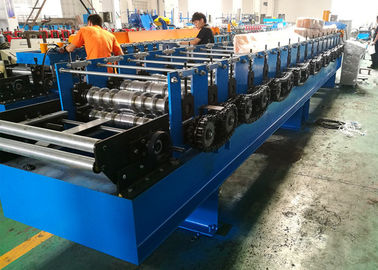

    2.  Steel Decking Rollformer 1 set
    3.  Cutting Device 1 set
    4.  Run Out Table 1 set
    5.  Electric Control System 1 set
    6.  Hydraulic System 1 set





      Machine Features

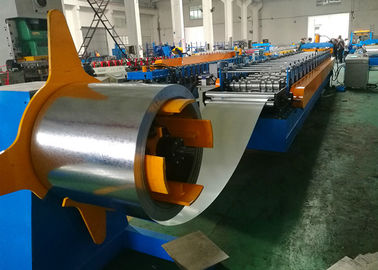

    • Decoiler: 5Ton hydraulic decoiler, hydraulically powered expansion and electrically unwinding
    • Rollformer Machine Structure: H beam steel welded machine base, 25mm thick steel plate roller stands
    • Roller Material: GCr15 with 0.05mm thick Chrome plated
    • Shafts: 40Cr solid shafts, with heat treatment and Chrome plated
    • Drive: electrically diven via chain and sprocket
    • Control system: PLC control system
    • Cutoff: hydraulically powered CR12Mov blade cutting
    • Run Out Table: unpowered roller-path type for receiving the products



    Technical Specifications

    No.  Item  Specifications  Profile Drawing
    1.  Forming Steps  17 steps Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former
    2.  Main Motor Power  11kw
    3.  Forming Speed  15-20m/min
    4.  Drive  chain drive

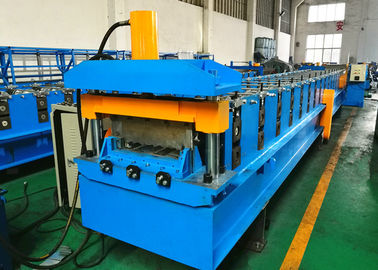

    5.  Cutting   hydraulic cutting device
    6.  Hydraulic Power  5.5kw
    7.  Length Tolerance  ±2mm





      End Product For Reference

    Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former



    If you are looking for a new roll forming machine line, please feel free to contact us.
