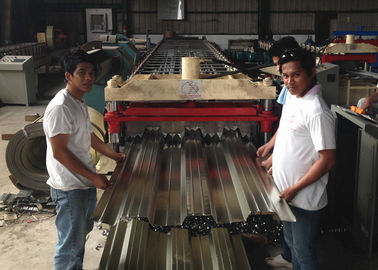

22KW Steel Deck Roll Forming Machine , Corrugated Metal Deck Forming Machine

22KW Steel Deck Roll Forming Machine , Corrugated Metal Deck Forming Machine

    • 22KW Steel Deck Roll Forming Machine , Corrugated Metal Deck Forming Machine
    • 22KW Steel Deck Roll Forming Machine , Corrugated Metal Deck Forming Machine
    • 22KW Steel Deck Roll Forming Machine , Corrugated Metal Deck Forming Machine
  • 22KW Steel Deck Roll Forming Machine , Corrugated Metal Deck Forming Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Price: USD 35000-45000 per set
    Packaging Details: Nude Packaging
    Delivery Time: 50 to 60 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Other Name: Metal Floor Decking Cold Forming Machine Uasge: For Producing Decking Sheets For Structural Flooring System
    Power Supply: 380V, 3 Phase, 50Hz Control System: PLC Control System
    Machine Warranty: 24 Months For Normal Use After-sale Service: Engineers Available To Serve Machine Overseas
    High Light:

    floor deck roll forming machine

    ,

    cold roll forming machine

    Steel Corrugated Floor Deck Cold Rollformer Machine | Believe Industry



    Description



    Steel deck is a cold formed corrugated steel sheet widely used for composite floor system. It has the advantages of lightweight, high strength and anti-fire, etc. Believe Industry Company has mature technology in steek floor deck machine designing and building.

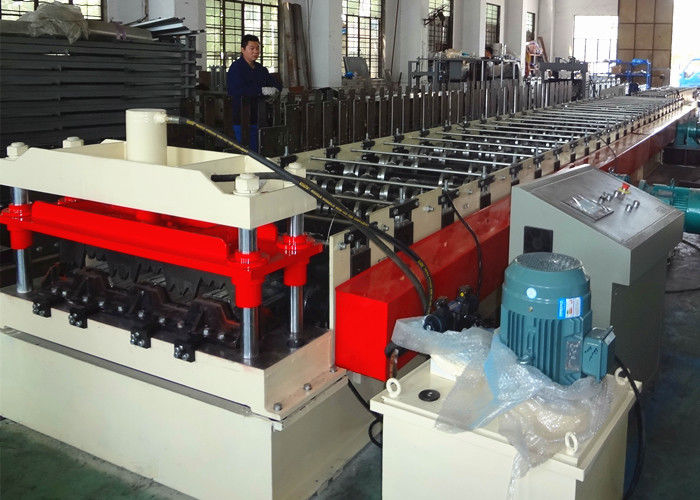

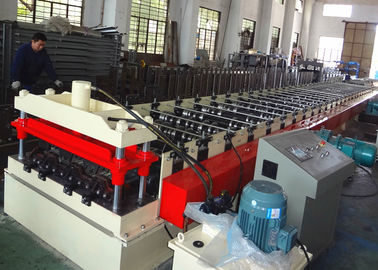

    Floor deck cold roll former mainly consists of uncoiler, roll forming stations, cutting device, run out support frame, electrical control system and hydraulic station. Steel coils go under decoiling/unwinding, feeding and deviation adjustment, roll forming, cutting to required length and then output the steel decking sheets as required.



    Due to different deck profiles, material feeding width and forming steps/roller stations are different. We have our own engineers and technicians analysing clients' requirement first and then offer an optimized machine solution accordingly.





    Technical Parameters Of Corrugated Floor Deck Machine
    1.  Material Can Be Roll Formed  Carbon steel, Galvanised steel coils; mild steel
    2.  Thickness of material  0.8-1.5mm
    3.  Material Width  Depend on profile
    4.  Roller Stations  24-34 stations according to profile
    5.  Forming Speed  15-20m/min
    6.  Roller Material  GCr15, vacuum heat treatment
    7.  Shaft Material  40Cr, heat treatment and chrome plated
    8.  Main Power  22kw
    9.  Drive  Electrically driven via chain and sprocket
    10.  Cutting Blade Material  Cr12 Mov





    Machine Layout

    22KW Steel Deck Roll Forming Machine , Corrugated Metal Deck Forming Machine





    Believe Industry Company have full range of roll forming machines for C Purlin, Roofing Sheets, Metal Floor Decks.
