Structural Steel Deck Roll Forming Machine Composite Flooring System Use

Structural Steel Deck Roll Forming Machine Composite Flooring System Use

    • Structural Steel Deck Roll Forming Machine Composite Flooring System Use
    • Structural Steel Deck Roll Forming Machine Composite Flooring System Use
    • Structural Steel Deck Roll Forming Machine Composite Flooring System Use
    • Structural Steel Deck Roll Forming Machine Composite Flooring System Use
  • Structural Steel Deck Roll Forming Machine Composite Flooring System Use

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 38000-45000 per set
    Packaging Details: Nude Packaging
    Delivery Time: 60 days
    Payment Terms: 30% TT as deposit, and 70% TT as balance before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: Steel Composite Floor Decks Roll Forming Machine Usage: Used To Produce Structural Decking Sheets
    Machine Type: Metal Roll Forming Machine Material Formed: Galvanized Steel, Stainless Steel
    Power Supply: 380V, 50Hz, 3Ph Warranty: 24 Months

    Structural Metal Decks Rollformer Equipment For Composite Flooring System



      Machine Description

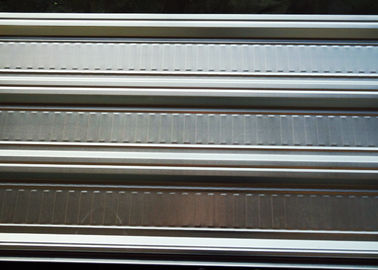

    This metal deck roll forming machine is used to produce metal decks used for structural composite flooring system. Main materials can be formed are carbon steel coils, galvanized steel coils and stainless steel coils.



    Main components of this machine are 5Ton decoiler with coil car, metal deck roll former, hydraulic cutting device, run out tables, electric control cabinet, and hydraulic station, etc.



    Work Process: unwinding, feeding and guiding, roll forming, cutting, required metal decks



    Machine Features

    • With Panasonic PLC control system
    • Drive: electrically driven by chain and sprockets
    • 5Ton hrdualic decoiler with coil car: easy for coil uploading and adjusting
    • Machine structure: H beam steel welded machine base; steel plate weled on base as roller stands
    • Hydraulic cutting device with low bur cutting and high accuracy
    • 3 pieces of run out support tables
    • Roll forming unit, cutting device and transimission part are all covered with protective mesh
    • Control cabinet: touch screen with button type, operate language can be customized as required





      Main Technical Specifications

     Components No.  Item  Technical Specifications
    5Ton Hydraulic Decoiler With Coil Car 1.  Loading Capacity   5000kg
    2.  Expansion  hydraulically powered for expansion
    3.  Unwinding  electrically powered for unwinding
    4.  Hydraulic Power  3kw
    5.  Electric Power  4kw

    Metal Deck Roll Former 1.  Roller Stations  24 stations last 2 stations for embossing strengthen ribs
    2.  Forming Speed  15-20m/min
    3.  Forming Power  11kw * 2
    4.  Shaft Material  120mm
    5.  Shaft Diameter  40Cr with heat treatment and chrome plate
    6.  Roller Material  GCr15 with 0.05mm thick chrome plated
    7.  Drive  1.2" chain drive

    Cutting Device 1.  Type  hydraulic blade cutting
    2.  Hydraulic Power  5.5kw
    3  Blade Material  Cr12Mov, HRC 58-62





      More Pictures Of Floor Deck Roll Former

    Structural Steel Deck Roll Forming Machine Composite Flooring System Use

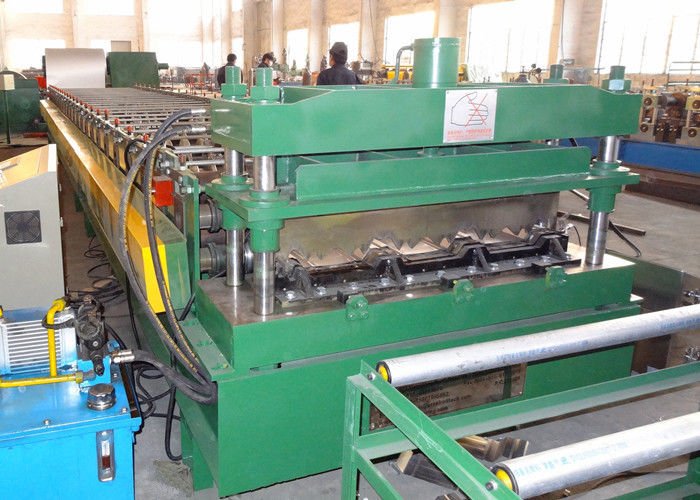

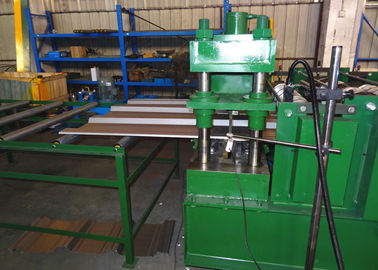

    Hydraulic Blade Cutoff

    Structural Steel Deck Roll Forming Machine Composite Flooring System Use

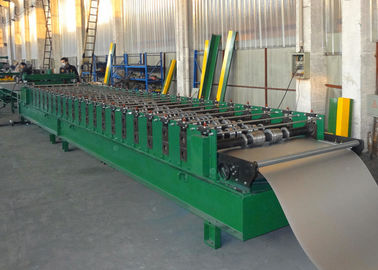

    Rollformer

    Structural Steel Deck Roll Forming Machine Composite Flooring System Use

    Hydraulic Uncoiler With Coil Car

    Structural Steel Deck Roll Forming Machine Composite Flooring System Use

    Whole Rollfoming Machine Line





    Believe Industry Company custom structural metal deck machine for different profiles such as Compositefloor51, Compositefloor60, Compositefloor100, Compositefloor225, dovetail Compositefloor and non-composite formwork, etc.



    Contact us if you are looking for a new rollformer equipment with your profile.
