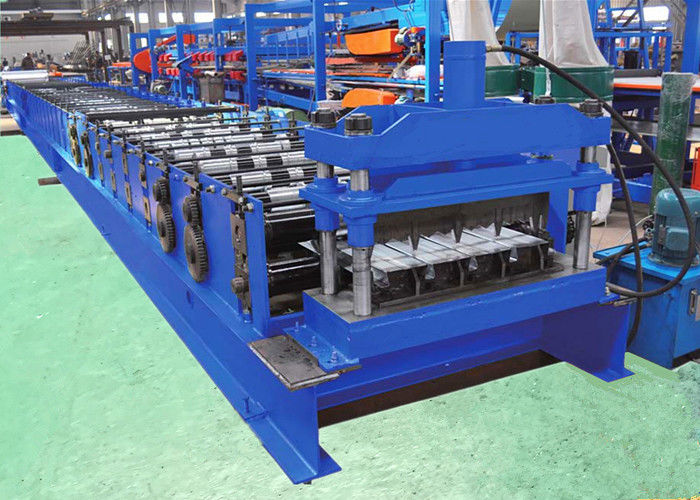

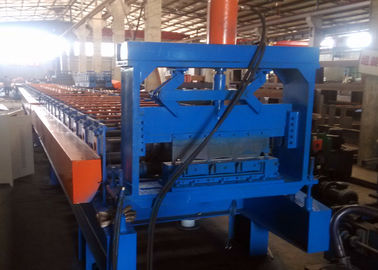

Dovetail Decking Floor Roll Forming Equipment For 760mm Cover Width Profile

Dovetail Decking Floor Roll Forming Equipment For 760mm Cover Width Profile

    • Dovetail Decking Floor Roll Forming Equipment For 760mm Cover Width Profile
    • Dovetail Decking Floor Roll Forming Equipment For 760mm Cover Width Profile
  • Dovetail Decking Floor Roll Forming Equipment For 760mm Cover Width Profile

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: DOVETAIL FLOOR DECKING MACHINE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Contact Us For Best Price
    Packaging Details: Main machine part nude packing, PLC control system and hydraulic system are wrapped with plastic film.
    Delivery Time: 45 to 60 days
    Payment Terms: 30% TT in advance, 70% TT after machine check and accept before delivery
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Condition: New Machine Warranty: 24 Months
    After-sale Service: Engineers Available To Serve Machine Overseas

    Dovetail Decking Floor Rollforming Machine Line With 760mm Cover Width



      Brief Description

    This roll forming machine is available to produce dovatail shape steel decking sheets. Dovetail steel deck with the appeal of the dovetail shape and inherent strength is a good option for both roof decking system and composite floor decking system. Main applicable material is 0.8-1.3mm galvanized steel coils with the width of 1250mm.



    No.  Item  Specification  Profile Drawing - Dovetail Profile
    1.  Steel Deck Model  YX 51-190-760 Dovetail Decking Floor Roll Forming Equipment For 760mm Cover Width Profile
    2.  Cover Width  760mm
    3.  Material Width  1250mm
    4.  Material Thickness  0.8-1.3mm



    Whole Line Work Process

    Steel coil loading on the decoiler--unwinding the coil--rollformer entry guide--roll forming--cutting---run out



    Dovetail Decking Floor Roll Forming Equipment For 760mm Cover Width Profile





      Main Machine Components and Parameters



    No.

     Main Parts of Steel Deck Floor Rollforming Line

    Quantity

     Options
    1.  5Ton Manual Decoiler 1 unit

     .  Hydraulic Decoiler

     .  Hydraulically driven

     .  Cast Iron Roller Stands

     .  Gear Box Drive

     .  Siemens or Mitsubishi, etc

    2.

     Main Rollforming Machine

     a. Feeding Guide

    1 unit

     b. Hydraulic Pre-cutting Device

     c. Main Rollformer with chain drive

     d. Hydraulic Cutting Device

    3.

     Product Run Out Support Table

    2 units

    4.

     Electric Control System

    1 unit

    5.

     Hydraulic System

    1 unit



    Most Important Technical Parameters

    1. Applicable Materials: galvanized steel coils, stainless steel

    2. Material Thickness: 0.8 to 1.3mm

    3. Main Motor Power: 11kw*2

    4. Forming Stations: 34 stations

    5. Forming Speed: 10-15m/min

    6. Control System: PLC control system

    7. Shaft Material: 40Cr

    8. Roller Material: GCR15

    9. Cutting Blade Material: Cr12Mov



    Believe Industry Company is professional in All kinds of metal forming machine designing and manufacturing. We adopt German advanced roller design software COPRA to assist in machine designing. We keep improving our technology in order to offer customers with best machine solutions.



    If you have any questions or need more machine details, please contact us.
