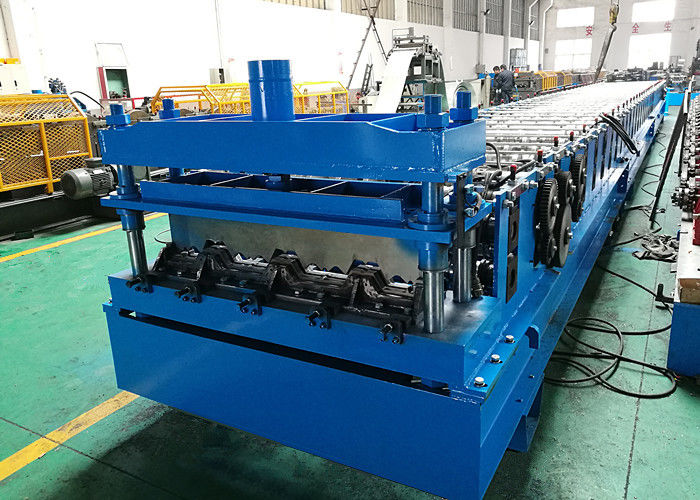

PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage

PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage

    • PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage
    • PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage
    • PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage
    • PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage
  • PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Nude packing and fastened inside of the container with steel wire.
    Delivery Time: 60-90 days
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    Application: For Producing Steel Floor Decking Sheets Coil To Be Roll Formed: Galvanized Steel Coils
    Coil Thickness: 0.8-1.2mm Forming Stations: 34 Stations
    Transmission Motion: Chain Transmission Cutting Type: Hydraulic Mold Cutting

    Steel Floor Deck Roll Forming Equipment For Composite Flooring System

      Description
    This roll forming machine is designed to produce steel floor decking sheets cooperated with concrete slab working as the flooring system of steel constructions.

    Material can be roll formed by this machine are 0.8-1.2mm thick galvanized steel coils. There are 34 roll forming staions of this floor deck machine and the first group of rollers are embossing rollers used to press strengthen ribs on the steel decks as required.

    Advantages of Steel Deck Roll Forming Line

    • Can roll forming 0.8-1.2mm thickness material, 0.7-1.5mm is also possible if demand
    • Economical machine design with manual decoiler and unpowered stacking tables
    • Low burr cutting of final products and exact cutting length accuracy
    • Easy operation with PLC control system, only to input related production data on the touch screen
    • All languages can be selected as the operating language, such as English, French, Spanish, etc


      Whole Line Components

    No. Components Description
    1. 5Ton Manual Uncoiler Manual loosen and tighten the mandrel, unpowered unwinding of coil
    2. Roll Forming Machine a. Entry Guide Manual rotate the hand-wheel to adjust
     b. Embossing Roller Press strengthen ribs as request

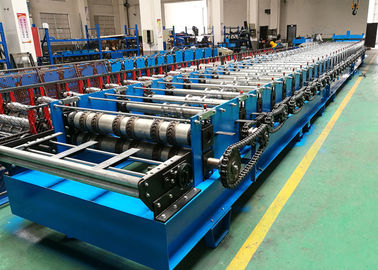

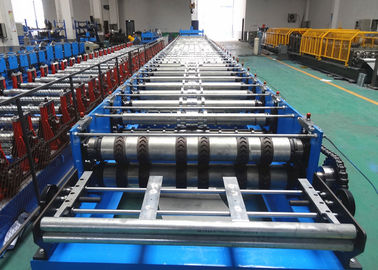

     c. Roll Forming Unit 34 forming steps for desired profile

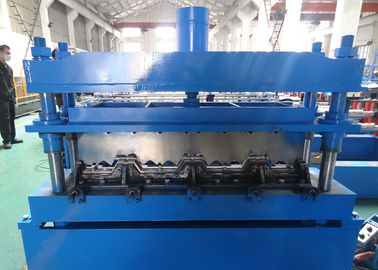

    3. Hydraulic Cutting Device Stop-to-cut motion, roll forming part will stop when cutting
    4. Product Tables Unpowered support the final products
    5. Electric Control System YASKAWA or Siemens PLC control system
    6. Hydraulic Station 4kw for cutting



      Packing And Delivery Of Steel Floor Decking Machine
    1. A 40GP container is needed for loading the whole roll forming line
    2. Main roll forming unit is separated into 3 parts for easy loading
    3. Main machine parts are fastened inside of the container by steel wire
    4. Electric parts and hydraulic parts are wrapped with plastic film and fastened inside of the container

    PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage

      Application Of Steel Decking Sheet
    PLC Controlled Steel Deck Roll Forming Machine Composite Floor Decking Sheets Usage
