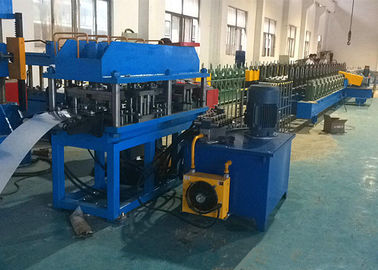

C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine

C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine

    • C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine
    • C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine
    • C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine
    • C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine
  • C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Nude Packing (roller surface covered plastic film)
    Delivery Time: 75 to 90 days
    Payment Terms: T/T, L/C
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: C Channel Type Cable Tray Cold Rollformer With Servo Flying Cutoff Usage: Available To Produce C Channel Type Cable Trays
    Control System: PLC Control System Drive: Via Gear Box
    Voltage: 380V, 3 Phase, 50Hz Warranty: 24 Months
    High Light:

    cable tray manufacturing machine

    ,

    cable tray forming machine


    Galvanized C Channel Cable Tray Roll Forming Machine With Gear Box Drive

      Brief Description
    This cable tray roll forming machine is able to produce c channel shape cable trays. Whole line consists of 3Ton hydraulic decoiler, 9-roller levelling device, hydraulic pre-punching unit, cable tray rollformer, Turkey straightener, servo flying cutoff, run out tables, electric control system and hydraulic system, etc.

    Machine Features

    • Machine structure is H beam steel welded base with gantry type roller stands.
    • All the roller stands are made of cast iron, which makes the machine much stronger.

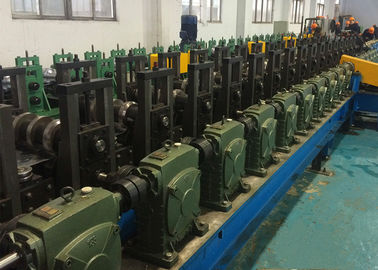

    • Gear box transmission has long lifetime and ensures the machine run stable at high speed.
    • Fly cutting device cut ormed cable trays in a certain length continuously, no need to stop rest of the line when cutting.


    Work Flow: steel coil uploading---unwinding---material levelling---punching and servo feeding---roll forming---straightening---cutting---final products

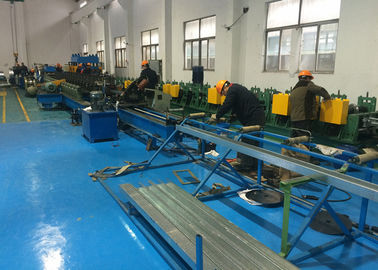

    C Channel Cable Tray Roll Forming Machine , Gear Box Driven Cable Tray Making Machine

      Most Important Technical Parameters

    No. Item Parameters
    1. Raw Material carbon steel coils, GI coils
    2. Material Thickness 1.5-2.0mm
    3. Material Width depend on
    4. Diameter of Shaft 76mm
    5.

     Material of Shaft

     40Cr with heat treatment and 0.05mm thick Chrome plated
    6. Material of Rollers GCr15 over queching treatment HRC58-62
    7. Main Motor Power 15kw
    8. Forming Speed 15-30m/min
    9. Forming Stations 25 stations
    10. Cutting Type servo tracking hydraulic cutting
    11. Material of Cutting Blade Cr12 Mov
