Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY |
Certification: | CE |
Model Number: | BELI-40/60/70 |
Packaging Details: | Nude packing of the machine, electric and hydraulic parts wrapped with plastic film. |
---|---|
Delivery Time: | 60 to 75 days |
Payment Terms: | T/T, L/C; 30% TT in advance |
Supply Ability: | 45 sets per quarter |
Other Name: | Octagonal Pipe Rollforming Machine, Octagonal Roller Shutter Door Shaft Roll Former | Application: | For Producing Roller Shutter Door Accessory Octagonal Tubes |
---|---|---|---|
Main Forming Power: | 7.5kw | Machine Speed: | 8-15m/min |
Material Can Be Rolled Formed: | Galvanized Steel Coils | Cutting Type: | Saw Cutting Device |

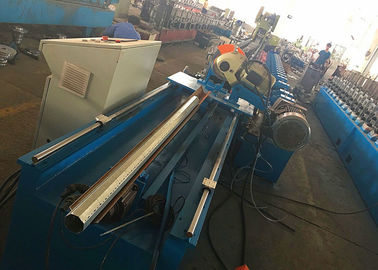

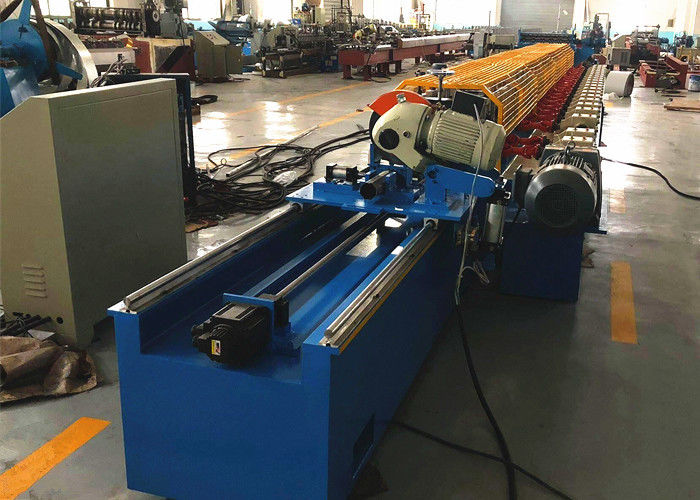

40mm 60mm 70mm Octagonal Tube Roll Forming Machine For Roller Shutter Door
Description
Octagonal tube is an important accessory for roller shutter door. Like roller shutter slats and roller shutter door guide track, octagonal tubes can also be produced by metal roll forming machine with interlocked/self-lock seam. Main material can be roll formed are galvanized steel coils with 0.5-1.2mm thickness. Steel coils go through the process of decoiling, infeeding guiding, punching, roll forming, cutting and finally come out the finished octagonal tubes.

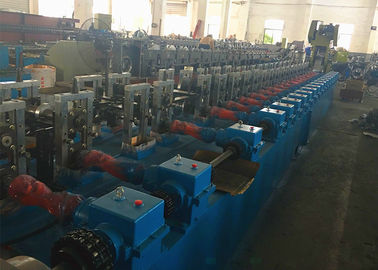

Most widely used dimensions of octagonal tubes are 40mm, 60mm, 70mm in diameter. One set of roll forming rollers is only to produce one dimension, BELIEVE INDUSTRY COMPANY make quick change machine design (cassette type/rafted type) for customers to produce more than one size of the octagonal tubes on the same machine. 4 groups of roller stands or more groups of rollers stands are assembled on a common base which can be installed on the machine base or removed from the machine base as a whole.
Main Components Of Whole Production Line
Decoiling--->Punching--->Feeding Guide--->Roll Forming--->Saw Cutting--->Output Octagonal Tubes
No. | Main Components | Quantity | Options |
1. | 2Ton Single Mandrel Decoiler | 1 set | Double Head Decoiler |
2. | High Precision Punching Press | 1 set | Hydraulic Punching Unit, Rotary Punching Device |
3. | Roll Forming Machine --> Roller Stations | 3 sets | Cassette Type Roller Stands |

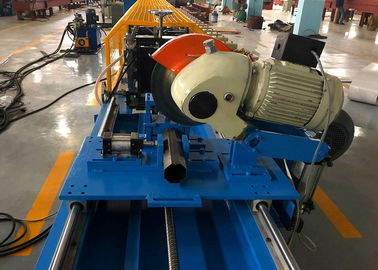

4. | Saw Cutting Device | 1 set | Flying Sawing Cutting Device |
5. | Control Cabinet | 1 set | Siemens, Mitsubishu or as required |
Technical Specifications
1. Octagonal Dimensions: 40mm, 60mm, 70mm
2. Raw Material To Be Roll Formed: galvanized steel coils
3. Material Thickness: 0.4mm to 1.2mm
4. Material Width: 143mm, 210mm, 248mm
1. Control System: PLC automatic control system
2. Main Forming Power: 7.5kw
3. Roller Stations: 20 stations
4. Forming Speed: 8-15m/min
5. Drive: electrically driven via gear box
6. Punch Press Capacity: 25Ton high precision power press
7. Cutting Type: saw cutting
End Product For Reference
BELIEVE INDUSTRY COMPANY make Rollforming Machine For Steel Door System: roller shutter door slats, roller shutter door panel, steel door frame, steel window frame, anti-fire door frame, roller door guide track/rail, garage door panel, mute door guide track, etc. All machines are custom strictly according to clients' profile and requirement.
