| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY |
| Certification: | CE |
| Model Number: | BELI SERIES |
| Price: | Contact Us For Best Machine Price |
|---|---|
| Packaging Details: | Main roll forming machine nude packing with steel string fixed in the container, electric and hydraulic system covered with plastic film |
| Delivery Time: | 60 - 75 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 sets per month |
| Other Name: | Anti Fire Steel Door Frame Roll Forming Machine | Application: | Used To Produce Anti Fire Door Frames |
|---|---|---|---|
| After-sale Service: | Enigineers Available To Serve Machine Overseas | Machine Warranty: | 24 Months |
| Power Supply: | 380V / 415V ; 50Hz, 60Hz | Cut Motion: | With Saw Cutting |
| High Light: | shutter door making machine,garage door roll forming machine |
||

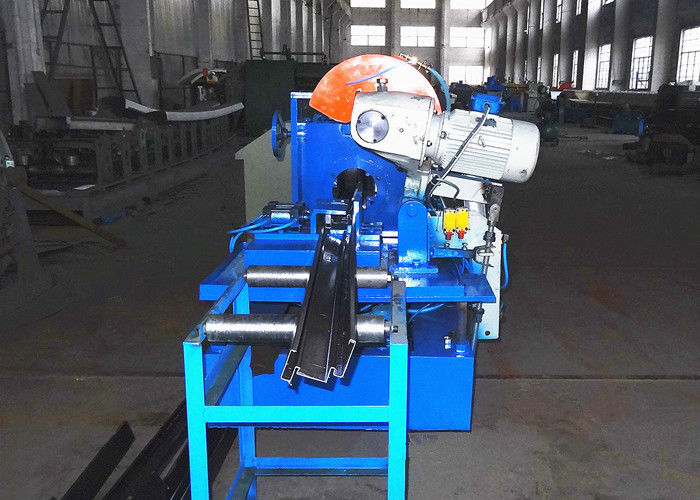

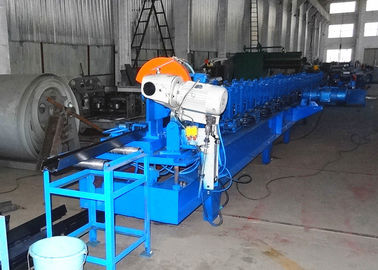

Anti Fire Door Frame Roll Forming Machine With Saw Cutting Device
Brief Description
BELIEVE INDUSTRY supply full ranges of metal roll forming machines for steel door series, such as roller shutter door forming machine, garage door panel and guide track manufacturing equipment, steel door frame production line, etc.
This roll forming machine is designed for producing anti fire steel door frames with custom profiles. Main material can be roll formed are galvanized steel coils with the thickness of 1.2mm to 1.8mm.
Work Process
Decoiling--Feeding and Guiding--Pre-punching--Roll Forming--Cutting--Run out
Machine Features
Components Of Steel Door Rollforming Line
| No. | Main Parts | Quantity | Options |
| 1. | 3Ton Manual Uncoiler | 1 set | 3Ton Hydraulic Uncoiler Gear box with universal joint Cast iron roller stands Hydraulic Cutoff Servo Flying Cutoff Automatic Width Adjust |
| 2. | Pre-punching Unit | 1 set | |
| 3. | Door Frame Rollformer With Chain Drive | 1 set | |
| 4. | Saw Cuttig Device | 1 set | |
| 5. | Run Out Frame | 1 set | |
| 6. | Electric Control Cabinet | 1 set | |
| 7. | Hydraulic Station | 1 set | |
| 8. | Pneumatic System | 1 set |
Main Technical Parameters
a. Applicable Material: galvanized steel coils
b. Material Thickness: 1.2-1.8mm
c. Main Motor Power: 17.5kw
d. Forming Stations: 20 stations
e. Forming Speed: 10-15m/min
f. Cutting Type: saw cutting, stop to cut
Packing And Loading Details
 |
|
|
|
If you need more machine details, please contact us!
Contact Person: Mr. Darren Mao
Tel: +86 186 16927760
Fax: 86-510-8827-9556
