Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY |
Certification: | CE |
Model Number: | BELI SERIES |
Packaging Details: | Main machine part nude packing, electric and hydraulic parts are wrapped with plastic film |
---|---|
Delivery Time: | 50 to 60 days |
Payment Terms: | T/T, L/C |
Machine: | Roll Up Door Guide Rail Roll Forming Machine | Application: | For Producing Roller Shutter Door Guide Tracks |
---|---|---|---|
Control System: | PLC Control System | Forming Stations: | 24 Stations |
Applicable Material: | Galvanized Steel Coils | Main Power: | 15kw |
High Light: | garage door roll forming machine,roll forming equipment |

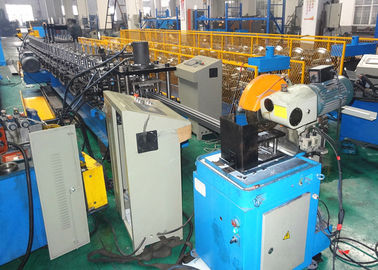

Roller Shutter Door Guide Track Roll Forming Machine With Low Cutting Burr
Description
Believe Industry Company supply roll forming machine for making components of roller shutter doors, such as roller shutter slats forming machine, roller shutter door panel machine, roller shutter door guide rail roll forming machine, etc.
This roller shutter door guide track roll forming machine is designed for producing roll up door guide tracks with the material thickness of 0.8mm to 1.2mm. Not like the simple steel U shape track, this guide track profile is much more complicated.
Components of Roller Door Guide Track Roll Forming Line
Machine Advantages
> Machine base and roller stands are processed by gantry milling machine for high precision
> Side slitting and winding device equipped for cutting extra side material
> Advanced saw cutting device with low cutting burr and few spark
> Formed roller shutter door track profile is in completely accordance with the drawing clients offered
> High precision of punching holes and slots as required
> Perfect quality of roller shutter door guide track surface
> High degree of cutting to length accuracy and can be cut at any length as required
Main Technical Parameters
1. | Material Thickness | 0.8-1.2mm |
2. | Forming Speed | 10-15m/min |
3. | Roller Stations | 24 stations |
4. | Main Forming Power | 15kw |
5. | Hydraulic Power | 11kw |
6. | Control System | PLC control system |
7. | Drive | Chain drive |
8. | Cutting Type | Saw cutting with cooling lubricant |
Pictures Of Formed Roller Shutter Door Track
