Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections

Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections

    • Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections
    • Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections
    • Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections
    • Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections
  • Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Main machine nude packing with electric and hydraulic parts wrapped with plastic film.
    Delivery Time: 55 to 60 days
    Payment Terms: 30% TT in advance, 70% TT before delivery
    Contact Now
    Detailed Product Description
    Features: Twin Row Type Machine, 2 Profiles In 1 Machine Other Name: Lightweight Ceiling Batten Roll Forming Machine
    Machine Structure: Steel Tube Welded Machine Structure Control System: PLC Control System
    Roller Stations: 14 Stations Main Power: 7.5kw
    High Light:

    roll forming machine

    ,

    roll forming equipment

    2 in 1 Light Steel Frame Roll Forming Machine For Top Hat Sections



      Brief Description

    This twin row roll forming machine can produce 2 different sizes of top hat sections or named as ceiling battens at the same time. Compared to conventional cold roll forming machines which can only produce one profile in one machine, this machine greatly increase the production effeciency and save a lot of energy for customers.



    Machine Features

    • Can be used to roll form max 1.0mm thickness galvanized steel coils
    • Two dimensions of steel sections can be roll formed in one machine at the same time
    • Steel tube welded machine structure with motor, hydraulic station and control system placed inside to save space
    • Guide-pole type roller stands can be easily disassembled for adjust and maintenance.
    • Electrically driven by 1.2" chain and sprocket
    • Hydraulic powered cutting device with 2 sets of separated cutting blades for each dimension

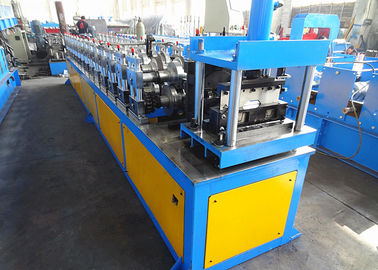

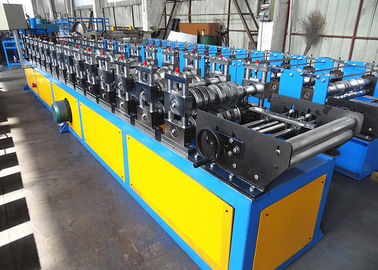

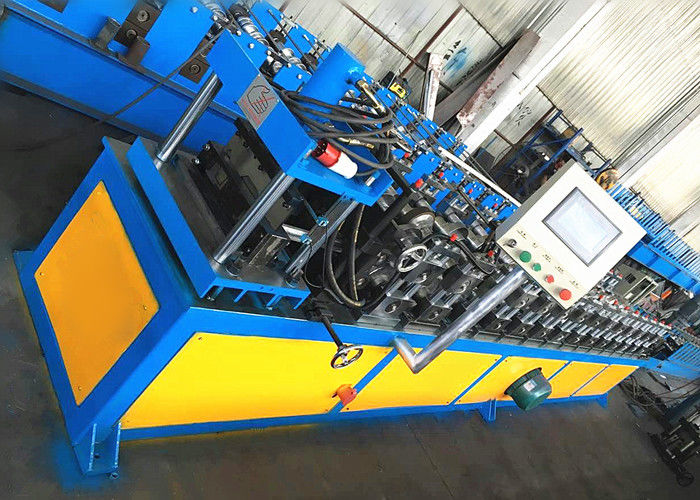

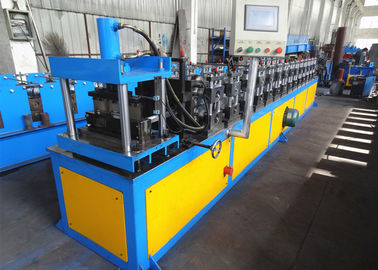

    Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections



    Work Flow: steel coil loading--coil unwinding--material entry guiding--roll forming--cutting--end product





      Main Machine Components And Technical Parameters

    Whole Line Components

    No.  Main Components  Quantity  Options

    1.

     3Ton Manual Decoiler

     1 unit

     Hydraulic Decoiler

    2.

     Roll Forming Mill

     Feeding Guide (Manual Adjust)

     1 unit

     Rollformer + Flying Cutoff

     Roll Forming Unit

     Hydraulic Cutting Device

    3.

     Final Product Output Table

     2 units

     Automatic Stacking System

    4.

     Electric Control System

     1 unit



    5.

     Hydraulic Station

     1 unit





    Most Important Parameters

    No. Technical Specification  Profile Drawing
    1.

    Forming Stations: 14 stations

     Light Steel Frame CNC Roll Forming Machine 2 in 1 Type For Top Hat Sections

    2.  Main Motor Power: 7.5kw
    3.  Forming Speed: 12-15m/min
    4.  Drive: electrically driven by chain
    5.  Control System: PLC control system
    6.  Hydraulic Power: 4kw
    7.  Roll Material: No.45 steel, heat treatment and Chromed plated
    8.  Shaft Material: 40Cr; diameter: 70mm
    9.  Cutting Blade Material: Cr12Mov, HRC58-62



    Other Light Steel Frame Roll Forming Machine

    • Steel C Channel Roll Forming Machine
    • Omega Profile Cold Roll Former
    • 3 Profiles In 1 Light Steel Sections Forming Equipment
    • High Speed Roof Batten Metal Roll Forming Machine Line



    Believe Industry Company is engaged in all kinds of cold roll forming machine designing and manufacturing. Show us your demand and we will give you the best machine solution.
