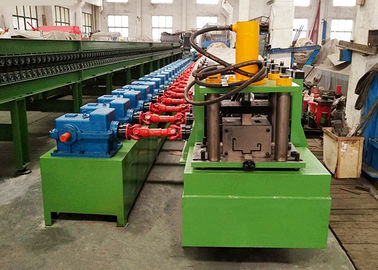

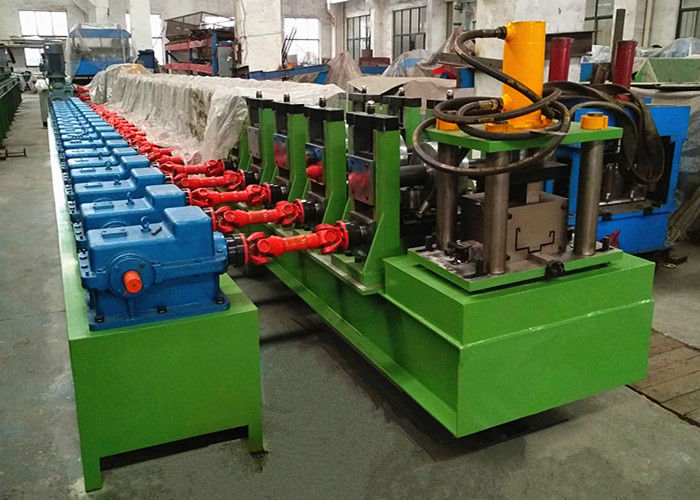

Steel Roller Shutter Door Roll Forming Machine Gear Box Driven Auto Size Adjustable

Automatic Size Adjust Steel Door Frame Rollforming Line With Gear Box Drive

  Description

This metal roll forming machine can be used to roll forming door frames with various dimensions. Whole line combines punching technology, cold roll forming technology and electric control technology is fully automatical.

Main Workflow

Uncoiling, feeding and guiding, leveling, punching, roll forming, and cutting.

  Machine Features

• Strong machine structure with high quality steel welded base frame and cast iron welded roller stands.
• Long lifetime and stable performance by gear box transmission with universal joints.
• One side of the roller stations is fixed while another side is automatic movable.
• The movable side of roller stations can move in and out through the linear guide for each dimension.
• Hydraulic powered cutting device, cutting with low noise and low burr.

  Application And Usage

>   Machine for roller shutter door series:

     Roller door slat, roller door panel, rolling shutter door track, etc

>   Machine for sectional garage door series:

     Garage door panel, 2" and 3" garage door guide rail, etc

>   Steel door and window frame series:

     Anti fire door frame, safety door frame, window frame, etc

  Most Essential Parameters Of Door Frame Rollforming Line

  Layout of The Line

  End Product Pictures

If you are looking for a new metal roll forming line, please contact us!
