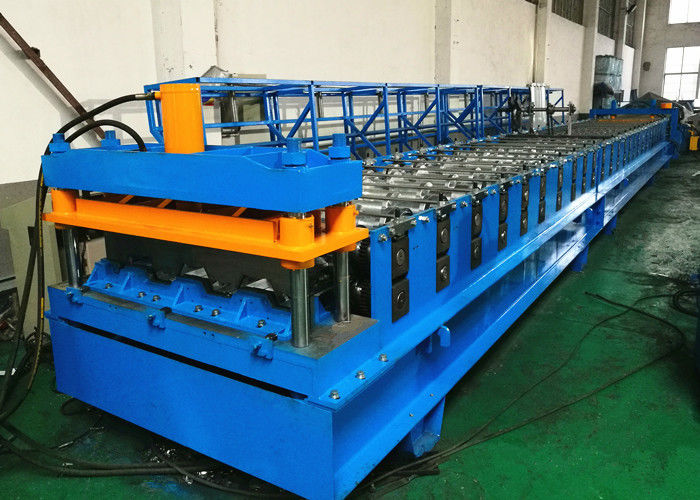

Electrically Driven Steel Deck Roll Forming Machine With Siemens PLC Control System

Electrically Driven Steel Deck Roll Forming Machine With Siemens PLC Control System

    • Electrically Driven Steel Deck Roll Forming Machine With Siemens PLC Control System
    • Electrically Driven Steel Deck Roll Forming Machine With Siemens PLC Control System
  • Electrically Driven Steel Deck Roll Forming Machine With Siemens PLC Control System

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Contact Us For Best Price
    Packaging Details: Main machine part nude packing, PLC control system and hydraulic system are wrapped with plastic film.
    Delivery Time: 45 to 60 days
    Payment Terms: 30% TT in advance, 70% TT after machine check and accept before delivery
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Other Name: Composite Steel Deck Roll Forming Machine Usage: Used To Produce Steel Decking Sheets For Floor Platform
    Drive: Electrically Driven Via Chain And Sprocket Cut: Hydraulically Powered For Pre-cut And Post Cut
    Control System: Siemens PLC Control System Motor: Siemens Brand
    High Light:

    metal deck forming machine

    ,

    floor deck roll forming machine

    Steel Deck Roll Forming Machine With Siemens PLC Control System



      Brief Description

    This roll forming machine is designed to produce steel decking sheets that bond with the concrete slad to develop a composite floor system for steel buildings. This floor decking machine can produce different decking profiles with different material feeding width. Customers only need to adjust the spacers between the rollers.



    Whole Line Work Process

    Steel coils decoilng--Guiding--Roll Forming--Cutting





      Main Machine Components And Parameters



    No.  Each Part Of Steel Deck Rollforming Line  Quantity
    1.  5Ton Hydraulic Decoiler  1 unit
    2.

     Steel Deck Rollformer

     a. Feeding Guide

     1 unit

     b. Hydraulic Pre-cutting Device
     c. Roll Forming Stations
     d. Hydraulic Cutting Device
    3.  Product Support Table  2 units
    4.  Siemens PLC Control System  1 unit
    5.  Hydraulic System  1 unit



    Machine Technical Parameters

    1. Applicable Materials: galvanized steel coils

    2. Material Thickness: 0.8 to 1.2mm

    3. Main Motor Power: 15kw x 2

    4. Forming Stations: 26 stations

    5. Forming Speed: 10-15m/min

    6. Control System: PLC control system

    7. Shaft Material: 40Cr

    8. Roller Material: GCR15

    9. Cutting Blade Material: Cr12Mov





      End Product and Profile For Reference

    Electrically Driven Steel Deck Roll Forming Machine With Siemens PLC Control System



    floor deck roll forming machine


    Believe Industry Company is professional in All kinds of metal forming machine designing and manufacturing. We adopt German advanced roller design software COPRA to assist in machine designing. We keep improving our technology in order to offer customers with best machine solutions.



    If you have any questions or need more machine details, please contact us.
