| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY COMPANY |
| Certification: | CE |
| Model Number: | BELI SERIES |
| Price: | Contact Us For Best Machine Price |
|---|---|
| Packaging Details: | Main roll forming machine nude packing with steel string fixed in the container, electric and hydraulic system covered with plastic film |
| Delivery Time: | 60 to 75 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 sets per quarter |
| Other Name: | Custom Roll Forming Machine For Mute Roller Shutter Door Track | Usage: | Use To Produce Steel Roller Shutter Door Guide Tracks Guide Rails |
|---|---|---|---|
| Machine Features: | Electrically Driven Via Chain And Sprocket | Cutting Type: | Saw Cutting |
| Main Forming Power: | 11kw | Hydraulic Power: | 7.5kw |
| High Light: | shutter door making machine,garage door roll forming machine |
||
Steel Mute Guide Track Roll Forming Machine For Roller Shutter Door
Brief Description
This steel roll forming machine is available to produce mute guide tracks for roll-up doors based on clients' profile drawing and requirement. Main material can be roll formed are galvanized coils with thickness of 1.0mm to 1.5mm.
Work Process: uncoiling--leveling--guiding--roll forming--straightening--punching--saw cutting
| No. | Whole Line Components | Quantity | Options |
| 1. | 3Ton Manual Uncoiler / Decoiler | 1 set | 3Ton Hydraulic Uncoiler |
| 2. | Mute Track Rollformer | 1 set | Gear Box Drive; hydraulic motor |
| 3. | Turkey Straightener | 1 set | / |
| 4. | Hydraulic Punching Unit | 1 set | / |
| 5. | Saw Cutting Device | 1 set | Hydraulic Cutoff; Servo Flying Cutoff |
| 6. | Run Out Tables | 2 sets | / |
| 7. | Electrical Control Cabinet | 1 set | / |
| 8. | Hydraulic Station | 1 set | / |
Machine Features
Main Technical Parameters
| No. | Item | Technical Parameters | Profile Drawing |
| 1. | Material Can Be Formed | galvanized steel coils |  |
| 1. | Material Thickness | 0.8-1.5mm | |
| 2. | Roller Stations | 20 stations | |
| 3. | Main Forming Power | 15kw | |
| 4. | Forming Speed | 12-15m/min | |
| 5. | Drive | chain drive | |
| 6. | Control System | PLC control system | |
| 7. | Cutting Type | saw cutting | |
| 8. | Hydraulic Power | 7.5kw |

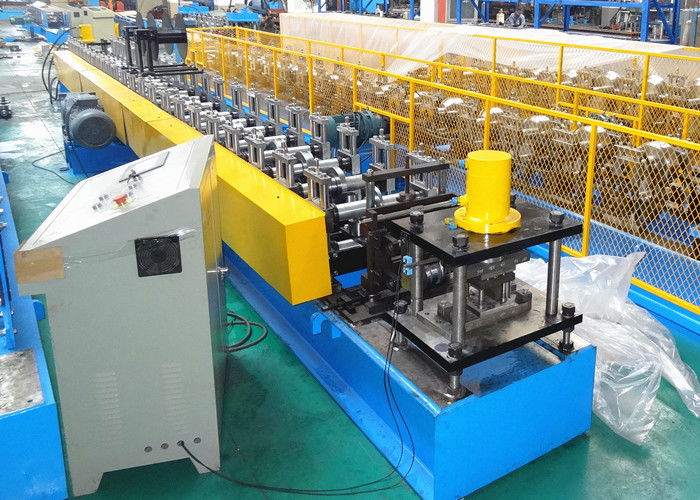

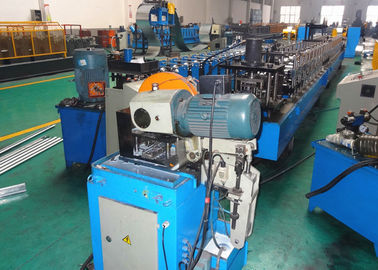

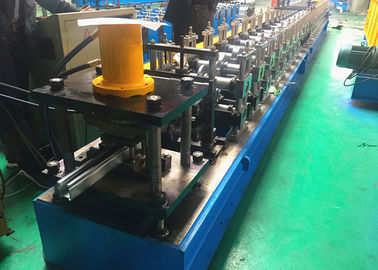

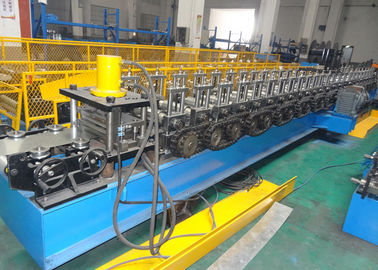

Machine Layout And Pictures Of Mute Track Rollforming Line
|
|
|
|
Believe Industry Company have full range of roll forming machines for roll-up doors components such as roller shutter slats machine, roller door panel rollformer, PU roller shutter forming machine, steel door frame manufacturing equipment, etc.
If you have any questions or need more machine details, please contact us!
Contact Person: Mr. Darren Mao
Tel: +86 186 16927760
Fax: 86-510-8827-9556
