Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY |
Certification: | CE |
Model Number: | BELI SERIES |
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact Us For Best Price |
Packaging Details: | Main machine part is nude packing with high tensile iron wire fixed inside the container, electric and hydraulic system are covered with plastic film. |
Delivery Time: | 45 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 20 sets/ Month |
Condition: | New Machine | Warranty: | 2 Years |
---|---|---|---|
After-sale Service: | Engineers Available To Serve Machine Overseas | ||
High Light: | shutter door making machine,roll forming equipment |

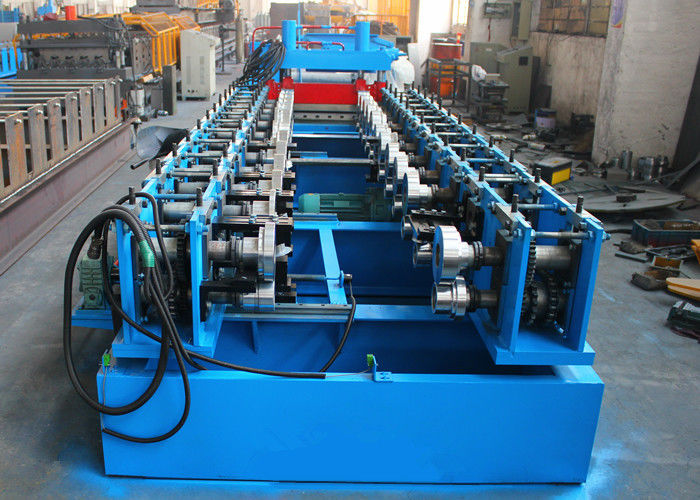

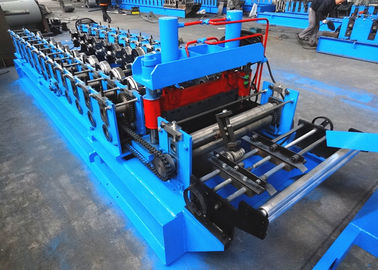

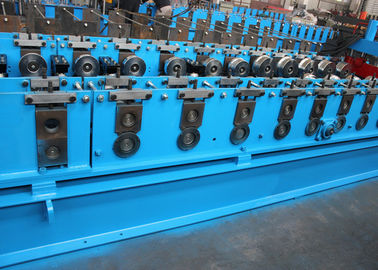

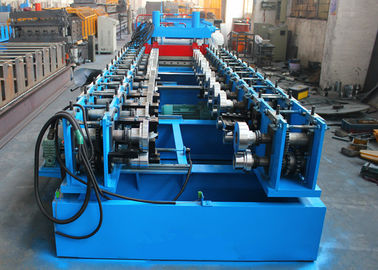

Automatic Adjust Cold Roll Forming Machine For Steel Door Panels
Description
This machine is used to produce customized profile door panels with galvanized steel coils. One side of the roller stands can move as a whole to adjust different sizes of door panels. Main process of this machine is decoiling, guiding, pinch roll feeding, hydraulic pre-cutting, roll forming, finished product run out.
Main Components:
a. 5Ton Manual Decoiler..................................................................................1 unit
b. Guiding Device............................................................................................1 unit
c. Pinch roll feeding device..............................................................................1 unit
d. Hydraulic Cutting Device..............................................................................1 unit
e. Roll Forming Machine...................................................................................1 unit
f. Product Support Table...................................................................................2 units
g. PLC Control System......................................................................................1 unit
h. Hydraulic Station...........................................................................................1 unit
Main Technical Parameters:
1. Applicable materials: galvanized steel coils
2. Material thickness: 1.0 to 1.2mm
3. Forming stations: 18 stations
4. Main motor power: 7.5kw for roll forming
5. Forming speed: 10-20m/min
6. Shaft diameter: 65mm
7. Shaft material: 40Cr, HB220-260
8. Roller material: 45# steel with heat treatment and chrome plated more than 0.05mm thick
9. Hydraulic power: 5.5kw for cutting
10. Cutting tolerance: ±1.5mm
11. Cutting type: hydraulic mold cutting, pre-cutting(cutting before roll forming machine)
12. Cutting blade material: Cr12Mov, HRC58-62
13. Transmission: 1.2" single chain transmission(driven)
14. Side adjust: automatic adjust, one side of roller stands as a whole move through linear guide
15. Adjust power: 1.5kw for size adjusting
