High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

    • High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
    • High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
    • High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
    • High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
  • High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: Lip Channel Roll Forming Machine

    Payment & Shipping Terms:

    Packaging Details: Standard Seaworthy Packing
    Delivery Time: 60 days
    Payment Terms: 30% TT in advance, 70% TT before shipment
    Contact Now
    Detailed Product Description
    Forming Steps: 14 Steps Forming Speed: 30-40m/min
    Forming Power: 18
    High Light:

    metal stud and track roll forming machine

    ,

    stud roll former

    30-40m/min Flying Cutoff C-section Lip Channel Roll Forming Machine

    Machine Advantages:



    1. High Machine Speed: 30-40m/min

    2. High Production: fully automatic, non-stop cutoff; 15-20 pcs/min (when cutting length is 2m)



    Machine Layout:

    1. Work Direction: left--->right

    2. Work Process: decoiling--->material leveling--->roll forming--->straightening--->flying cutting--->final product



    High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use



    Main Machine Components









     >  3Ton Hydraulic Decoiler



          High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use










     1 unit

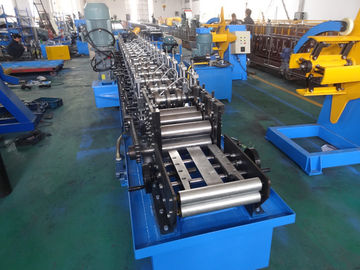

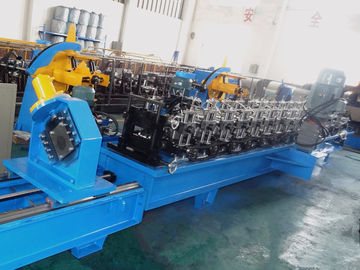

     >  Roll Forming Mill

         a. Leveling Device

         b. Roll Forming Unit

         c. Turkey Straightener

         d. Chain Drive System

         e. Cooling System



          High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use



          High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use





















     1 unit

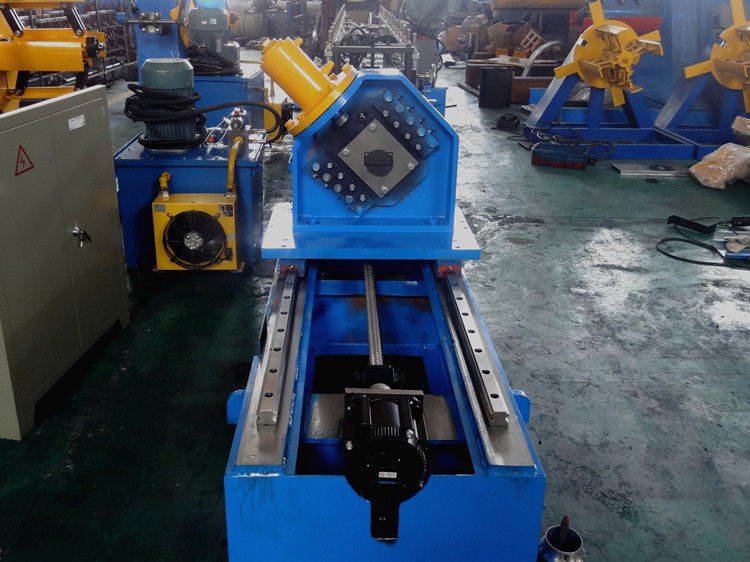

     >  Flying Cutoff Unit



          High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use











     1 unit









     >  Final Product Support Table



          High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use











     2 units









     >  Electric Control System



          High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use











     1 unit









     >  Hydraulic Station



          High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use











     2 units



    Main Machine Technical Parameters

    1. Foming Steps/ Forming Stations: 14 steps / 14 stations

    2. Forming Speed: 30-40m/min

    3. Main Motor Power: 18.5KW

    4. Control System: PLC control system

    5. Shaft Material: 40Cr, φ70mm solid shaft

    6. Roll Material: No. 45 Steel, quenching and tempering, roll surface plated with 0.05mm chrome

    7. Cutting Type: servo flying cutoff, hydraulic mold cutting type

    8. Servo Motor Power: 3.7KW

    9. Cutting Power: 4KW

    10. Cutting Blade Material: Cr12Mov, HRC58-62





    High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
