| Place of Origin: | CHINA |
| Brand Name: | Believe Industry Company |
| Certification: | CE |
| Packaging Details: | Standard Packing |
|---|---|
| Delivery Time: | 45-60 Days |
| Supply Ability: | 20 Sets Per Month |
| Machine: | Lip Channel Roll Forming Machine | Material Thickness: | 0.8-1.2mm |
|---|---|---|---|
| Forming Steps: | 16 Steps | Forming Speed: | 10-15m/min |
| High Light: | metal stud and track roll forming machine,stud roll former |
||

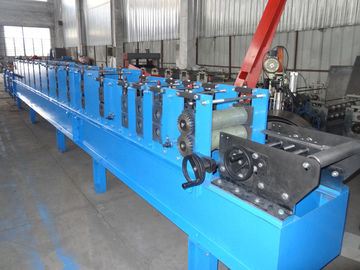

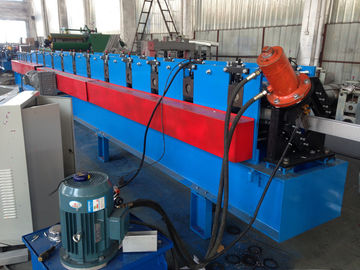

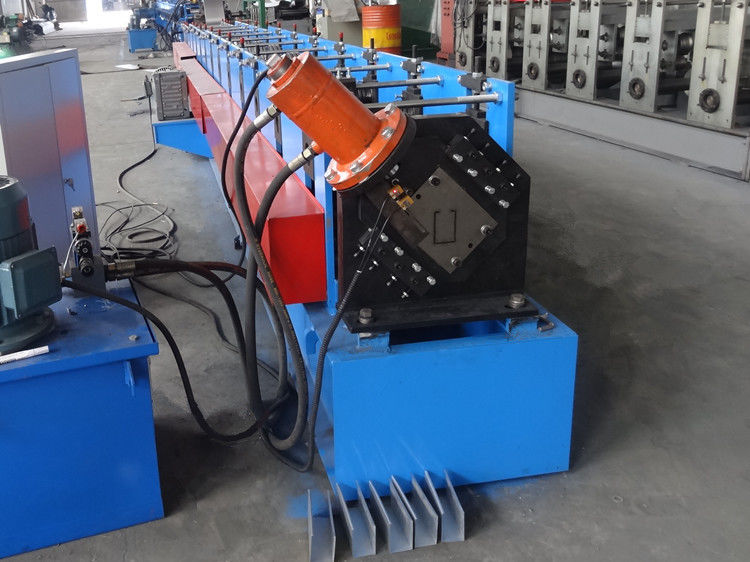

This roll forming machine is designed to produce lip channel sections according to client's requirement. Design of this machine is an Economical one but also perform perfect. Main components of this machine are:
> 3Ton Manual Decoiler
> Feeding Guide
> Roll Forming Mill (Chain Drive)
> Hydraulic Cutting Device
> Non Power Product Support Table
> PLC COntrol System
> Hydraulic System
If you need High Quality Machine, we also have another design:
> 3Ton Hydralic Decoiler
> Feeding Guide
> Roll Forming Machine (Gear Box Drive)
> Servo Flying Cutoff Device
> Autostacker
> PLC Control System
> Hydraulic System
> Water Cooling And Lubricating System
| 1 | Machine Structure: Integrated structure, H beam steel weled machine base, steel plate welded on the machine base as the roll stand | |
| 2 | Drive: Chain drive | |
| 3 | Control System: PLC contro system | |
| 4 | Forming Steps: 16 steps | |
| 5 | Forming Speed: 10-15m/min | |
| 6 | Main Motor Power: 7.5kw | |
| 7 | Shaft Material: 40Cr | |
| 8 | Roll Material: No.45 steel, heat treatment, with chrome plated | |
| 9 | Hydraulic Power: 4kw for cutting | |
| 10 | Cutting Blade Material: Cr12Mov, HRC58-62 | |
