30 - 40 M/Min Steel Roll Former , Omega Profile Section Making Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	Believe Industry Company
Certification:	CE
Model Number:	BELI RF18-27-35

Payment & Shipping Terms:

Packaging Details:	Main machine part nude packing and fastened inside the container with steel wire, control system and hydraulic system are wrapped with plastic film.
Delivery Time:	60 days
Supply Ability:	20 sets per months

Contact Now

Detailed Product Description

Machine:

Steel Omega Profile Roll Forming Machine

Speed:

30-40m/min

Forming Steps:

10 Steps

Drive:

Gear Box Drive

High Light:

metal stud and track roll forming machine

stud making machine

30-40m/min High Speed Steel Omega Profile Section Roll Forming Machine

Brief Description

This roll forming machine is designed to produce steel omega profile section. Speed of this machine can reach up to 30-40m/min according to clients' requirements. Design of this high speed machine is quite different from those machine with common speed of 10-15m/min.
30 - 40 M/Min Steel Roll Former , Omega Profile Section Making Machine

Design Of High Speed Omega Section Forming Machine

> 3Ton Double-head Automatic Decoiler.........	...........................................................................1 unit
> Roll Forming Mill With Gear Box Drive..........	...........................................................................1 unit

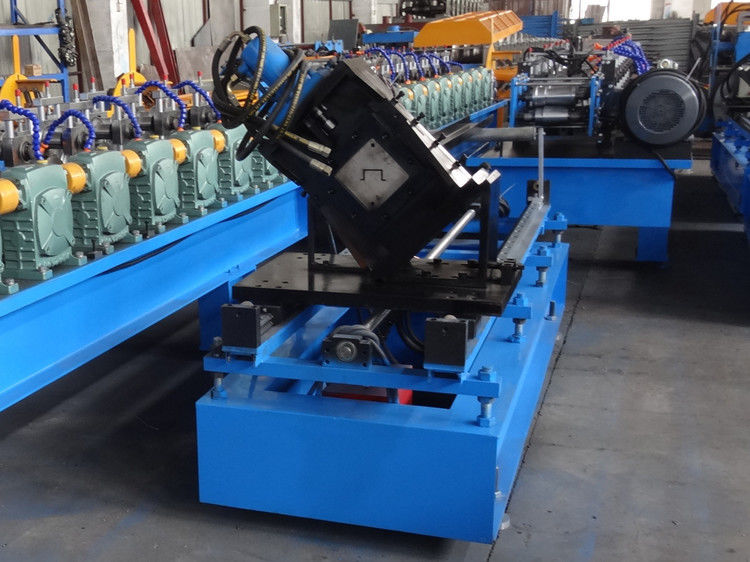

> Servo Flying Cutoff......................................	...........................................................................1 unit
> Auto Stacker................................................	...........................................................................1 unit
> PLC Control System.....................................	...........................................................................1 unit

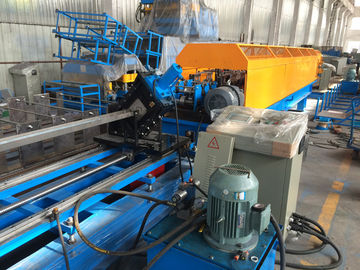

> Hydraulic System..........................................	...........................................................................1 unit
> Water Cooling And Lubricating System........	...........................................................................1 unit

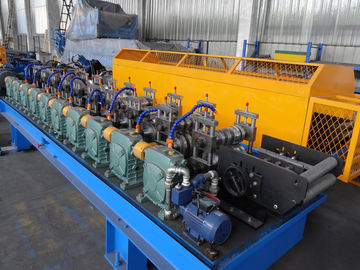

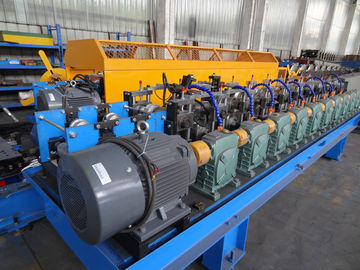

Gear Box Drive
Frankly, common machine design of chain drive and stop to cut type can not meet the high speed demand of 30-40m/min. Instead, we use gear box drive and flying cutting device as an alternative, which not only meet the speed requirement but also make the machine run stable at such a high speed.

Water Cooling And Lubricating System
Also, we equip a set of water cooling and lubricating system for this machine. This system can greatly reduce the wear of material surface caused by roll running at high speed.

Layout Of Whole Roll Forming Line
1. Work Direction: from left to right
2. Work Process: decoiling--roll forming--cutting--final product output
30 - 40 M/Min Steel Roll Former , Omega Profile Section Making Machine

Main Roll Forming Technical Parameters

1.	Machine Structure: beam steel welded machine base, guide pillar roll stand screwed on machine base
2.	Material Thickness: 0.8-1.0mm
3.	Forming Steps: 10 steps
4.	Forming Speed: 30-40m/min
5.	Main Motor Power: 15kw
6.	Roll Material: No.45 steel, quenching and tempering, surface with chromed plated more than 0.05mm thickness
7.	Shaft Material: 40Cr
8.	Cutting: hydraulic cutting, servo flying cutoff
9.	Hydraulic Power: 5.5kw
10.	Servo Motor Power: 2.2kw
11.	Cutting Blade Material: Cr12Mov, HRC58-62
