Multi Profiles Roll Forming Equipment , Steel Frame Cold Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	Believe Industry Company
Certification:	CE
Model Number:	3 Profile In 1

Payment & Shipping Terms:

Packaging Details:	Standard Seaworthy Packing
Delivery Time:	60 days
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Machine:

Light Steel Frame Roll Forming Machine

Material:

Galvanised Steel Coils

Material Thickness:

2mm

Drive:

Chain Drive

High Light:

metal stud and track roll forming machine

stud making machine

Multi-Profile Roll Forming Machine, Steel Profile Roll Forming Machines

Name: Multi Profiles Roll Forming Equipment , Steel Frame Cold Roll Forming Machine
Brand: Believe Industry Company
SKU: 3 Profile In 1
Rating: 4.5 (146 reviews)

Brief Description

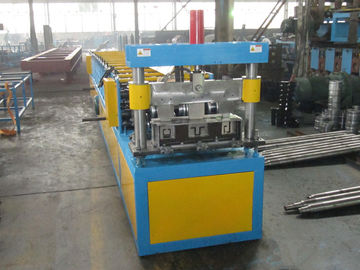

This roll forming machine can produce 3 different profiles of light steel frames at one time. 3 sets of rollers are loaded on 1 shaft and each set of rollers is for one profile. Also, there are 3 sets of cutting blades assembled on the machine. When the cutting length of these 3 profiles are the same, 3 profiles can be produced at the same time.

Advantages Of 3 Profile In 1 Design

* Save Machine Cost

All 3 sets of rollers share the same machine base, shaft, drive system, electric control system and hydralic system.

* Save Floor Area

Almost the space of 2 light steel roll forming lines is saved.

Main Technical Parameters

> Material Information
1. Applicable Material: Galvanized steel coils 2. Material Thickness: 2mm 3. Material Width: 168mm, 170mm, 163mm
> Manual Decoiler
1. Decoiler Mandrel Expansion And Tension: Manual adjust 2. Coil Releasing: No power supply 3. Loading Capacity: 5000kg 4. Max Coil O.D: 1500mm
> Roll Forming Unit
1. Forming Steps: 14 steps 2. Forming Speed: 10-15m/min 3. Main Motor Power: 5.5kw 4. Roller Material: No. 45 steel, quenching and tempering, surface with chrome plated ≥ 0.05mm 5. Shaft Material: 40Cr; Diameter: 70mm 6. Roll Forming Rollers: 3 sets 7. Machine Structure: H beam steel welded structrue work as the machine base 8. Roll Stands: Steel plate welded on the machine base as an integration 9. Drive: Chain drive

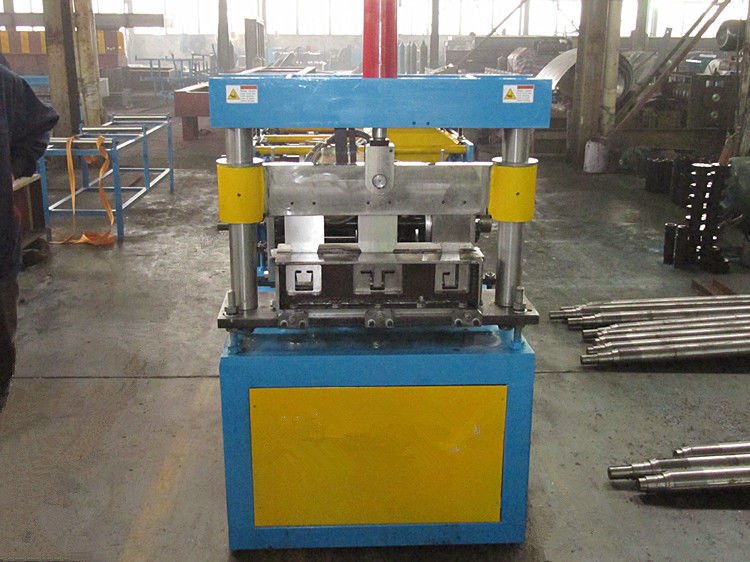

> Hydraulic Cutting Device
1. Cutting Blades: 3 sets 2. Cutting Type: hydraulic cutting, stop-to-cut 3. Cutting Blade Material: Cr12Mov, HRC58-62 4. Cutting Power: 4kw
> Electric Control System
1. Control System: PLC control system, Panasonic brand 2. Encoder: Omron Brand 3. Frequency Inverter: YASKAWA 4. Touch Screen: MCGS
