| Place of Origin: | Wuxi, China |
| Brand Name: | Beli |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us For Best Price |
| Packaging Details: | Main machine nude packing, electric and hydraulic system wrapped with plastic film |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 sets/ Month |
| Condition: | New Machine | Warranty: | 24 Months |
|---|---|---|---|
| After-sale Service: | Engineers Available To Serve Machine Overseas | ||
| High Light: | stud roll former,stud making machine |
||

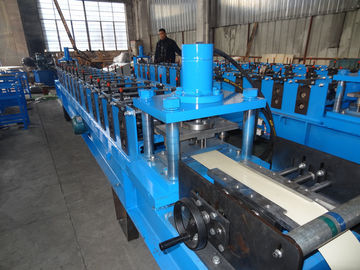

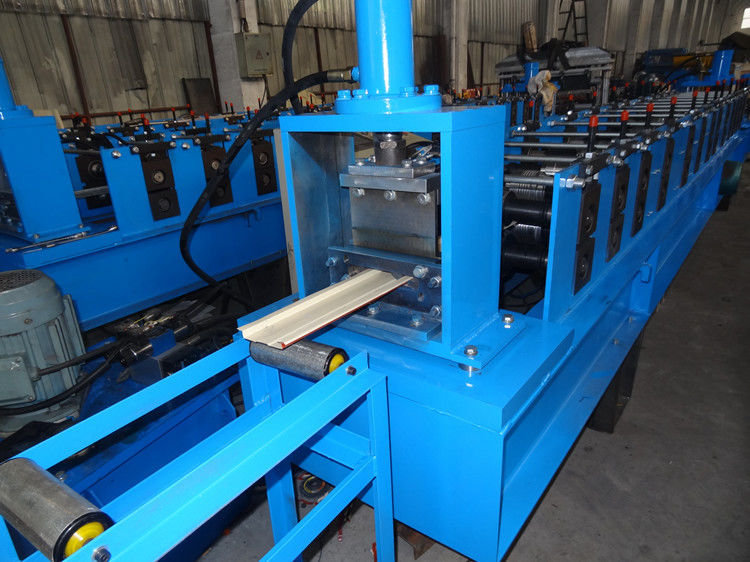

This roll forming machine is used to produce furring ceiling battens. This machine employs high grade steel panel structure and chain driving (transmission) system. Main process of this ceiling batten machine is decoiling, material feed guiding, punching holes and slots, roll forming and cutting.
| 1. 3Ton Manual Decoiler | 1 unit | ||
|
2. Main Roll Forming Machine |
a. Feeding Guide |
1 unit |
|
|
b. Punching Device |
|||
| c. Roll Forming Stations | |||
| d. Hydraulic Cutting Device | |||
| 3. Product Support Tables | 1 unit | ||
| 4. PLC Control System | 1 unit | ||
| 5. Hydraulic System | 1 unit | ||
1. Applicable materials: galvanized steel coils, PPGI coils
2. Material thickness: 0.5-0.8mm
3. Roll forming stations: 13 stations
4. Roll forming speed: 0-15m/min
6. Diameter of shafts: 60mm
7. Material of rollers: high grade 45# steel with heat treatment and chrome plated
8. Main motor power: 5.5kw
9. Cutting power: 4kw
10. Material of cutting blade: Cr12 mold steel
