Drywall Framing C Stud And Track Roll Forming Machine With PLC Control System

New Design Drywall Framing C Stud Machine, C Stud Roll Forming Machine

Brief Introduction Of C Stud Channel Roll Forming Machine

This roll forming machine is used to produce interior drywall framing c studs. This machine employs high grade steel panel structure and chain driving (transmission) system. Main process of this c stud machine is decoiling, material feed guiding, roll forming, product straightening and cutting.

Main Components

Machine Features

1. This c stud channel roll forming machine employs high grade steel welded machine base and high grade steel plated as machine structure and chain transmission.

2. This machine employs straightening device to ensure the perfect straightness of the finished product.

Main Technical Parameters

1. Applicable materials: galvanized steel coils

2. Material thickness: 0.5-1.2mm

3. Roll forming stations: 12 stations

4. Roll forming speed: 0-15m/min

6. Diameter of shafts: 60mm

7. Material of rollers: high grade 45# steel with heat treatment and chrome plated

8. Main motor power: 5.5kw

9. Cutting power: 4kw

10. Material of cutting blade: Cr12 mold steel

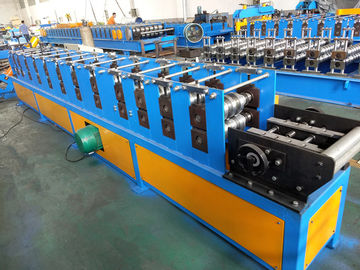

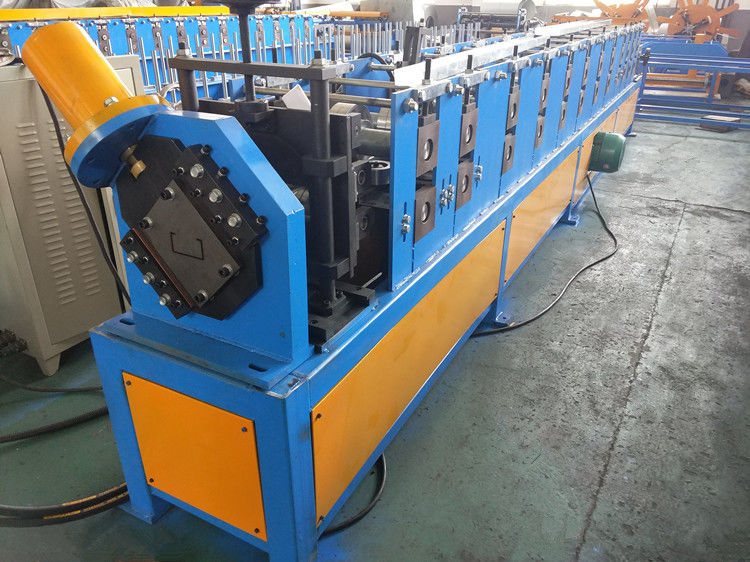

More Machine Pictures
