Efficient Roller Shutter Door Roll Forming Machine For Hydraulic Punching Steel L Profile

Steel L Profile Garage Door Track Roll Forming Machine With Hydraulic Punching

  Brief Description

This roll forming machine machine is designed to produce L profile garage door tracks according to customer's profile drawing and requirement. Main material used is galvanized steel with thickness of 1.5mm to 2.5mm. Main process of this machine is decoiling, guiding, pinch roll feeding, leveling, punching, roll forming, and cutting.

Machine Features

• Can make different sizes of L profile garage door track by manual adjusting the rollers and spacers.
• With 2 groups of pinch feeding rollers and 7-roller leveling device to flatten the material.
• Customers need to change cutting molds for different sizes of garage door track.
• With PLC control system
• Hydraulically powered punching and cutting unit
• Drive via 2.0" chain and sprocket
• High accuracy of cutting length with low burr

Work Process

Decoiling--Guiding--Pinch Roll Feeding--Leveling--Punching--Roll Forming--Cutting

  Components Of Steel L Section Production Line

  Main Technical Parameters

1. Applicable Material: cold rolled steel coils, galvanized steel coils

2. Material Thickness: 1.5-2.5mm

3. Main Roll Forming Power: 11kw

4. Forming Stations: 14 stations

5. Forming Speed: 10-15m/min

6. Hydraulic Power: 11kw

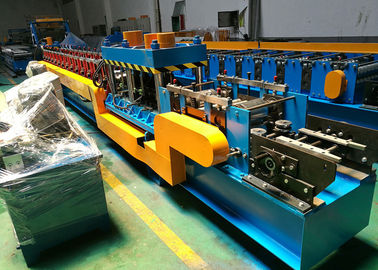

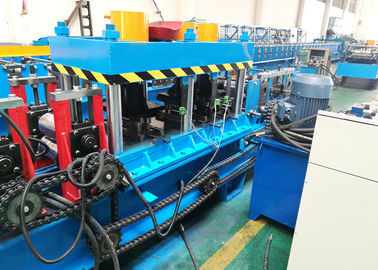

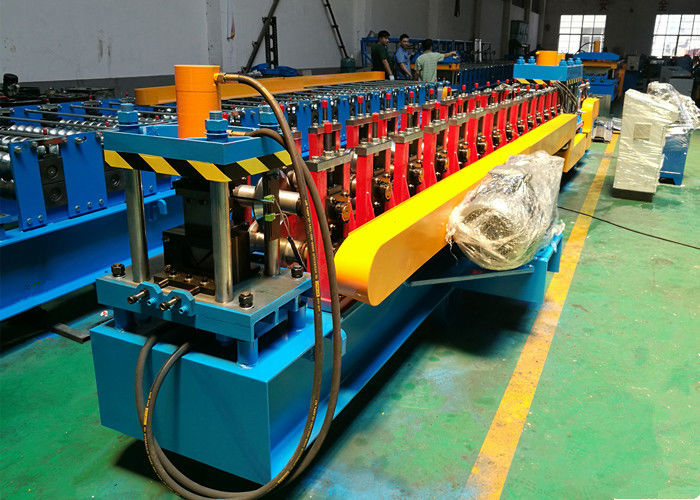

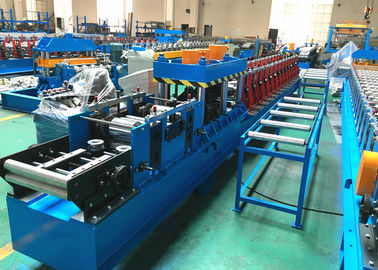

  More Pictures Of L Profile Garage Door Track Machine

BELIEVE INDUSTRY is dedicated to offer our customer with one-stop metal forming solutions, including developing and designing, manufacturing and installation, testing and training. BELIEVE INDUSTRY, with dedicated and professional team look forward to being the part of your metal forming solution.

Believe Industry Company have full range of roll forming machines for custom steel profiles. If you have any questions or need more machine details, please contact us.
