| Place of Origin: | Wuxi, China |
| Brand Name: | Beli |
| Certification: | CE |
| Model Number: | YX15-127 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 18000-20000 / set |
| Packaging Details: | Nude Packaging |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 sets/ Month |
| Type: | Cold Roll Forming Machine | Condition: | New |
|---|---|---|---|
| Warranty: | 18 Months | Voltage: | 380V / 50Hz / 3Ph |
| After-sales Service: | Enigineers Available To Service Machinery Overseas | ||
| High Light: | shutter door making machine,garage door roll forming machine |
||

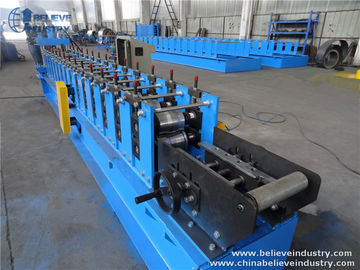

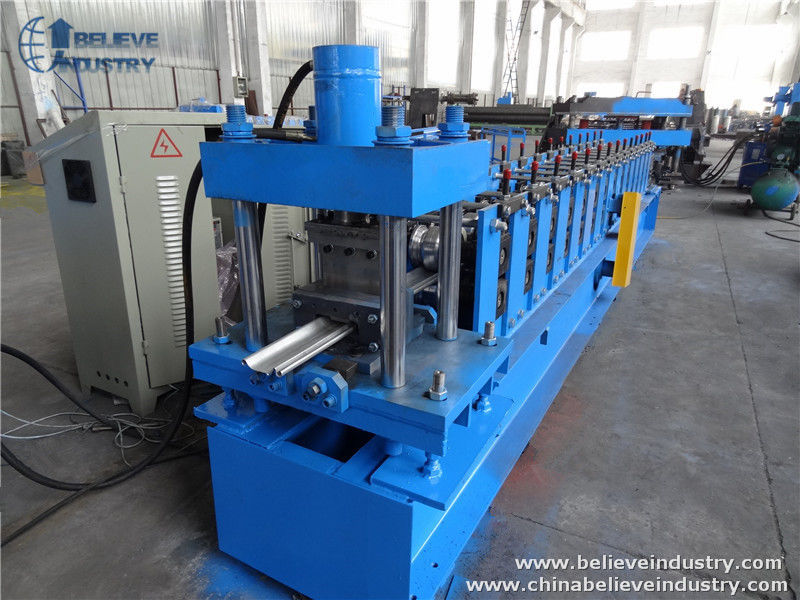

Roller Shutter Slats Roll Forming Machine
Description:
This machine is used to produce roller shutter door slats. The strip coils go through decoiling, guiding, roll forming, cutting, and then comes the end product. Main components of this machine are decoiler, roll former, cutting device, run-out table and control cabinet, etc. We use high quality steel for machine base and structure to ensure the great strength of the machine.
Main Machine Components:
1. 3Ton hydraulic decoiler............................................................1 set
2. Guiding device........................................................................1 set
3. Roll forming machine...............................................................1 set
4. Hydraulic cutting device...........................................................1 set
5. Run out tables.......................................................................2 sets
6. Hydraulic unit.........................................................................1 set
7. Control cabinet.......................................................................1 set
Technical Parameters:
| Main Machine Parameters | |
| 1. Applicable Material | Carbon Steel Coils, GI Coils, PPGI Coils, etc |
| 2. Material Thickness | 0.8-1.5mm |
| 3. Material Width | Depend on specific drawings |
| 4. Diameter of Shaft | 76mm |
| 5. Material of Shaft | High quality 45# carbon steel |
| 6. Material of Rollers | High quality 45# carbon steel |
| 7. Main Power | 7.5KW |
| 8. Forming Speed | 15-20m/min |
| 9. Forming Stations | 14 stations |
| 10.Cutting Type | Hydraulic cutting |
| 11. Material of Cutting Blade | Cr12 Mov |
