| Place of Origin: | CHINA |
| Brand Name: | Believe Industry Company |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Contact Us For Latest Machine Price |
| Packaging Details: | Main machine part nude packing, PLC control system and hydraulic system are wrapped with plastic film. |
| Delivery Time: | 45 to 55 days |
| Payment Terms: | 30% TT in advance, 70% TT after machine check and accept before delivery. |
| Supply Ability: | 20 sets per month |
| Type: | Cold Roll Forming Machine | Condition: | New Machine |
|---|---|---|---|
| Warranty: | 24 Months | After-sale Service: | Engineers Available To Serve Machine Overseas |
| High Light: | metal stud and track roll forming machine,stud roll former |
||

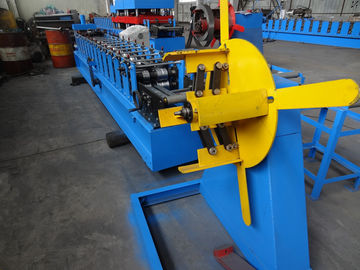

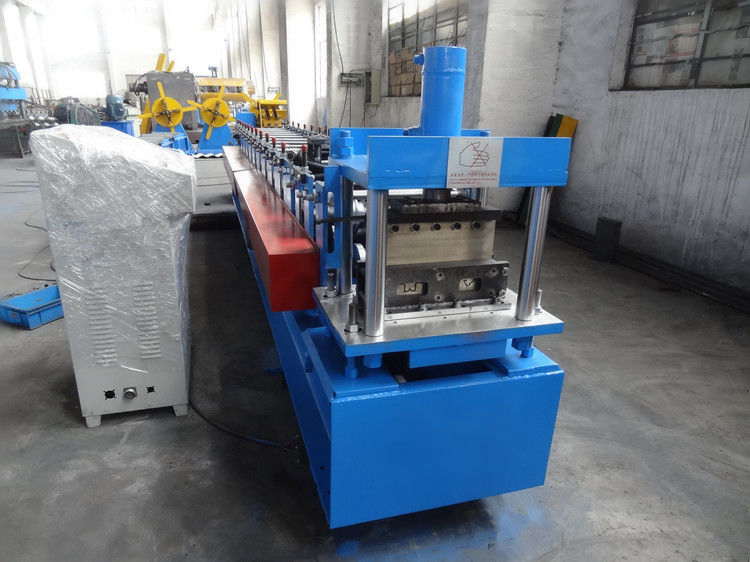

This roll forming machine can produce two different light steel profiles according to customer's profile drawing and requirement. The design of two different profiles produced in one machine helps to save a lot of machine cost and floor area for customers.
| 1. 3Ton Manual Decoiler | 1 unit | |
|
2. Roll Forming Machine |
a. Feeding Guide |
1 unit |
| b. Roll Forming Stations | ||

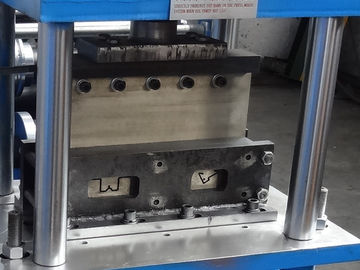

| c. Hydraulic Cutting Device | ||
| 3. Product Output Support Tables | 2 units | |
| 4. PLC Control System | 1 unit | |
| 5. Hydraulic System | 1 unit | |
Decoiling--Material Guiding--Roll Forming--Cutting
1. Applicable Material: galvanized steel coils
2. Material Thickness: 0.4-1.2mm
3. Main Motor Power: 7.5kw
4. Forming Steps: 12 stations
5. Forming Speed: 0-15m/min
6. Control System: PLC control system
7. Hydraulic Power: 3kw
8. Roll Material: No. 45 steel
9. Shaft Material: Cr40
10. Cutting Blade Material: Cr12Mov
Believe Industry Company has been engaged in cold roll forming machine designing and manufacturing for more than 15 years. We adopt advanced German roller design software COPRA to assist our machine design. We keep improving our technology to offer customers with best metal forming machine solution.
If you have any questions or need more machine details, please contact us.
