Gear Box Driven Highway Guardrail Roll Forming Machine For W Beam Profile

Gear Box Driven Highway Guardrail Roll Forming Machine For W Beam Profile

    • Gear Box Driven Highway Guardrail Roll Forming Machine For W Beam Profile
    • Gear Box Driven Highway Guardrail Roll Forming Machine For W Beam Profile
    • Gear Box Driven Highway Guardrail Roll Forming Machine For W Beam Profile
    • Gear Box Driven Highway Guardrail Roll Forming Machine For W Beam Profile
  • Gear Box Driven Highway Guardrail Roll Forming Machine For W Beam Profile

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Price: USD 70000-80000 / set
    Packaging Details: Main guardrail rollformer is fastened inside of the container with nude packing.
    Delivery Time: 60 to 75 days
    Payment Terms: 30% TT as advance payment, 70% TT before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: Highway Crash Barrier Manufacturing Equipment For W Beam Profile Application: Used To Produce 2 Wave Steel Guardrail Panels
    Control System: Panasonic PLC Control System Voltage: 380V, 3 Phase, 50Hz
    After-sales Service: Enigineers Available To Service Machinery Overseas Machine Warranty: 24 Months

     W Beam Profile Highway Guardrail Roll Forming Machine With Gear Box Drive

      Description
    This cold rollforming machine is able to produce W beam guardrail panels with max 3.5mm thick. Processing flow of this machine includes: decoiling-flattening-punching-forming-cutting. This machine adopts automatic PLC control and enjoys high quality forming and high speed production.

    Machine Features

    • Fully automatic production line combining levelling, punching, roll forming and cutting together.
    • Forming speed can reach up to 12-15m/min, and whole line speed is around 8m/min.
    • Hydraulically powered for punching and cutting.

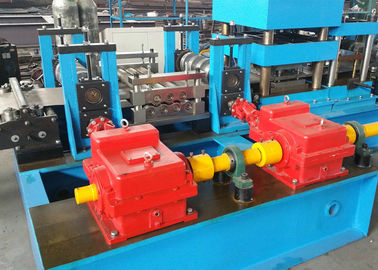

    • Electrically driven via gear box and universal joint.
    • Cast iron roller stands with great strength.
    • Rollers and shafts go under heat treatment and with 0.05mm thick Chrome plated.
    • Whole line controlled PLC control system.
    • Exact accuracy of cutting length with low burr cutting.


      Components of W Beam Guardrail Production Line

    No. Main Components Of Whole LineQuantity
    1. 3Ton Hydraulic Uncoiler -- Hydraulically Expanding And Electrically Unwinding1 set
    2. W Beam Guardrail Rollformer Linea. Entry Feeding Guide 1 set
    b. 7-Roller Leveller1 set
    c. Punching Unit1 set
    d. Roll Forming Unit1 set
    e. Cutting Device1 set
    f. Gear Box Drive System1 set
    3. Run Out Support Frame -- Unpowered Type2 sets
    4. Electric Control Cabinet -- Touch Panel With Button Operate Type1 set
    5. Hydraulic Station -- Punching unit and cutting unit share one hydraulic station1 set

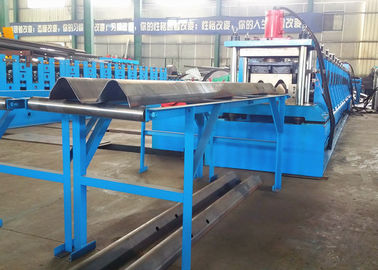

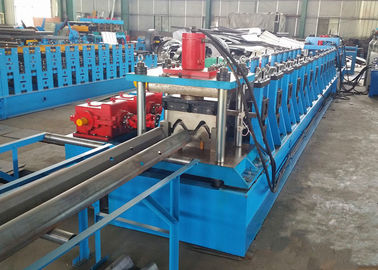

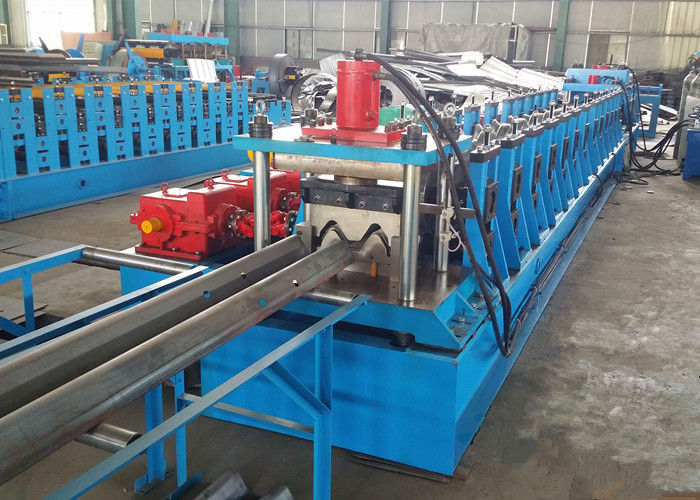

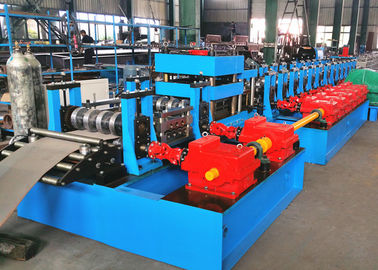

      More Pictures For Reference
