3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine

3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine

    • 3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine
    • 3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine
    • 3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine
    • 3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine
  • 3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-HG460

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Nude Packing and fastened inside of the container with steel wire
    Delivery Time: 60 to 75 days
    Payment Terms: 30% TT in advance, 70% TT before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Application: For Producing 3 Wave / Thrie-beam Highway Guardrails Control System: PLC Control System
    Drive Motion: Electrically Driven Via Chain And Sprocket Machine Speed: 10-15m/min
    Roller Stands: Cast Iron / Forged Iron Roller Stands Machine Base: H Beam Steel Welded Structure With Gantry Milling

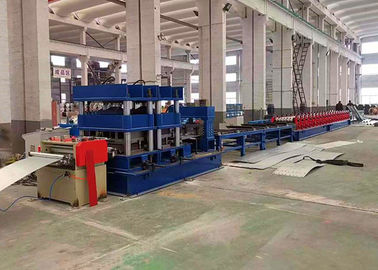

    Highway Crash Barrier Rollforming Machine Working On Site

    3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine





    Brief Description

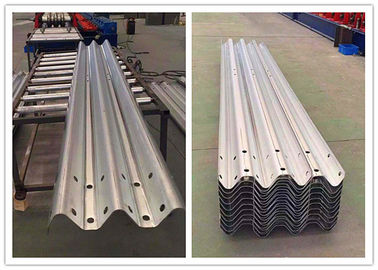

    This highway guardrail roll former is built for producing 3-wave guardrail panels with 2.5-4.0mm thick material. Main material can be roll formed are galvanized steel coils and hot rolled steel coils. H beam steel welded machine base and cast iron / forged iron roller stands ensure the great strength of the machine, and gear box transimission guarantee the stability and long lifetime.





    Whole Line Components

    • 5Ton Hydraulic Decoiler
    • Levelling Unit
    • Hydraulic Punching Unit
    • Pre-cutting Device

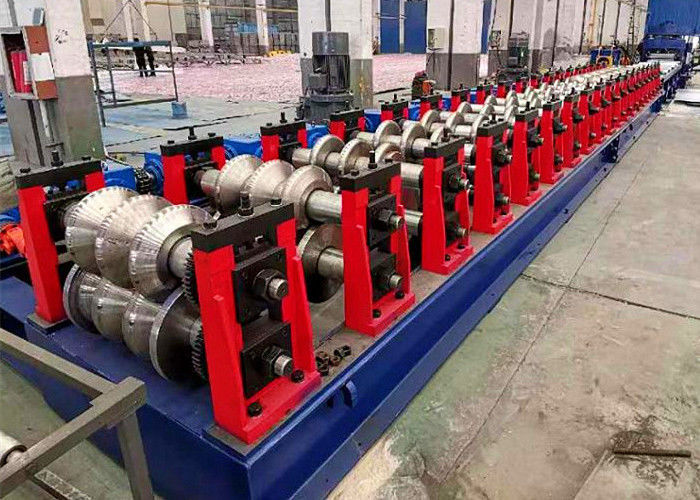

    • Roll Forming Unit
    • Drive System
    • Electric Control System
    • Hydraulic System
    • Receiving Tables

    3 Wave Corrugated Highway Guardrail Rollformer, Thrie-beam Crash Barrier Roll Forming Machine

    Work Flow: decoiling--->levelling--->punching--->pre-cutting--->roll forming--->final product output





    Technical Specifications

    No.  Item  Specifcications
    1.  Control System  Panasonic PLC control system
    2.  Forming Stations  19 stations / forming steps / roller stands
    3.  Machine Speed  10-15m/min
    4.  Main Forming Power  55kw for roll forming
    5.  Roller Material  SKD-11 with heat treatment HRC60, chromed with 0.05mm thickness
    6.  Shaft Material  40Cr with fine machining, 105mm in diameter
    7.  Drive System  Electrically driven via gear box and universal joint
    8.  Cutting Type  Hydraulic cutting; cutting to length before roll forming
    9.  Hydraulic Power  7.5kw for punching and cutting



    Contact us for more machine information.
