Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff

Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff

    • Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
    • Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
    • Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
    • Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff
  • Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Nude packing and fastened inside of the container by steel wire
    Delivery Time: 60 to 90 days
    Payment Terms: 30% TT in advance, 70% T/T, L/C after machine check and accept before machine delivery
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Application: For Producing 3 Wave Highway Crash Barrier Forming Steps: 17 Steps
    Drive Motion: Gear Box Drive Cutting Type: Servo Flying Cutting
    Roller Material: GCR15 Shaft Diameter: 90mm

    Thrie Beam Highway Guardrail Roll Forming Machine With Servo Flying Cutoff



    Brief Description

    Believe Industry Company manufactures cold roll formier for w profile guardrail panel and thrie-beam highway guardrails according clients' requirement. This highway crash barrier production line is fully automatic, which consists of punching system, roll forming system, cutting system and control system, hydraulic system, etc.

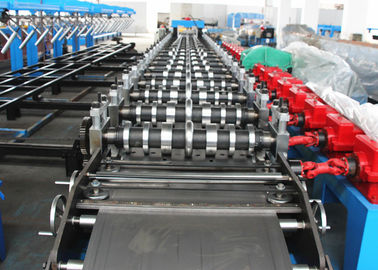

    Main components of the whole line are decoiler, feeding guide, levelling system, punching unit, roll forming unit, cutting device and control system and hydraulic system. As the guardrail panel thickness may be max. 3.5mm and needs punching holes and slots on, leveller and punching unit are essential. For perfect performance, a highway guardrail production line is always applied with GCr15 steel rollers and gear box drive system.

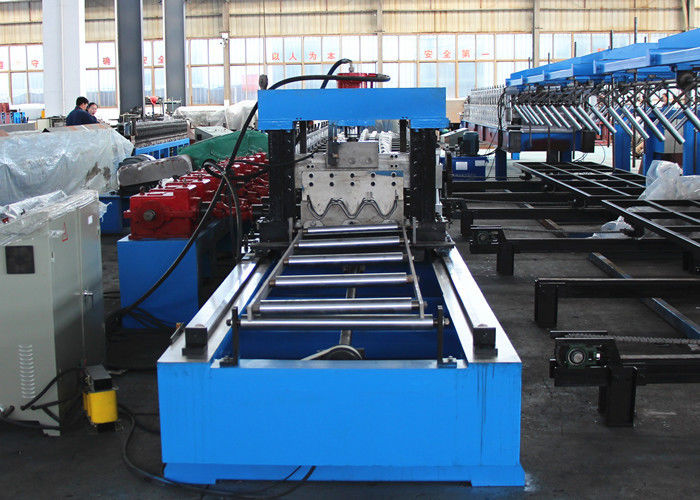

    Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff





    Machine Advantages

    • Machine runs stable with strong machine base and gear box transmission
    • Formed products with exact profile as required and high degree of cutting length accuracy
    • Servo flying cutoff increases the speed of whole roll forming line

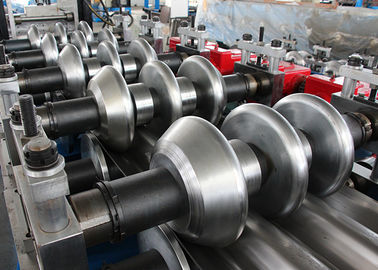

    • GCR15 rollers, solid 40Cr shafts have great strength and are all chromed for anti rusting
    • High production effeciency by adding servo flying cutoff; in this way whole line can run continuously without need to stop to cut to length
    • Low burr cutting and low noise by hydraulic mold cutting device
    • Easy operation of the machine, operation language can be set as Chinese, English, Spanish, or any other languages used by clients
    • Low cost in maintenance
    • Scarcely any part of the control system are easily damaged due to that we only cooperate with famous brand such as Siemens, Panasonic, Yaskawa and domestic famous brand such as HRB, Beijing Huade, etc





    Most Important Technical Specifications

    • Material Information

    1. Material Type: carbon steel coils, galvanized steel coils

    2. Material Thickness: 2.0-3.5mm

    3. Material Width: approx. 740mm



    • Most Important Technical Parameters

    1. Control System: PLC control system

    2. Roll Forming Speed: 10-15m/min

    3. Roller Stations: 16 stations

    4. Main Motor Power: 37KW

    5. Drive System: electrically drive by gear box with universal joint

    6. Roller Material: GCr15, with heat treatment and chromed

    7. Shaft Material: 40Cr, 110mm in diamater

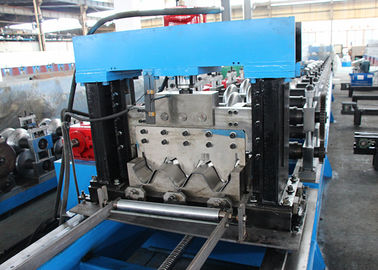

    8. Cutting Type: servo flying cutoff; hydraulic cutting type

    9. Hydraulic Power: 7.5KW

    10. Servo Motor Power: 2.2KW

    11. Cutting Blade Material: Cr12 Mov, HRC58-62

    12. Punching Mold Material: Cr12 Mov, HRC58-62

    Fully Automatic Highway Guardrail Roll Forming Machine With Servo Flying Cutoff

    Final Product And Application Of Thrie-beam Crash Barrier
