Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY COMPANY |
Certification: | CE |
Model Number: | BELI-ROOF |
Minimum Order Quantity: | 1 set |
---|---|
Price: | According to customers' requirement |
Packaging Details: | Covered with plastic film and fixed inside of the container with steel wire and fasteners |
Delivery Time: | 45 to 60 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 45 sets per quarter |
Machine Type: | Cold Roll Forming Machine | Machine Function: | Can Produce 5 Rib/6rib Roofing Sheets |
---|---|---|---|
Control System: | Automatic PLC Control System | Machine Speed: | 0-20m/min |
Cutting Type: | Hydraulic Powered Cutting | Hydraulic Power: | 5.5kw |

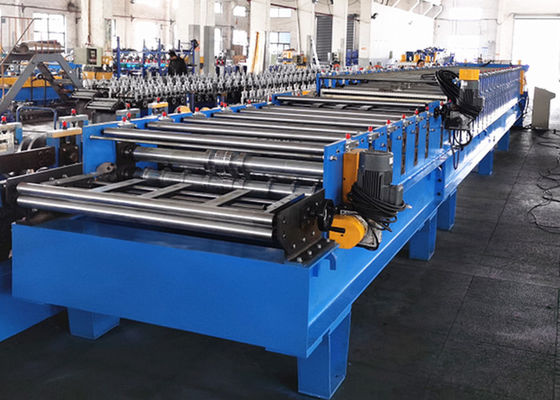

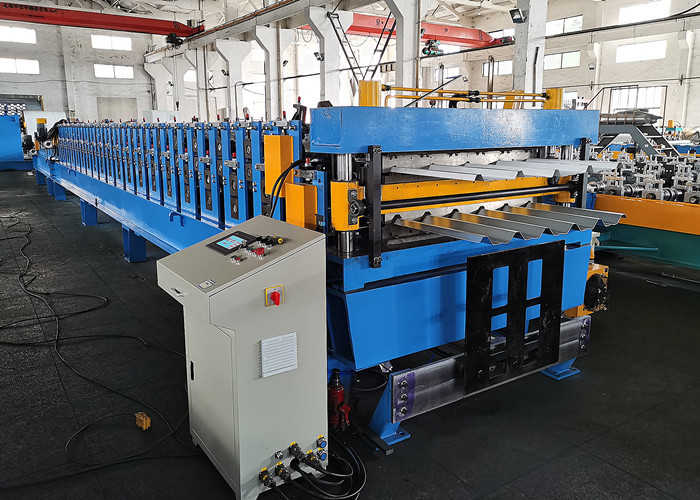

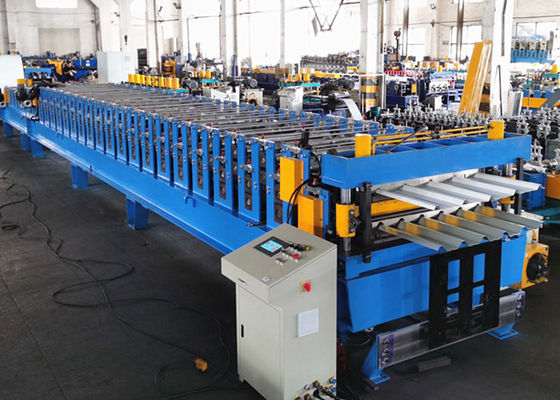

5 Rib 6 Rib Double Layer Metal Roofing Sheet Roll Forming Machine
Believe Industry Company has a wide range of roll forming solutions for metal roofing construction. As per customers' different requirements on raw material type, material thickness, material strength and line speed, we have different machine designs. This double layer machine is able to produce 5 rib and 6 rib roofing sheets.
5 Rib 6 Rib Roofing Sheet Profiles
Main Components Included In This Double Layer Rollforming Line
Workflow: coil uploading - coil unwinding - feeding and guiding - (pre-cutting) - roll forming - cutting - auto stacking
Main Technical Parameters

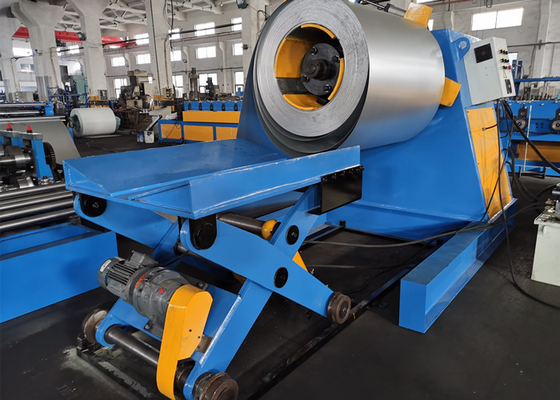

1. Decoiler type: hydraulic decoiler, hydraulic loosening and tightening, electric unwinding
2. Loading capacity: 8000kgs
3. Pre-cutting device: electrically powered pre-cutting device

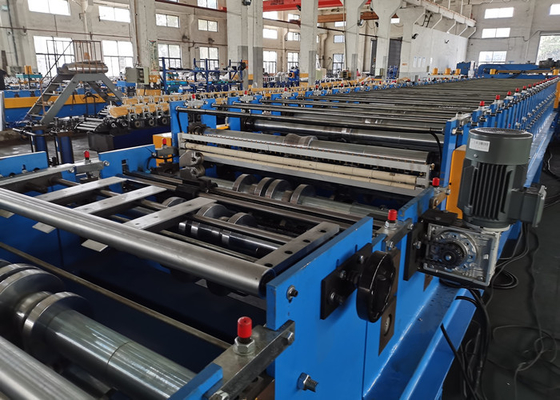

4. Roll forming machine structure: high quality H beam steel welded machine base, steel-plate-welded machine support structure
5. Forming steps: 18-28 steps according to final design
6. Material of rollers: high quality No.45 steel with heat treatment and chromed
7. Material of shafts: 40Cr solid shafts, with 75mm inner diameter
8. Drive system: electrically motor drive via chain
9. Main power for roll forming: 11kw
10. Cutting type: hydraulically powered cutting, stop cutting
11. Material of cutting blade: Cr12Mov, HRC58-62
12. Hydraulic power: 5.5kw

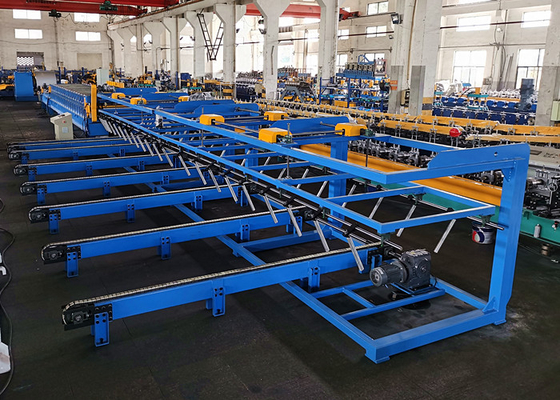

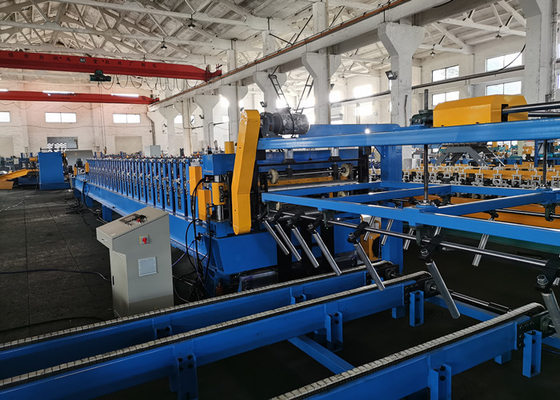

13. Runout Table: 6-meter automatic stacker
More Pictures For Reference
