4 Rib Profile Metal Roofing Sheet Roll Forming Machine With Electric Shear

Product Details:

Place of Origin:	CHINA
Brand Name:	Believe Industry Company
Certification:	CE
Model Number:	Metal Roofing Sheet Machine

Payment & Shipping Terms:

Packaging Details:	Nude Packing And Fastened Inside Of The Shipping Container With Steel Wire
Delivery Time:	45 to 60 days
Payment Terms:	T/T, L/C
Supply Ability:	60 sets per quarter

Contact Now

Detailed Product Description

Machine Function:	Used For Producing Metal Roofing Sheets	Driving Method:	Electrical Motor Drive
Transmission System:	Chain Transmission	Cutting Type:	Electrical Cutting
Control System:	PLC Control System	Line Speed:	15m/min
High Light:	roofing sheet roll forming machine , metal roofing roll former

Rib Profile Metal Roofing Sheet Roll Forming Machine With Electric Shear

Rib profile metal roofing sheet roll forming machine is designed to produce trapezoidal profile roof and wall claddings. Believe Industry Company offers roll formers for making metal roof & wall sheets with 3 ribs, 4 ribs, 5 ribs, 6 ribs and high ribs, etc.

4 Rib Profile Metal Roofing Machine

This 4 Rib profile roofing sheet machine can produce trapezoidal profile sheets for residential, commercial, rural and industrial roofing and cladding.

1. Raw Material

* Material Type: galvanised coils, color steel coils, zinc-aluminium coils

* Material Thickness: 0.3-0.8mm

2. Profile Information:

* Overall Width/Sheet Width: 1100mm

* Cover Width: 914mm

* Ribs: 4 ribs

3. Control System: PLC control system

4. Drive System: electrically motor drive with chain transmission

5. Cutting Type: electrical cutting (cutting speed is faster than hydraulic cutting)

4 Rib Profile Metal Roofing Sheet Roll Forming Machine With Electric Shear

For Reference Only

Main Components

This 4 Rib trapezoidal sheet machine mainly consists of 5Ton decoiler, feeding guide, roll forming unit, electrical cutting unit, collecting table, control cabinet, etc.

Working Flow

Decoiling -- feeding & guiding -- roll forming -- cutting -- finished products collecting 4 Rib Profile Metal Roofing Sheet Roll Forming Machine With Electric Shear

Main Specifications of the 4 Rib Profile Sheet Machine

Decoiling Unit

1. Decoiler Type: manual decoiler / hydraulic decoiler

2. Loading Capacity: 5Ton/6Ton/8Ton

3. Max Coil Width: 1500mm

4. Coil Inner Diameter: 450-530mm

5. Coil Outer Diameter: Max 1200mm

Roll Forming Unit

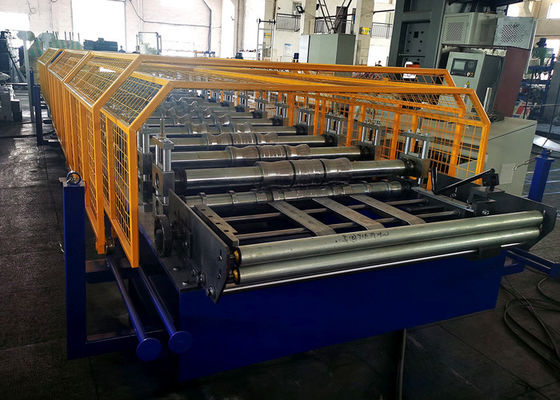

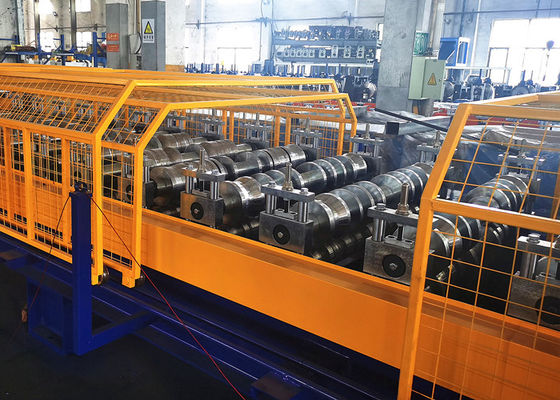

1. Rolling steps: 18 steps (18 roller stands)

2. Shaft: 75mm in diameter; 40Cr

3. Roller material: high quality 45# steel, Chromed

4. Power for roll forming: 5.5kw

5. Drive and transmission: electrically motor drive with chain transmission

6. Whole line speed: 15-20m/min

7. Covered with metal mesh to protect the safety of both human and the machine

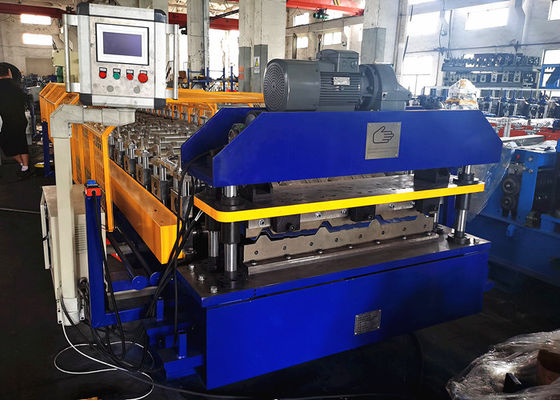

Cutting Unit

1. Cutting Type: electrical cutting system

2. Cutting blade material: Cr12Mov, HRC58-62

3. Cutting power: 4kw

4 Rib Profile Metal Roofing Sheet Roll Forming Machine With Electric Shear

For Reference Only

If you need more details about roofing sheet roll forming machine, please Contact Us!
