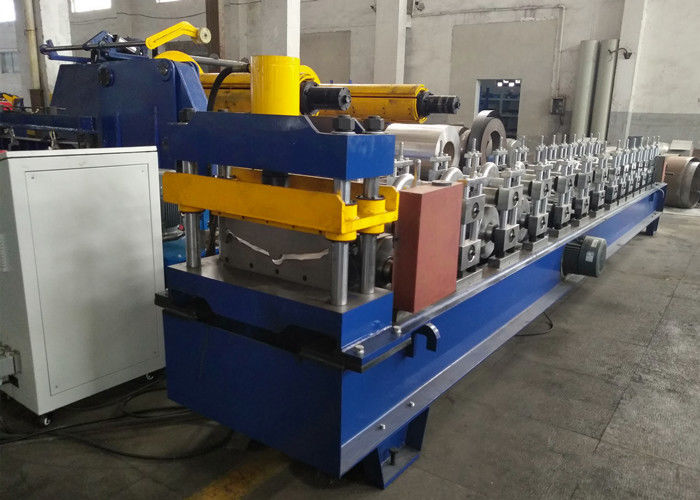

Metal Roof Ridge Roll Forming Machine, Galvanized Steel, Color Steel Coated Ridge

Metal Roof Ridge Roll Forming Machine, Galvanized Steel, Color Steel Coated Ridge

Brief Description

Metal roofing has many advantages such as light weight, long service life, fire resistance and heat conduction, etc. Believe Industry Company designs and manufactures roll forming machine for metal roofing series. Metal roofing sheets, metal tiles, metal roof ridge, metal valley, roof trim, steel roof truss, roof battern are all produced by cold rollformer.

Metal roof ridge machine is designed for producing roof ridge caps with galvanized steel coils and color coated steel coils. The material goes through decoiling, feeding, roll forming, cutting and then comes out the final product. According to customers' requirement, we make machine for plain roof ridge and step roof ridge.

Some Ridge Profiles For Reference

Most Important Systems That Included In A Metal Roof Ridge Production Line

• 3Ton Decoiler
• Roll Forming Mill
• Cutting Unit
• Drive System
• Electrical Control System
• Hydraulic System
• Exit Receiving Table

Main Machine Technical Parameters

1. Decoiler Type: manual adjust type, no power drive; electrical decoiler is optional

2. Roller Stands: 14 stands; 14 forming steps

3. Material Of Rollers: No. 45 steel (ASTM1045) with heat treatment; chromed with 0.05mm thickness

4. Material Of Shafts: 40Cr with heat treatment; 75mm in diameter

5. Main Motor Power: 5.5KW

6. Drive Motion: electrically chain drive; 1.2" single chain drive

7. Cutting Type: hydraulic cutting; stop cutting, whole line stops when cutting

8. Hydraulic Power: 4KW

9. Line Speed: 8-15m/min including cutting
