Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY |
Certification: | CE |
Model Number: | BELI-ROOF |
Packaging Details: | Nude packing and fastened inside of the container, electric and hydraulic parts are wrapped with plastic film |
---|---|
Delivery Time: | 60 days |
Payment Terms: | 30% TT in advance, 70% TT before shipment |
Supply Ability: | 45 sets per quarter |
Features: | 2 Profiles Are Produced In 1 Machine | Application: | Used For Producing Metal Roof And Wall Claddings |
---|---|---|---|
Control System: | PLC Control System | Drive System: | Electrical Motor Drive |
Machine Speed: | 3-5m/min For Tiles; 10-15m/min For Plain Roofing Sheet | Raw Material Can Be Roll Formed: | Galvanized Steel Coils; Color Coated Steel Coils |
Double Layer Roll Forming Machine
Double layer roll forming machine has two sets of roll forming units, and each layer runs individually to produce a different sheet for roof or wall cladding. Believe Industry Company offers double layer roll formers for corrugated roof/wall sheets, trapezoidal (rib profile, box profile) roof/wall sheets, tile effect roof panels, etc.

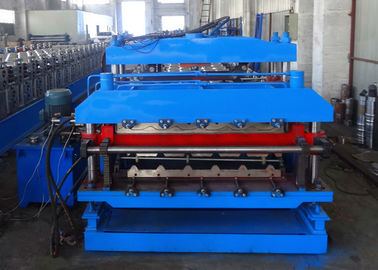

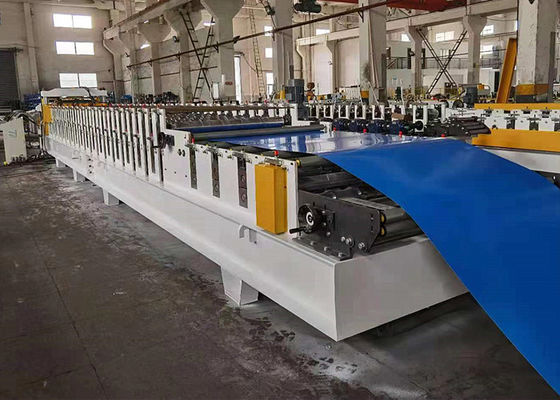

2 in 1 Metal Sheet Roll Forming Machine for Tile Effect Roof Panel and Trapezoidal Sheet

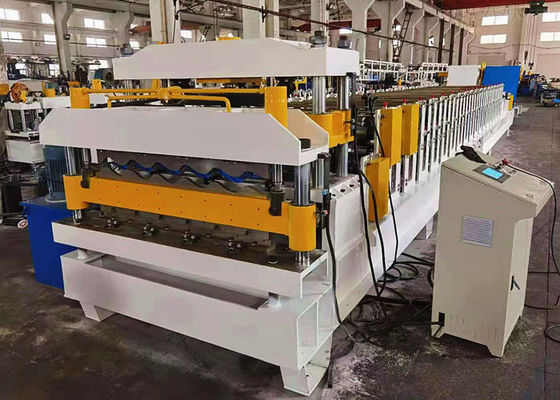

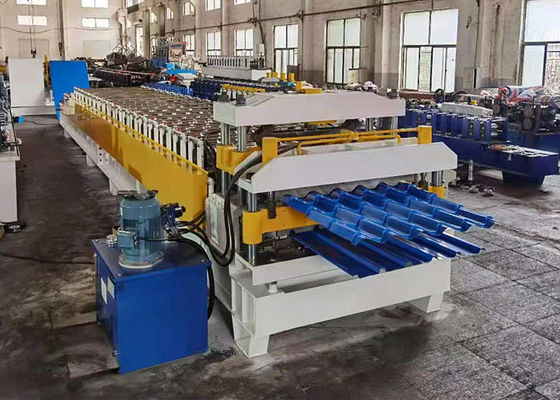

This 2 in 1 metal sheet machine has 2 layers. Upper layer is designed to produce tile effect roof panels and under layer to produce trapezoidal sheets used for both roof and wall cladding. The two roll forming layers share the machine base, electric motor and hydraulic cutting system.
1. Raw material: * Material type: Galvanized steel coils; colour coated steel coils * Material thickness: 0.2-0.8mm 2. Double roll forming units: * Upper Layer: tile effect roof panels roll forming * Under Layer: plain roof and wall sheets roll forming 3. Control System: PLC control system 4. Drive System: electrically motor drive 5. Machine Speed: 10-15m/min for plain roof & wall sheets; 3-5m/min for tile effect roof panels |

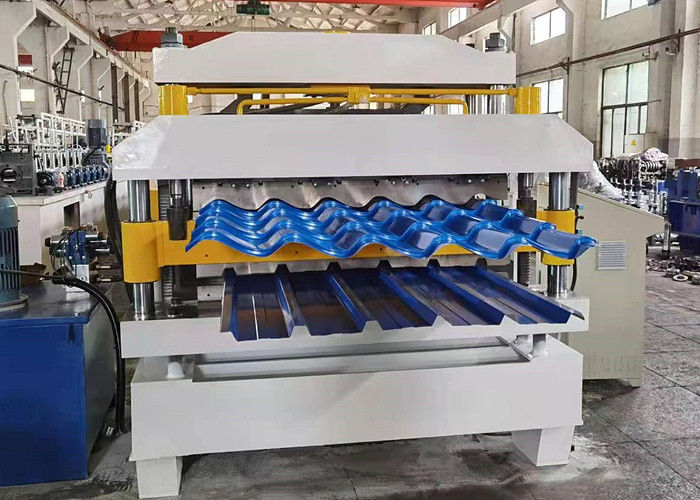

Tile Effect Roof Panel (For Reference Only) Plain Roof & Wall Sheet (For Reference Only) |
Main Components of the Metal Sheet Roll Forming Line
Main Components:
5Ton Uncoiler, feeding guide, roll forming unit, hydraulic stamping unit(for tile effect panels), hydraulic cutting system, collecting table
Working Flow:
Coil unwinding -- feeding and guiding -- roll forming -- stamping -- cutting to length -- final product collecting
For Reference Only
The Most Important Technical Specifications

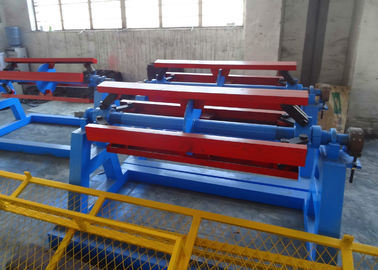

Decoiler

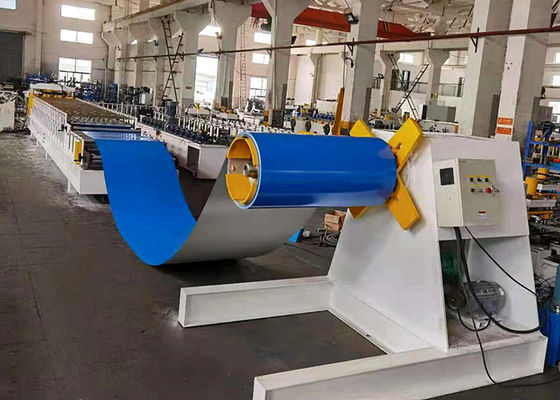

5Ton Hydraulic Decoiler
1. Decoiler capacity: 5000kgs (6Ton decoilerand 8Ton decoiler is optional)
2. Decoiler Type: 4kw electric feeding; 3kw hydraulic expanding and tensioning (mechanic/manual decoiler is optional)
3. Coil Innner Diameter: 450mm - 520mm

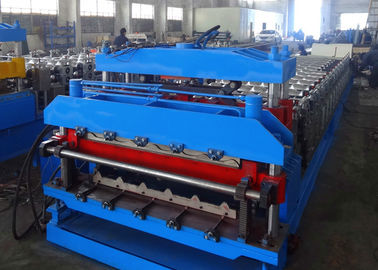

Main roll forming unit

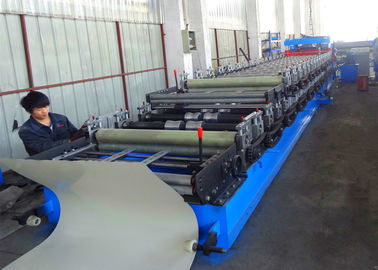

1. Roller stations:
* Upper layer: 16 stations for tile profile;
* Under layer: 20 stations for plain roofing profile
2. Main power: 5.5KW for roll forming
3. Material of rollers: No.45 steel, Chromed with 0.05mm thickness
4. Shaft Material: 75mm in diameter; 40Cr with heat treatment, chromed with 0.05mm thickness
5. Drive and transmission: electrically motor drive with chain transmission
6. Roll forming speed: 15m/min (not including stamping & cutting)
7. Control system: PLC control system (Siemens, Panasonic and other famous brand is optional)
Hydraulic stamping & cutting unit
1. Hydraulic power: 7.5kw for stamping tile steps and cutting
2. Material of cutting blade: Cr12 Mov, HRC58-62
3. Cutting type: hydraulic powered cutting; stop cutting
4. Cutting to length: operated via touch screen as required
Finished Products For Reference
Tile Effect Panels Roof & Wall Sheet
If you need detailed machine specifications, please let us know more about your requirments.
