Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY |
Certification: | CE |
Model Number: | BELI-SCAFFOLD |
Packaging Details: | Standard seaworthy packing |
---|---|
Delivery Time: | 60to 75 days |
Payment Terms: | 30% TT in advance, 70% TT before shipment after machine check and acceptance in our factory |
Supply Ability: | 45 sets per quarter |
Other Machine Name: | Scaffolding Platform Rollforming Line | Application: | Use To Produce Scaffold Panels, Scaffolding Boards |
---|---|---|---|
Primary Material: | Galvanized Steel Coils, Hot Rolled Coils, Cold Rolled Coils | Control System: | PLC Control With Operating Cabinet |
Drive System: | Driven Via Gear Box And Universal Joint | Sheet Thickness: | 1.5mm To 2.0mm Thick |
2mm Thick Scaffold Plank Roll Forming Machine, Scaffold Deck Rollforming Line
Description

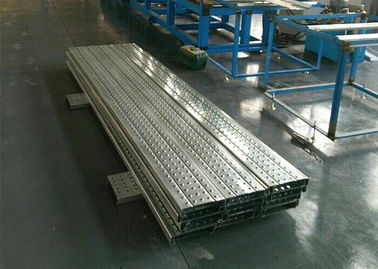

Scaffolding is a temporary structure that allows construction workers to access the different areas of construction. Steel scaffolding planks has beem traditionally used because it is resistant, hard, stainless and lasts long.
This scaffold plank rollforming line is a one-stop solution for users. Whole production line consists of decoiler, levelling unit, hydraulic punching unit, roll forming unit and cutting device. With PLC control system and touch screen operating panel, users can key in required production data and start the machine easily.
Technical Data

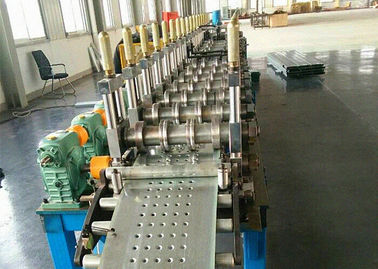

1. | Roll Forming Stations | 18 stations / forming steps |
2. | Forming Speed | 10-15m/min |
3. | Materail Can Be Roll Formed | GI coils, Hot Roll Coils, Cold Roll Coils, max. 3000kgs |
4. | Material Thickness | 1.5mm to 2.0mm |

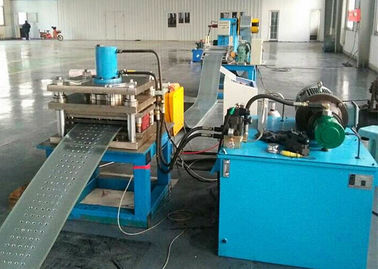

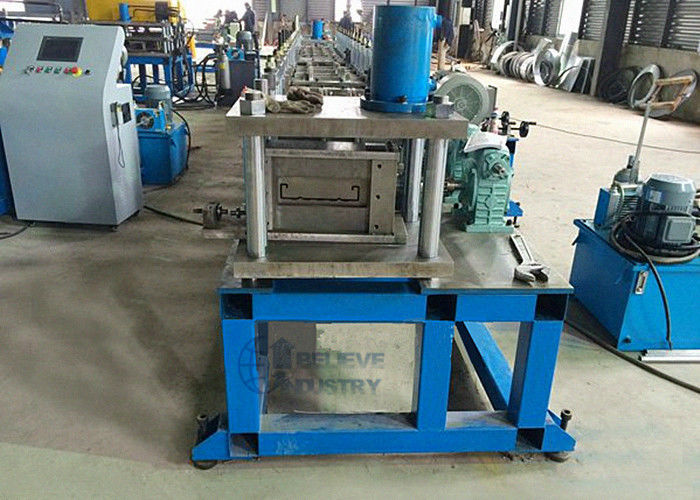

5. | Cutting Type | Hydraulic cutting, stop-to-cut device |
6. | Control System | PLC with operating cabinet |
7. | Drive System | Electrically driven by gear box and universal joint |
8. | Machine Speed | 10-15m/min (optionally high speed machine design) |

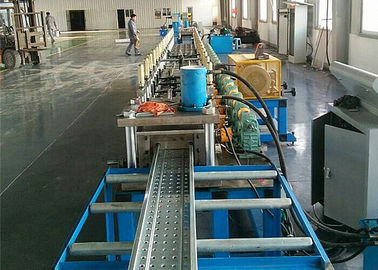

Main Components And Layout Of Steel Plank Rollforming Line
1. Work Process: coil unwinding -- levelling -- punching -- material feed-in --roll forming -- cutting -- final product
2. Work Direction: left -- right
Machine Video
Contact Person: Mr. Darren Mao
Tel: +86 186 16927760
Fax: 86-510-8827-9556
