Green House Cultivation Gutter Rollformer, Mobile Growing Gutter Machine

Green House Cultivation Gutter Rollformer, Mobile Growing Gutter Machine

Brief Intruction

Believe Industry Company offers metal sheet solutions for different industries such as metal roofing sheets rollformer for steel construction industry, strut channel rollformer for solar industry, cable tray rollforming line for electric power construction industry, and storage rack rollforming equipment for logistic warehouse storaging industry, etc.

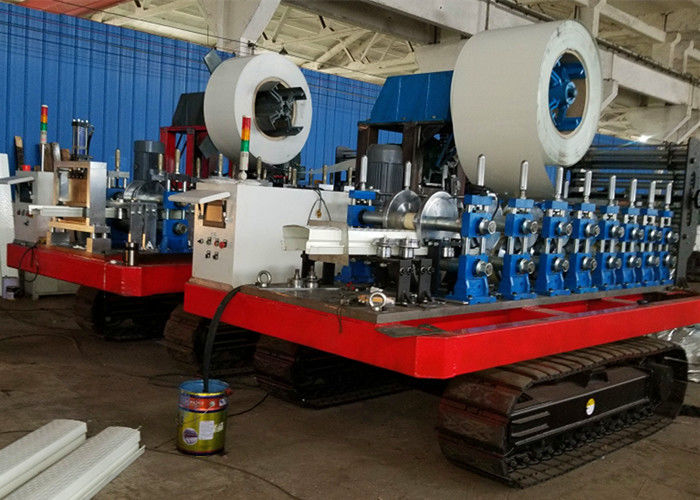

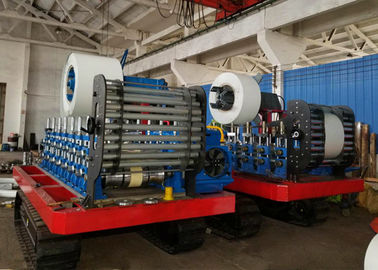

This green house cultivation gutter roll forming machine is capable of producing gutters for growing tomatoes, strawberries, cucumbers, peppers, etc.  It is consisted of two parts: top gutter rollforming mill and bottom caterpillar chassis. The rollforming stands are bolted on a steel plate as a cassette, which can be easily mount and remove from the chassis. With the caterpillar chassis, this machine can move and work in the open field.

Most Important Components Included In A Mobile Cultivation Gutter Rollformer:

• Decoiler
• Roll Forming Mill
• HydraulicCutting Unit
• PLC Control System
• Hydraulic System
• Caterpillar Chassis

Main Technical Specifications

1. Material Length: 3500-4000mm

2. Material Width: 2000mm

3. Material Weght: 8500kgs

4. Decoiler: hydraulic decoiler, hydraulic loosening and tensioning the decoiler mandrel

5. Decoiler Loading Capacity: 4000kgs

6. Roll forming stands: 7-9 stations depend on the gutter profiles

7. Main Power: 7.5KW

8. Roller Material: 42Cr, chromed

9. Shaft Material: 40Cr, 75mm in diameter

10. Cutting Type: hydraulic cutting, cutting after roll forming

11. Cutting Blade Material: Cr12Mov

11. Caterpillar Chassis Drive Power: 11KW hydraulic motor

Application: cultivation gutter growing system for tomatoes, cucumbers, strawberries, peppers, etc.

For more machine information, please contact us.
