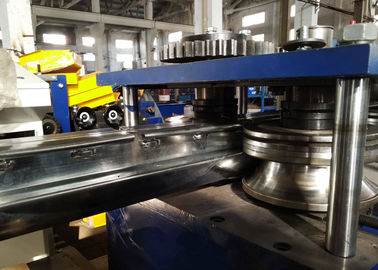

Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment

Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment

    • Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment
    • Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment
    • Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment
    • Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment
    • Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Main machine part is nude packing, electric control system and hydraulic station are wrapped with plastic film.
    Delivery Time: 75 to 90 days
    Payment Terms: 30% TT in advance; 70% TT after check and accept before delivery
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: Metal Fence Post Cold Roll Former For Dovetail Post Application: Used To Produce Metal Fence Posts
    Control System: PLC Control System Drive Motion: Chain Drive
    Main Power: 11kw * 2 Cutting Type: Servo Flying Cutoff
    High Light:

    cold roll forming machine

    ,

    roll forming equipment



    Mesh Fencing Post Cold Roll Former, Dovetail / Peach Shape Posts Roll Forming Equipment



    Description

    Metal mesh fence post looks like a swallow tail, also is named as dovetail post. It is used as the upright post for metal mesh fencing system. This roll forming machine is a continuous production line for producing dovetail shape fence posts.





    Main Components Included In A Steel Fencing Post Production Line

    1. Decoiler

    2. 7-Roller Leveller

    3. High Speed Power Press

    4. Roll Forming Mill

    5. Chain Drive System

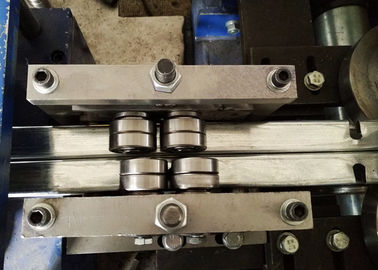

    6. Straightener

    7. Clamping And Bulging System

    8. Cutting System

    9. PLC Control System

    10. Hydraulic System

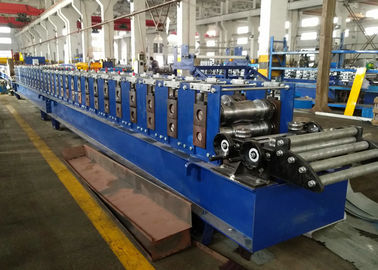

    		 Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment





    Technical Specifications

    • Peach Post Sizes: 50 x 70mm, 70 x 100mm
    • Material Thickness: 1.2mm to 1.5mm
    • Roller Stations: 30 stations
    • Forming Power: 11kw * 2
    • Roll Forming Speed: 12-15m/min
    • Hydraulic Power: 5.5kw
    • Drive Motion: chain drive
    • Control System: PLC control system
    • Decoiler Capacity: 3000kgs
    • Punching: high speed power press
    • ​Cutting Type: hydraulic cutting, stop to cut type
    • Roller Material: GCr15, chromed
    • Shaft Material: 40Cr, 75mm in diameter
    • Cutting Blade Material: Cr12Mov

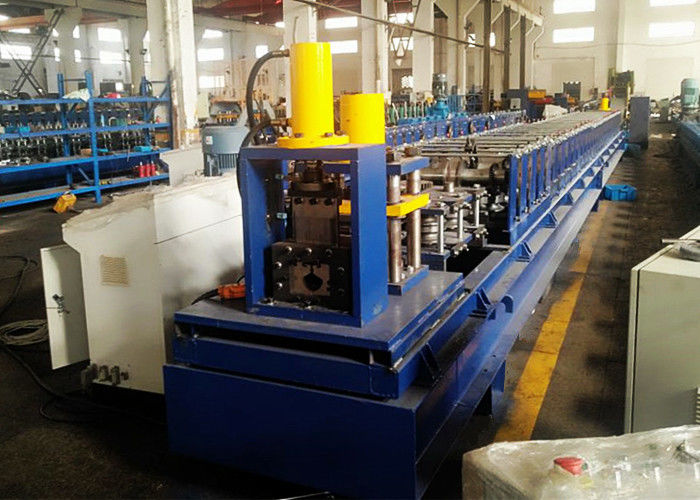

    		 Mesh Fencing Post Cold Roll Former , Dovetail / Peach Shape Posts Roll Forming Equipment

    ​

    For more machine details, please contact us.
