Galvanized Steel Scaffold Plank Roll Forming Machine With Gauge Adjust Device

Product Details:

Place of Origin:	CHINA
Brand Name:	BELIEVE INDUSTRY COMPANY
Certification:	CE
Model Number:	BELI-SCAFFOLD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	According to customers' requirement
Packaging Details:	Main roll forming mill is nude packing and fastened inside of the container, electric and hydraulic parts are wrapped with plastic film.
Delivery Time:	60 to 90 days
Payment Terms:	30% TT in advance, 70% after machine check and accept before shipment
Supply Ability:	45 sets per quarter

Contact Now

Detailed Product Description

Other Name:	Scaffold Deck Roll Forming Machine	Control System:	PLC Control System
Forming Speed:	15-20m/min	Drive System:	Electrically Gear Box Drive
Power Supply:	380V, 50Hz, 3Phase	Cutting System:	Flying Cutoff

Galvanized Steel Scaffold Plank Roll Forming Machine With Gauge Adjust Device

BELIEVE INDUSTRY COMPANY designs and manufactures metal roll forming machines for various functions. This machine is made for producing steel scaffold walk board. The material can be roll formed are hot rolled steel coils, cold rolled steel coils and galvanized steel coils with the 1.0-3.0mm thickness.

Main Parts Included In A Scaffold Plank Rollforming Line

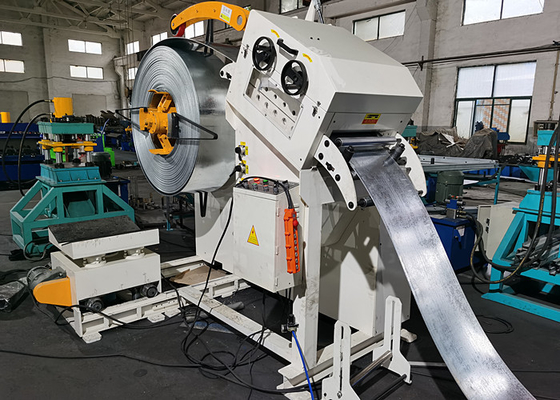

Integrated Decoiler And Levelling Unit

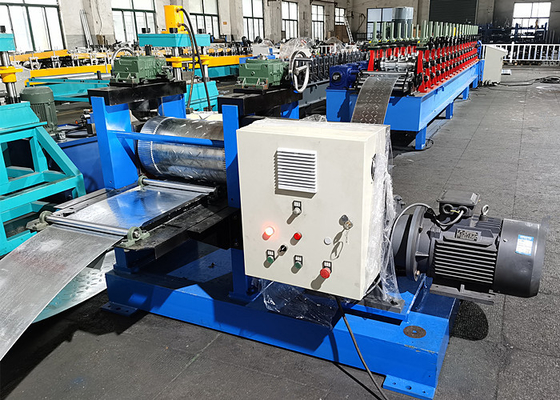

Embossing Unit

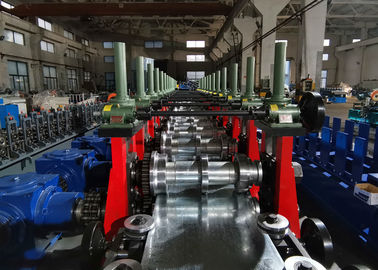

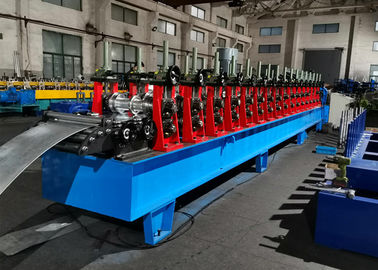

Roll Forming Mill
Straightener

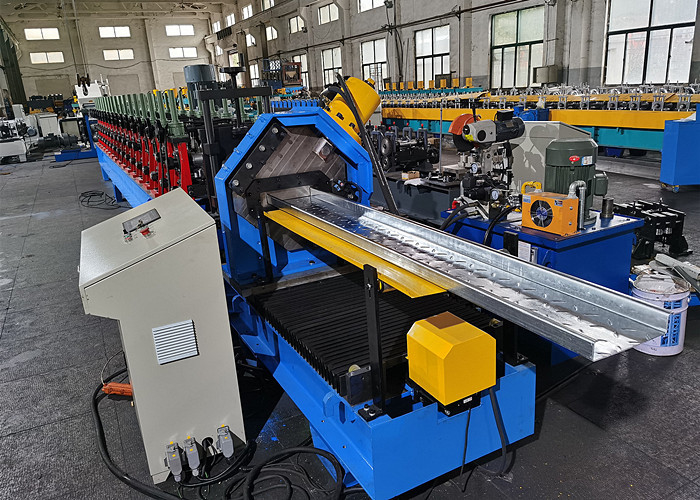

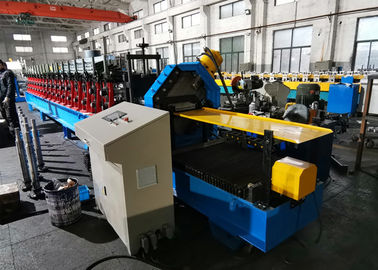

Servo Flying Cutoff
Runout Table
Electric Control System
Hydraulic System
Drive System
Manual Gauge Adjust System

Machine Features

Machine is of great strength with H beam steel welded machine base and cast iron roller stands
Machine base and roller stands are processed by milling machine for good smooth of the surface
Machine runs stable with gear box drive system
All bearings, electronic elements are selected from famous brands
Continuous working of whole line from decoiling to cutting(flying cutoff, no need stop to cut)
Equipped with gauge adjust device, easy to adjust the gap between rollers

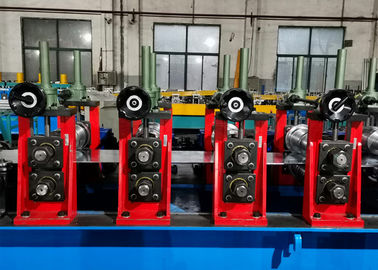

Manual Gauge Adjust Device

Gauge adjust device is used to adjust the gap between top and bottom rollers according to material thickness.

Each group of roll forming stands is equipped with gauge adjust device. Users rotate the handwheel can easily lift and lower the blocks, and the ruler(calculator) will display the adjustment.
