| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY COMPANY |
| Certification: | CE |
| Model Number: | BELI-600; BELI-720; BELI-760 |
| Price: | As Per Customers' Requirement |
|---|---|
| Packaging Details: | Main machine is nude packing inside of the container with steel wire fastened; electric and hydraulic parts are wrapped with plastic film. |
| Delivery Time: | 50 to 60 days |
| Payment Terms: | 30% TT in advance; 70% TT after machine check before delivery |
| Supply Ability: | 50 sets per quarter |
| Other Name: | Boltless Steel Roof Panel Roll Forming Machine | Application: | For Producing Screwless Metal Roofing Sheets |
|---|---|---|---|
| Machine Speed: | 15-20m/min | Raw Material Can Be Roll Formed: | Color Coated Steel Coils; GI Coils |
| Main Power: | 5.5kw For Roll Forming | Power Supply: | 380V/415V; 50Hz/60Hz |
Screwless Roof Panel Roll Forming Machine, Concealed Fix Roofing Sheet Roll Forming Line
Description
Concealed fix roofing sheet is also known as screwless roof panel or boltless roof panel. Edge of each roof panel is seamed together with a manual or automatic seam machine without screws or bolts to fix. Thus, it has the advantage of supreme watertightness.
Working process of concealed fix roofing sheet production line is steel coil unwinding, material infeeding, roll forming and cutting. Material can be roll formed are 0.6-0.8mm thick GI/GL/PPGI/PPGL coils with the width of 500mm, 600mm, 914mm, 1000mm or 1200mm width according to different profiles.
Profile Drawings Of Screwless Roof Panels
|
No. |
Item |
Specifications |
Profile Drawing |
|
1. |
Model |
YX-51-380-760 |
|
|
2. |
Effective Width (mm) |
760 |
|
|
3. |
Feeding Width (mm) |
1000 |
|
|
4. |
Raw Material |
GI/GL/PPGI/PPGL |
|
|
5. |
Material Thickness |
0.6mm, 0.8mm, 1.0mm |
M/C of A Whole Concealed Fix Roofing Rollforming Line
5 Ton Manual Uncoiler / 5Ton Automatic Uncoiler

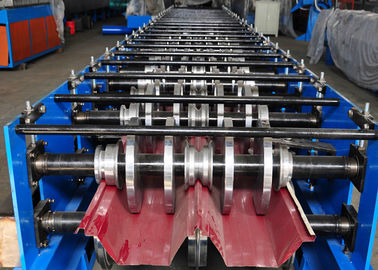

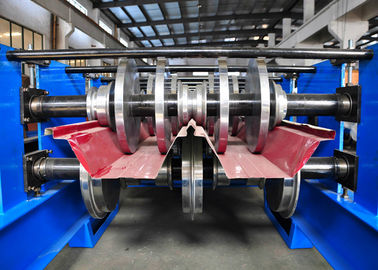

Roll Forming Machine

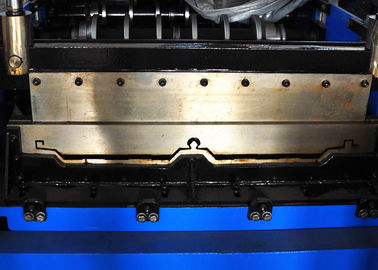

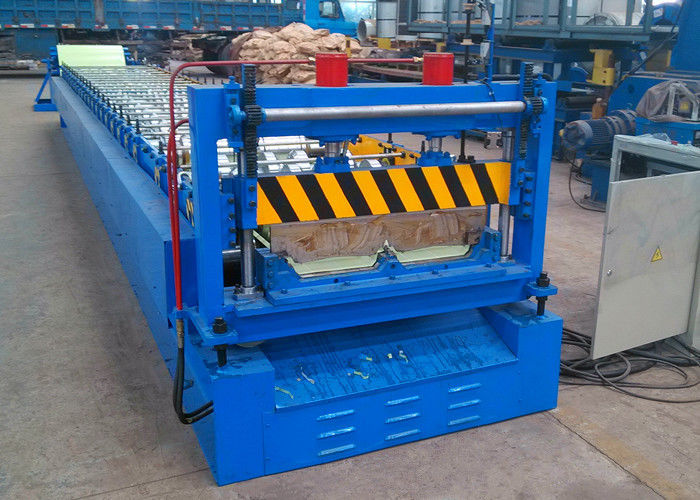

Cutoff Unit
Receiving Tables
Automatic Seaming Machine
For more machine details, please contact us.
