6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment

6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment

    • 6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment
    • 6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment
    • 6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment
    • 6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment
  • 6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Nude Packing
    Delivery Time: 60 days
    Payment Terms: 30% TT as advance payment, 70% TT before shipment
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Other Name: Steel Tile Roof Panel Roll Forming Machine Machine Features: High Productivity With Servo Flying Cutoff
    Line Speed: 6-8m/min Drive Motion: Chain Drive
    Control System: PLC Control SYstem Power Supply: 380V, 50Hz, 3Ph
    High Light:

    cold roll forming machine

    ,

    roll forming equipment

    6-8m/min Metal Tile Roll Forming Machine With Servo Flying Punching And Cutting



      Brief Description

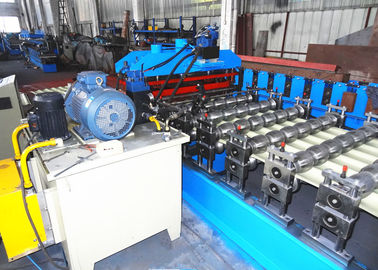

    Metal tile roll forming machine is used to produce tile shape roof panels with 0.4-0.6mm thick color steel coils and galvanized steel coils. As usual, line speed of a metal tile roll forming line is around 3-5m/min including roll forming, punching and cutting.

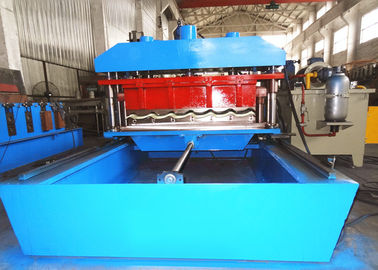

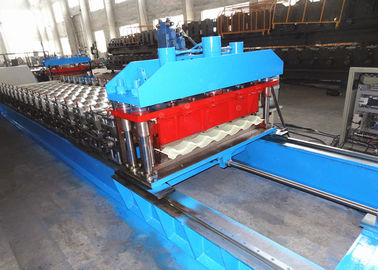

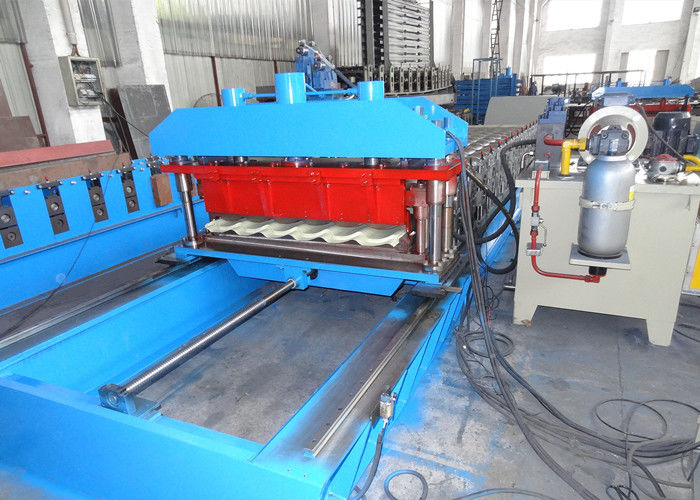

    Believe Industry has improved the machine design for higher productivity. Punch unit and cutting unit are assembled on the common base and can move through the guide track. With a flying cutoff, whole line can keep continuous running without need to stopping for punching and cutting. Thus, line speed can reach up to 6-8m/min.



    6 - 8 M/Min CNC Roll Forming Machine , Metal Tile Roll Forming Equipment



    Metal Roof Tile Rollforming Line Components

    • 5Ton Hydraulic Decoiler
    • Metal Roof Tile Rollformer
    • Servo Punching And Cutting Device
    • Run Out Tables
    • Electric Control Cabinet
    • Hydraulic Station With Accumulator And Air Cooling



      Main Technical Specification



     Material Specification
    1.  Coil Material  GI coils, PPGI coils
    2.  Material Thickness  0.4-0.6mm
    3.  Material Width  914mm, 1000mm, 1219mm, 1220mm, 1250mm according to clients' requirement

     Machine Specification
    1.  Machine Dimension  10m x 2m x 1.8m (L x W x H)
    2.  Machine Weight  8-10tons according to final machine design
    3.  Roller Stations  18-24 stations depend on roof tile profiles
    4.  Main Power  7.5kw - 11kw
    5.  Control System  PLC control system
    6.  Drive  electrically driven via chain and sprocket
    7.  Punching And Cutting  hydraulically powered





    Believe Industry Company has different design of custom steel tile roof rollformer such as economic design, high speed design. Contact us for more machine details.
