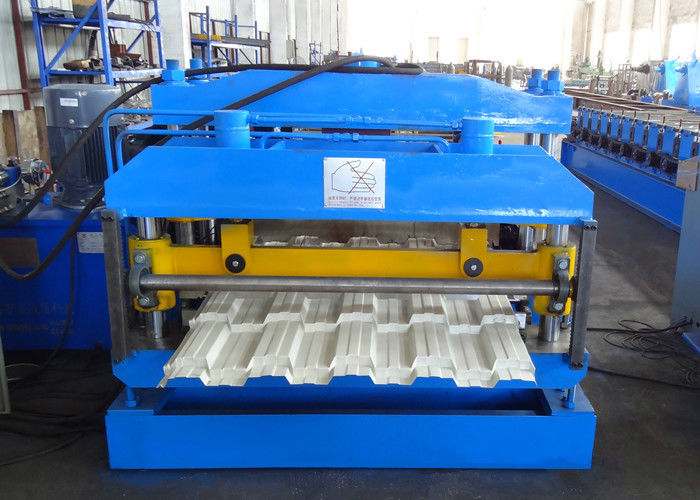

PPGI Steel Roof Tile Roll Forming Machine Line With PLC Control System

PPGI Steel Roof Tile Roll Forming Machine Line With PLC Control System

  Brief Description
This machine is able to roll form color coated steel coils and galvanized steel coils with the thickness of 0.3mm to 0.7mm. We have three designs of step tile roll former: economical design, high speed machine design, super high speed machine design. And this machine is an economical design with line speed of 3-4m/min.

Machine Features

• With Panasonic PLC control system.
• Electrically driven via chain and sprocket.
• H beam steel welded roll former base with 18mm thick steel plate welded on the base as main structure.
• Unpowered manually pre-cutting device before roll forming for easy cutting coils when finished producing or change coils.
• Hydraulically powered punching step tiles and cutting to length.
• Tolerance of steps is ±0.5mm and length tolerance is ±2mm.
• Single mandrel decoiler / uncoiler with manually adjust.

Specifications

  Step Tile Rollformer Line Layout And Main Components


>   5Ton Decoiler.................................................................................................................................1 unit
>   Feeding Guide...............................................................................................................................1 unit
>   Roll Forming Unit............................................................................................................................1 unit
>   Hydraulic Punch Press...................................................................................................................1 unit
>   Hydraulic Cutoff Device..................................................................................................................1 unit
>   Final Product Support Table...........................................................................................................2 units
>   PLC Control System........................................................................................................................1 unit
>   Hydraulic System.............................................................................................................................1 unit


End Product For Reference


New Punching Design
The design of punching and cutting in this steel roof tile forming machine is an old one, and now we have improved the design. In the new one, punching mold and cutting mold are assembled on the common base as a integration while work separately.


⇒


Believe Industry Company keeps improving our technology in cold roll forming machine designing and manufacturing in order to meet different requirements of our clients.

Please contact us with your profile drawing and personal requirement.
