Place of Origin: | Wuxi, China |
Brand Name: | BELIEVE INDUSTRY |
Certification: | CE |
Model Number: | BELI SERIES |
Price: | USD 30,000-45,000 per set |
---|---|
Packaging Details: | Main roof panel roll former is nude packing, electric and hydraulic parts are wrapped with plastic film |
Delivery Time: | 50 to 60 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 50 sets per month |
Other Name: | Steel Color Roof Tile Rollforming Machine | Application: | Use To Produce Tile-shape Roof Panels |
---|---|---|---|
Control System: | Panasonic PLC Control System | Voltage: | 380V / 50Hz / 3Ph |
After-sales Service: | Engineers Available To Service Overseas | Machine Warranty: | 24 Months |
High Light: | metal roofing roll former,profile roll forming machine |

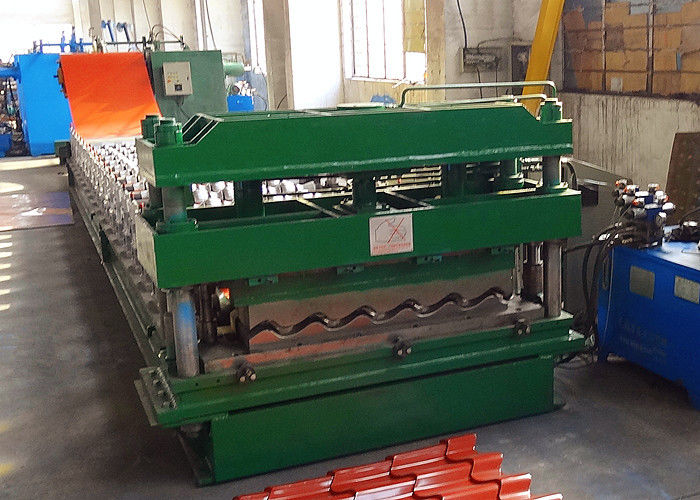

Color Coated Steel Tile Roof Panel Roll Forming Machine With 3D Cut End
Description
This steel roll forming machine is manufactured to produce tile shape roof panels. Material can be roll formed are 0.3mm to 0.5mm thick color steel coils and galvanized steel coils.
Line speed of this tile roof rollformer is approx 3-4m/min, Believe Industry Company also have high speed machine design with line speed up to 8m/min.

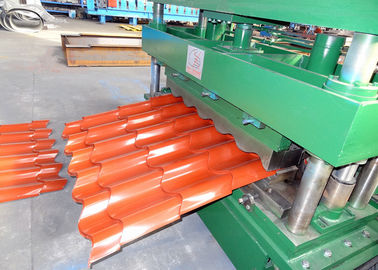

Work Flow

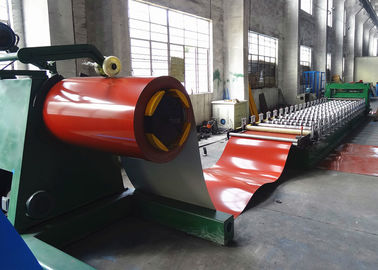

Uncoiling--->Entry Guiding--->roll forming--->pressing tile steps--->cutting--->steel tiles
Machine Components Of Steel Tile Rollforming Line
Main Technical Parameters
No. | Item | Technical Parameters |
1. | Applicable Material | GI coils, PPGI coils, GL coils, PPGL Coils |
2. | Material Thickness | 0.3-0.5mm |
3. | Material Width | 1219mm depend on profiles |
4. | Diameter of Shaft | 76mm, solid shafts |
5. | Material of Shaft | 40Cr go under heat treatment and with Chrome plated |
6. | Material of Rollers | No.45 steel with heat treatment and Chrome plated |
7. | Main Power | 7.5kw |
8. | Line Speed | 3-5m/min |
9. | Forming Stations | 18-24 stations |
10. | Cutting Type | Hydraulic cutting |
11. | Material of Cutting Blade | Cr12 Mov, HRC 58-62 |
12. | Hydraulic Power | 7.5kw |

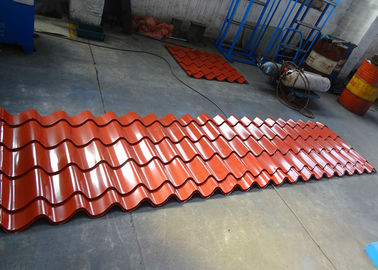

End Products For Reference
Galvanised Steel Tile Roof Panel
Color Coated Steel Tile Roof Panel
