Rafted Type CNC Roll Forming Machine For Custom Warehouse Pallet Racks

Rafted Type CNC Roll Forming Machine For Custom Warehouse Pallet Racks

Rafted Type CNC Roll Forming Machine For Custom Warehouse Pallet Racks

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Beli
Certification:	CE
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us For Best Price
Packaging Details:	Main machine part nude packing, PLC control system and hydraulic system are wrapped with plastic film.
Delivery Time:	45 days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/ Month

Contact Now

Detailed Product Description

Type:	Cold Roll Forming Machine	Condition:	New Machine
Warrenty:	24 Months	Voltage:	380V, 3Ph, 50Hz
After-sales Service:	Enigineers Available To Service Machine Overseas
High Light:	roll forming machine , roll forming equipment

Rafted Type Custom Pallet Racking Roll Forming Machine

Brief Description:

This roll forming machine is used to produce upright racks according to customer's profile and requirement. This machine employs rafted structure, roll forming stations can be wholly lifted as a raft, which is easily to change the roll forming of another profile of upright racks. This machine employs gear box transmission system, servo flying cutting device, high speed punching machine, which ensures the stable machine capacity at a high speed.

Main Components Of Pallet Racking Machine

1. 3Ton Hydraulic Decoiler		1 unit
2. High Speed Punching Machine		1 unit
3. Main Roll Forming Machine	a. Feeding Guide	1 unit
	b. Leveling Device
	c. Roll Forming Stations
	d. Straightening Device
	e. Hydraulic Cutting Device
4. Product Support Tables		1 unit
5. PLC Control System		1 unit
6. Hydraulic System		1 unit

Work Process Of Pallet Racking Machine

Decoiling--Punching--Material Leveling--Roll Forming--Product Straightening--Cutting

Main Machine Technical Parameters

1. Applicable Material: cold rolled steel coils

2. Material Thickness: 1.5-2.5mm

3. Main Motor Power: 18.5kw

4. Forming Stations: 22 stations

5. Forming Speed: 15m/min

6. Control System: PLC control system

7. Cutting Power: 4kw

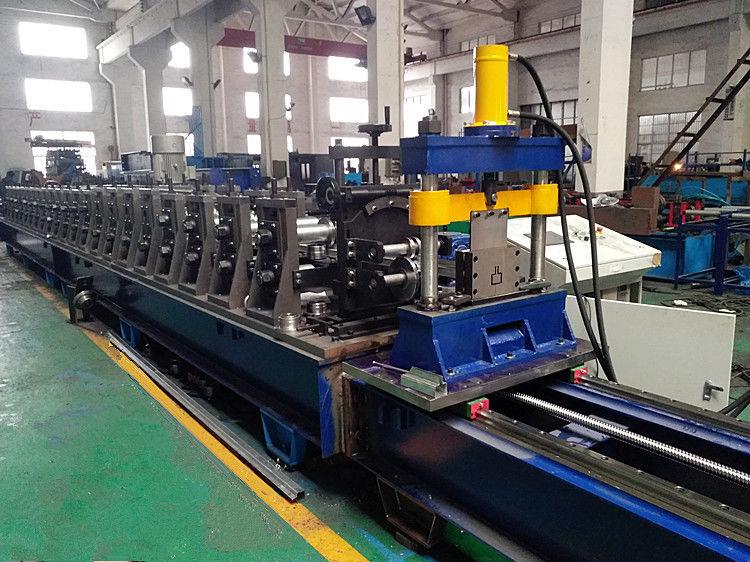

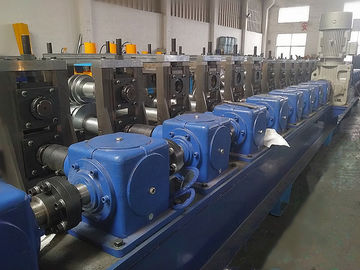

More Pictures Of Pallet Racking Roll Forming Machine

Rafted Type CNC Roll Forming Machine For Custom Warehouse Pallet Racks

Rafted Type CNC Roll Forming Machine For Custom Warehouse Pallet Racks

Believe Industry Company, engaged in offering customers with perfect metal forming solutions, please contact us for machine details.
