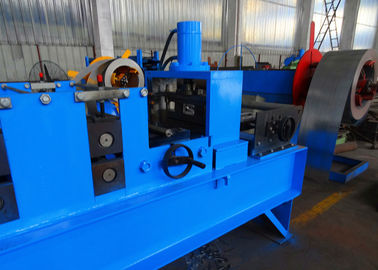

PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts

PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts

    • PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts
    • PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts
    • PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts
    • PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts
  • PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Main machine part nude packing, electric and hydraulic system covered with plastic film
    Delivery Time: 60 to 75 days
    Payment Terms: T/T, L/C
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: Metal Fence Post Cold Roll Former For Dovetail Post Application: Used To Produce Metal Fence Posts
    Control System: PLC Control System Drive Motion: Chain Drive
    Main Power: 11kw * 2 Cutting Type: Hydraulically Powered Cutting
    High Light:

    roll forming machine

    ,

    custom roll former

    Mesh Fencing Post Roll Forming Machine For Dovetail Shape / Peach Shape Posts



      Description

    This metal mesh fence post, looks like a swallow tail, also named as dovetail post. It is applied to the Dutch network of columns, with no chassis and to be directly embedded in the soil with embedded depth of 30-50cm. Main raw materials used to produce peach posts are galvanized steel coils and cold rolled steel coils with the thickness of 1.0mm to 1.5mm.



    Details Of Peach Shape Fence Post

    1. Size: 50 x 70 mm70 x 100 mm

    2. Raw Material: galvanized steel coils

    3. Material Thickness: 1.0-1.5mm

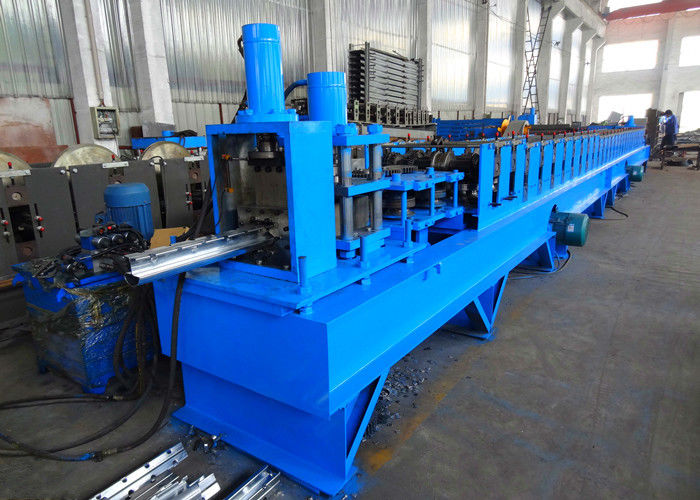

    PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts



      Working Process And Main Components Of Fence Post Rollforming Machine

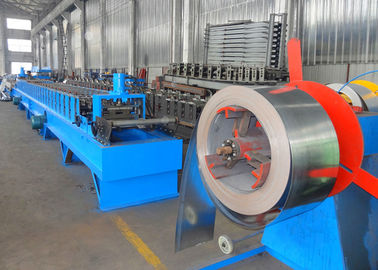

    This roll forming machine is a continuous production for producing dovetail shape fence post with whole line working process of uncoiling, material levelling, punching, roll forming, straightening, clamping and bulging, and cutting to length.



    No.  Machine Components Quantity  Description
    1.  3T Single Mandrel Uncoiler 1 set  Automatic uncoiler, max loading capacity is 3000kgs
    2.  7-Roller Levelling Device 1 set  Up 3 rollers and bottom 4 rollers for levelling
    3.  Pre-punching Unit 1 set  Punching slots for easy cutting after roll forming

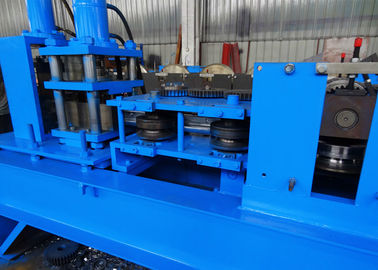

    4.  Roller Stations 1 set  Roll form the material to dovetail shape / peach shape
    5.  Straightener 1 set  For good straightness
    6.  Punching Unit 1 set  Punching holes for clamping
    7.  Hydraulic Cutting Device 1 set  Cut the formed posts into required length
    8.  Receiving Tables 1 set  Receiving products to avoid falling down
    9.  Electric Control Cabinet 1 set  PLC control system
    10.  Hydraulic Station 1 set  Offer power for punching and cutting


      Main Technical Parameters
    1. Materials: galvanized steel coils, cold rolled steel coils
    2. Material thickness: 1mm to 4mm
    3. Main motor power: 11kw * 2
    4. Forming speed: 10-15m/min
    5. Forming stations: 28 stations
    6. Control system: PLC control system
    7. Shaft diameters: 80mm
    8. Roller material: GCR15 bearing steel
    9. Hydraulic power: 7.5kw
    10. Cutting blade material: Cr12Mov



      Packing Details

    • A 40GP container is needed for loading whole line components.
    • Main roll forming machine is divided into 2 sections for loading.
    • Roll forming part, decoiler, receiving tables are nude packing and fastened inside of the container with steel wire.
    • Electric control cabinet and hydraulic station are wrapped with plastic film.

    PLC Controlled Custom Roll Forming Machine For Mesh Fence Dovetail / Peach Shape Posts



    For more machine information and technical specifications, please contact us!
