Filter Frame Custom Roll Forming Machine , 8 - 12 M/Min Steel Frame Roll Former

Filter Frame Custom Roll Forming Machine , 8 - 12 M/Min Steel Frame Roll Former

Filter Frame Custom Roll Forming Machine , 8 - 12 M/Min Steel Frame Roll Former

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Beli
Certification:	CE
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 38000-40000 / set
Packaging Details:	Nude Packing (roller surface covered plastic film)
Delivery Time:	45 days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/ Month

Contact Now

Detailed Product Description

After-sales Service:	Engineers Available To Service Machinery Overseas	Warranty:	18 Months
Voltage:	380V, 3 Phase, 50Hz	Type:	Cold Rolling Machine
Condition:	New
High Light:	roll forming equipment , custom roll former

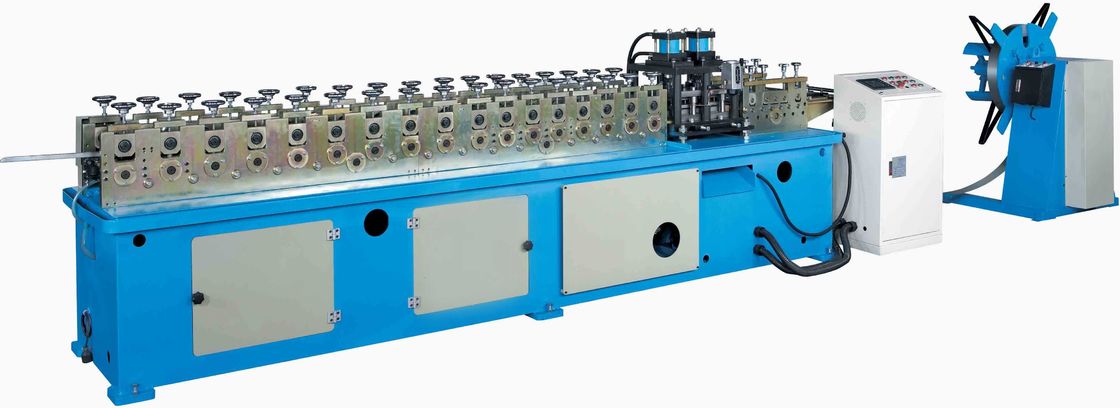

Filter Frame Roll Forming Machine

Description:

According to specific requirements of customers, we can manufacture pocket filter frame roll forming machines with different specifications. Main components of this machine include decoiler, roll former, cutter, hydraulic pump station, product table, and control cabinet, etc.


Technical Parameters - Filter Frame Roll Forming Machine
Raw Material	Carbon Steel, Galvanized Steel, Q235
Material Thickness	0.4-0.5mm
Material Width	Depend on specific profile
Diameter of Shaft	60mm
Material of Shaft	45# steel
Material of Rolls	45# steel Over quenching HRC 58-62°
Main Power	7.5KW
Forming Speed	8-12m/min
Forming Station	16 stations
Cutting Type	Hydraulic cutting
Cutting Blade	Cr12 Mov
